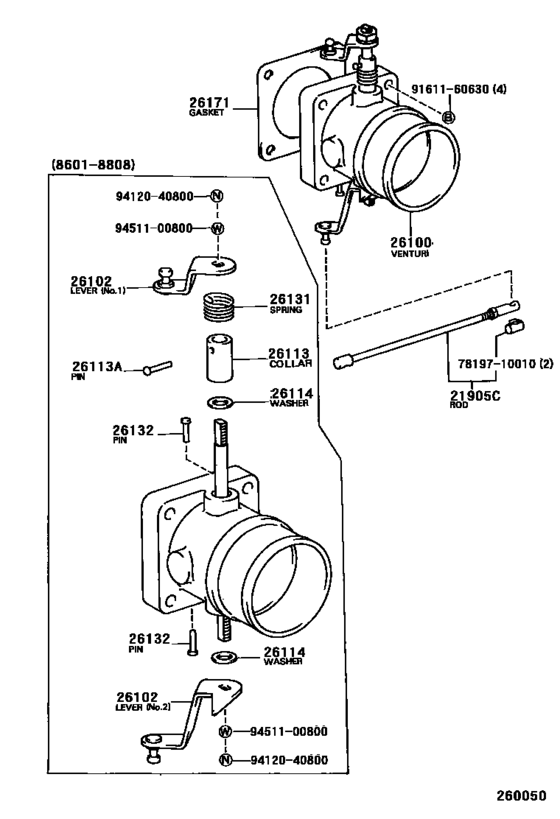

Venturi ([01.1986 - ] (8601- )) Diagram Toyota DYNA/ TOYOACE
- Year
- 1986 - 1995
- Sales region
- Japan
- Frame
- BU60
- grade
- N
- ENGINE
- B
- Model
- DYNA/ TOYOACE QUICK
- From
- 01.1986
- To
- 05.1995
- Gear Shift Type
- 5H
- No.of Doors
- 3D
- Vehicle Model
- DYN
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21905C
|
21905C
21905-57020 Rod, Accelerator Connecting(For Venturi)[01.1986 - 05.1995] B..BU60 |
21905-57020 |
US $29.27 |
||
|
26100
|
26100
26100-56100 Venturi Assy[01.1986 - 08.1988] B..BU60 |
26100-56100 |
US $177.63 |
||
|
26100
|
26100
26100-58070 Venturi Assy[08.1988 - 05.1995] B..BU60 |
26100-58070 |
US $173.26 |
||
|
26102
|
26102
26102-56100
Lever Sub-Assy, Throttle Shaft Adjusting
[01.1986 - 05.1988] B..BU60 NO.1 |
26102-56100 |
— | ||
|
26102
|
26102
26102-56101
Lever Sub-Assy, Throttle Shaft Adjusting
[01.1986 - 05.1988] B..BU60 NO.2 |
26102-56101 |
— | ||
|
26113
|
26113
26113-58041
Collar, Throttle Valve Shaft
[01.1986 - 08.1988] B..BU60 |
26113-58041 |
— | ||
|
26113A
|
26113A
26132-56011
Pin, Throttle Valve Shaft
[01.1986 - 08.1988] B..BU60 |
26132-56011 |
— | ||
|
26114
|
26114
26114-76010 Washer, Throttle Valve Shaft Adjusting[01.1986 - 05.1988] B..BU60 厚さ＝０．１,T=0.1 |
26114-76010 |
US $1.60 |
||
|
26114
|
26114
26115-76010 Washer, Throttle Valve Shaft Adjusting[01.1986 - 05.1988] B..BU60 厚さ＝０．２,T=0.2 |
26115-76010 |
US $1.60 |
||
|
26114
|
26114
26116-76010 Washer, Throttle Valve Shaft Adjusting[01.1986 - 05.1988] B..BU60 厚さ＝０．５,T=0.5 |
26116-76010 |
US $1.60 |
||
|
26131
|
26131
26131-56100
Spring, Return
[01.1986 - 08.1988] B..BU60 |
26131-56100 |
— | ||
|
26132
|
26132
26132-56010
Pin, Throttle Valve Shaft
[01.1986 - 08.1988] B..BU60 |
26132-56010 |
— | ||
|
26171
|
26171
26171-56020
Gasket, Venturi
[01.1986 - 08.1988] B..BU60 |
26171-56020 |
— | ||
| replacement | |||||
|
26171
|
26171
26171-56050
Gasket, Venturi
[01.1986 - 08.1988] B..BU60 |
26171-56050 |
— | ||
|
26171
|
26171
26171-56050
Gasket, Venturi
[08.1988 - 05.1995] B..BU60 |
26171-56050 |
— | ||
|
7819710010
|
7819710010
78197-10010 Clip(For Throttle Link Connecting Rod) |
78197-10010 |
from US $1.22 |
||
|
9161160630
|
9161160630
91611-60630 BOLT |
91611-60630 |
US $1.31 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.61 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
US $1.79 |
||
