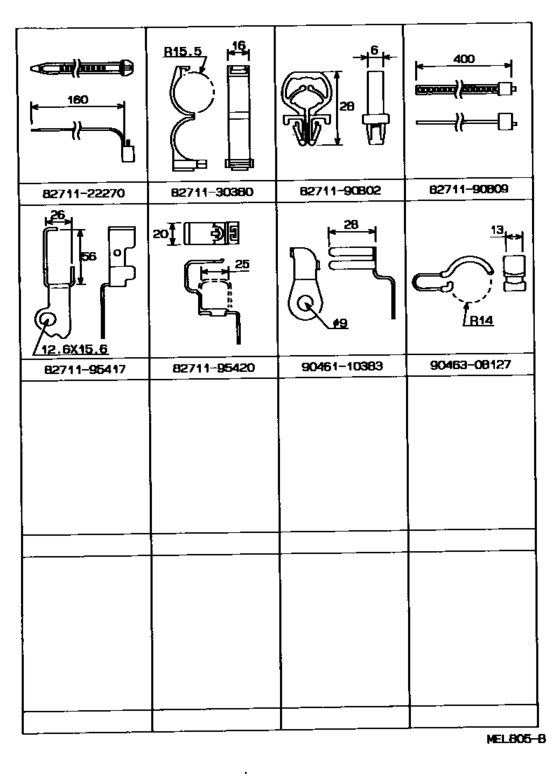

Wiring & Clamp ([01.1986 - ] (8601- )) Diagram Toyota DYNA/ TOYOACE
- Year
- 1986 - 1995
- Sales region
- Japan
- Frame
- BU60
- grade
- N
- ENGINE
- B
- Model
- DYNA/ TOYOACE QUICK
- From
- 01.1986
- To
- 05.1995
- Gear Shift Type
- 5H
- No.of Doors
- 3D
- Vehicle Model
- DYN
- Building Condition
- CBU
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
8271190B02
|
8271190B02
82711-90B02 Wire, Fuse To Fuse(for Combustion Heater) |
82711-90B02 |
US $3.64 |
||
|
8271190B09
|
8271190B09
82711-90B09 Wire, Fuse To Fuse(for Combustion Heater) |
82711-90B09 |
US $8.74 |
||
|
8271122270
|
8271122270
82711-22270 Clamp(For Transfer Vacuum Tube) |
82711-22270 |
US $3.58 |
||
|
8271130380
|
8271130380
82711-30380
Wire, Fuse To Fuse(for Combustion Heater)
|
82711-30380 |
— | ||
|
8271195417
|
8271195417
82711-95417 Wire, Fuse To Fuse(for Combustion Heater) |
82711-95417 |
US $5.39 |
||
|
8271195420
|
8271195420
82711-95420 Wire, Fuse To Fuse(for Combustion Heater) |
82711-95420 |
US $17.18 |
||
|
9046110383
|
9046110383
90461-10383 New Genuine Part |
90461-10383 |
US $7.28 |
||
|
9046308127
|
9046308127
90463-08127
New Genuine Part
|
90463-08127 |
— |
