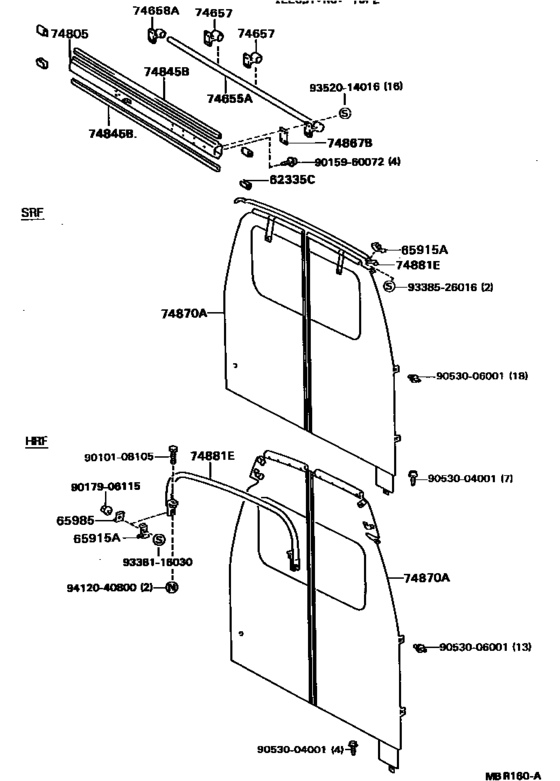

Separator & Separator Curtain ([08.1988 - ] (8808- )BU87..V ; (8808- )HRF,SRF,TW1,TW2, TW4) Diagram Toyota DYNA/ TOYOACE
- Year
- 1990 - 1995
- Sales region
- Japan
- Frame
- BU66
- body
- TR
- ENGINE
- 14B
- Model
- DYNA/TOYOACE
- From
- 08.1990
- To
- 05.1995
- Gear Shift Type
- 5F
- Seating Capacity
- 06S
- Vehicle Model
- TOY
- Deck,cab
- TW4
- Loading Capacity
- 175
- Fuel Induction
- DSL
- Building Condition
- CBU
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62335C
|
62335C
62335-92600-04 Cover, Rear Door Opening Trim[08.1988 - 09.1991] BU60,66,87,88..TOY..06S BLUE,TRIM8# |
62335-92600-04 |
US $4.95 |
||
|
62335C
|
62335C
62335-92600-B0 Cover, Rear Door Opening Trim[09.1991 - 05.1995] BU60,66,70,73,87,88..HRF,SRF,TW1,TW2,TW4 GRAY,TRIM1# |
62335-92600-B0 |
US $4.22 |
||
|
74805
|
74805
74805-95404 Separator Sub-Assy[08.1988 - 05.1995] BU60,66,87..06S..(CBU,IV3) |
74805-95404 |
US $75.71 |
||
|
74845B
|
74845B
74845-95400-04 Ornament, Front Seat Back Panel, C[08.1988 - 09.1991] BU60,66,87..TOY..06S BLUE,TRIM8# |
74845-95400-04 |
US $38.44 |
||
|
74845B
|
74845B
74845-95400-B0 Ornament, Front Seat Back Panel, C[09.1991 - 05.1995] BU73..06S..20T;BU60,66,70,87..HRF,SRF,TW1,TW2,TW4 GRAY,TRIM1# |
74845-95400-B0 |
US $33.05 |
||
|
9010108105
|
9010108105
90101-08105
New Genuine Part
|
90101-08105 |
— | ||
|
9015960072
|
9015960072
90159-60072 SCREW |
90159-60072 |
US $1.25 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $2.15 |
||
|
9053004001
|
9053004001
90530-04001 Hook, Male (For Separate Curtain Set Hook) |
90530-04001 |
US $2.62 |
||
|
9053006001
|
9053006001
90530-06001 Fastener, Hook |
90530-06001 |
US $1.97 |
||
|
9338116030
|
9338116030
93381-16030
New Genuine Part
|
93381-16030 |
— | ||
|
9338526016
|
9338526016
93385-26016 New Genuine Part |
93385-26016 |
US $1.16 |
||
|
9352014016
|
9352014016
93520-14016 SCREWTAPPING |
93520-14016 |
US $1.31 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.61 |
