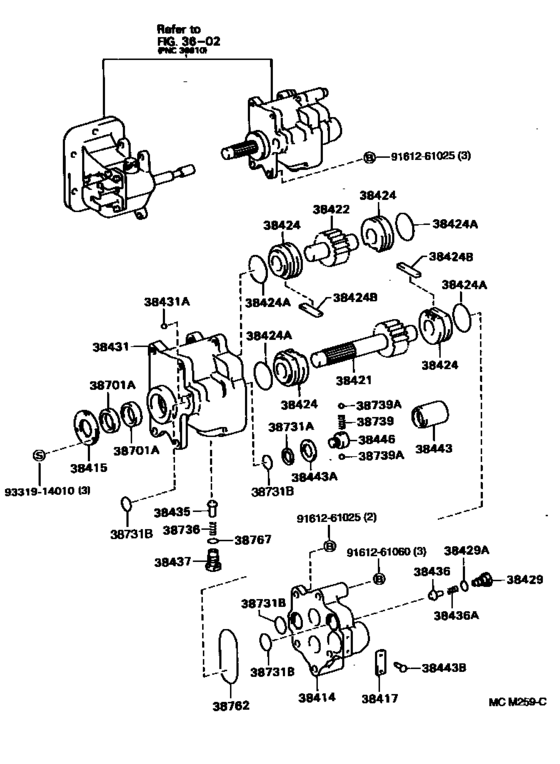

Power Take-Off Oil Pump ([09.1991 - ] (9109- )BU67..DMP..5F ; (9109- )BU66,72..D M2,DM4,DM5) Diagram Toyota DYNA/ TOYOACE
- Year
- 1988 - 1995
- Sales region
- Japan
- Frame
- BU66
- body
- DMP
- ENGINE
- 14B
- Model
- DYNA/TOYOACE
- From
- 08.1988
- To
- 05.1995
- Gear Shift Type
- 5F
- Seating Capacity
- 03S
- Vehicle Model
- DYN
- Deck,cab
- DM2
- Loading Capacity
- 20T
- Fuel Induction
- DSL
- Building Condition
- CBU
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
38414
|
38414
38414-36010 Cover, Power Oil Pump[09.1991 - 05.1995] BU67..DMP..5F;BU66,72..DM2,DM4,DM5 |
38414-36010 |
US $115.02 |
||
|
38415
|
38415
38415-96300 Cover, Power Oil Pump Seal[08.1988 - 05.1995] BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
38415-96300 |
US $11.79 |
||
|
38417
|
38417
38417-36010 Plate, Power Oil Pump Name[09.1991 - 05.1995] BU67..DMP..5F;BU66,72..DM2,DM4,DM5 |
38417-36010 |
US $3.64 |
||
|
38421
|
38421
38421-36010 Gear, Power Oil Pump Drive[09.1991 - 05.1995] BU67..DMP..5F;BU66,72..DM2,DM4,DM5 |
38421-36010 |
US $208.21 |
||
|
38421
|
38421
38421-96300 Gear, Power Oil Pump Drive[08.1988 - 09.1991] BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
38421-96300 |
US $180.54 |
||
|
38422
|
38422
38422-36010 Gear, Power Oil Pump Follow[09.1991 - 05.1995] BU67..DMP..5F;BU66,72..DM2,DM4,DM5 |
38422-36010 |
US $168.90 |
||
|
38422
|
38422
38422-96300 Gear, Power Oil Pump Follow[08.1988 - 09.1991] BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
38422-96300 |
US $138.32 |
||
|
38424
|
38424
38424-36010 Bush, Power Oil Pump Inner[09.1991 - 05.1995] BU67..DMP..5F;BU66,72..DM2,DM4,DM5 |
38424-36010 |
US $101.92 |
||
|
38424
|
38424
38424-96300 Bush, Power Oil Pump Inner[08.1988 - 09.1991] BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
38424-96300 |
US $88.82 |
||
|
38424A
|
38424A
90301-33008 Ring, O (For Power Oil Pump)[09.1991 - 05.1995] BU67..DMP..5F;BU66,72..DM2,DM4,DM5 |
90301-33008 |
US $3.99 |
||
|
38424B
|
38424B
90282-03012 Key, Straight (For Secondary Regulator Valve)[09.1991 - 05.1995] BU67..DMP..5F;BU66,72..DM2,DM4,DM5 |
90282-03012 |
US $0.87 |
||
|
38429
|
38429
38429-36010 Plug, Power Control Check Valve No.2[09.1991 - 05.1995] BU67..DMP..5F;BU66,72..DM2,DM4,DM5 |
38429-36010 |
US $5.39 |
||
|
38429A
|
38429A
96711-19010 Ring, O(For Oil Level Gage Guide)[09.1991 - 05.1995] BU67..DMP..5F;BU66,72..DM2,DM4,DM5 |
96711-19010 |
from US $2.26 |
||
|
38431
|
38431
38431-36010 Body, Power Control Valve[09.1991 - 05.1995] BU67..DMP..5F;BU66,72..DM2,DM4,DM5 |
38431-36010 |
US $251.89 |
||
|
38431A
|
38431A
90360-02001 Ball (For Power Control Valve)[09.1991 - 05.1995] BU67..DMP..5F;BU66,72..DM2,DM4,DM5 |
90360-02001 |
US $2.04 |
||
|
38435
|
38435
38435-96300 Valve, Power Control Check, No.1[08.1988 - 05.1995] BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
38435-96300 |
US $36.69 |
||
|
38436
|
38436
38436-36010 Valve, Power Control Check, No.2[09.1991 - 05.1995] BU67..DMP..5F;BU66,72..DM2,DM4,DM5 |
38436-36010 |
US $2.33 |
||
|
38436
|
38436
38436-96301 Valve, Power Control Check, No.2[08.1988 - 09.1991] BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
38436-96301 |
US $26.35 |
||
|
38436A
|
38436A
90501-06075 Spring, Compression (For Power Control Check No.2 Valve)[09.1991 - 05.1995] BU67..DMP..5F;BU66,72..DM2,DM4,DM5 |
90501-06075 |
US $1.89 |
||
|
38437
|
38437
38437-36010 Plug, Power Control Check Valve[09.1991 - 05.1995] BU67..DMP..5F;BU66,72..DM2,DM4,DM5 |
38437-36010 |
US $5.39 |
||
|
38437
|
38437
38437-96300 Plug, Power Control Check Valve[08.1988 - 09.1991] BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
38437-96300 |
US $29.27 |
||
|
38443
|
38443
38443-96300 Sleeve, Power Control Valve Plunger[09.1991 - 05.1995] BU67..DMP..5F;BU66,72..DM2,DM4,DM5 |
38443-96300 |
US $35.38 |
||
|
38443A
|
38443A
90201-19012 Washer, Plate (For Power Control Valve Plunger Sleeve)[09.1991 - 05.1995] BU67..DMP..5F;BU66,72..DM2,DM4,DM5 |
90201-19012 |
US $3.20 |
||
|
38443B
|
38443B
90260-02003 Rivet, Round (For Power Control Valve Plunger Sleeve)[09.1991 - 05.1995] BU67..DMP..5F;BU66,72..DM2,DM4,DM5 |
90260-02003 |
US $1.89 |
||
|
38446
|
38446
38446-96300 Stopper, Power Control Detention Spring[08.1988 - 05.1995] BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
38446-96300 |
US $28.25 |
||
|
38701A
|
38701A
90311-22004 Seal, Oil (For Power Take-Off)[08.1988 - 05.1995] BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 フロント |
90311-22004 |
US $2.91 |
||
|
38701A
|
38701A
90311-22008 Seal, Oil (For Oil Pump Body)[08.1988 - 05.1995] BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 リヤ |
90311-22008 |
US $2.91 |
||
|
38731A
|
38731A
90562-18005 Ring, O (For Plunger No.1)[09.1991 - 05.1995] BU67..DMP..5F;BU66,72..DM2,DM4,DM5 |
90562-18005 |
US $1.75 |
||
|
38731B
|
38731B
90301-17011 Ring, O(For Clutch Release Bellcrank)[09.1991 - 05.1995] BU67..DMP..5F;BU66,72..DM2,DM4,DM5 OD=2.4 |
90301-17011 |
US $5.73 |
||
|
38731B
|
38731B
96711-24018 Ring, O[08.1988 - 09.1991] BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
96711-24018 |
from US $2.22 |
||
|
38731B
|
38731B
96711-24021 Ring, O (For Front Power Take-Off Shaft)[09.1991 - 05.1995] BU67..DMP..5F;BU66,72..DM2,DM4,DM5 OD=25.6 |
96711-24021 |
US $3.44 |
||
|
38736
|
38736
90501-04017 Spring, Check Valve[08.1988 - 05.1995] BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
90501-04017 |
US $6.12 |
||
|
38739
|
38739
90501-08069 Spring, Plunger Neutral Indicating Ball[08.1988 - 05.1995] BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
90501-08069 |
US $1.89 |
||
|
38739A
|
38739A
90360-05004 Ball, Plunger Neutral Indicating[08.1988 - 05.1995] BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
90360-05004 |
US $1.89 |
||
|
38762
|
38762
96711-31080 Ring, O (For Oil Pump Inner Bush)[08.1988 - 05.1995] BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
96711-31080 |
from US $4.31 |
||
|
38767
|
38767
90301-10005 Ring, O (For Check Valve Spring)[08.1988 - 05.1995] BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
90301-10005 |
US $3.20 |
||
|
9161261025
|
9161261025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $0.96 |
||
|
9161261060
|
9161261060
91612-61060 Bolt(for Clutch Release Cylinder Setting) |
91612-61060 |
US $2.15 |
||
|
9331914010
|
9331914010
93319-14010 SCREW |
93319-14010 |
from US $0.90 |
