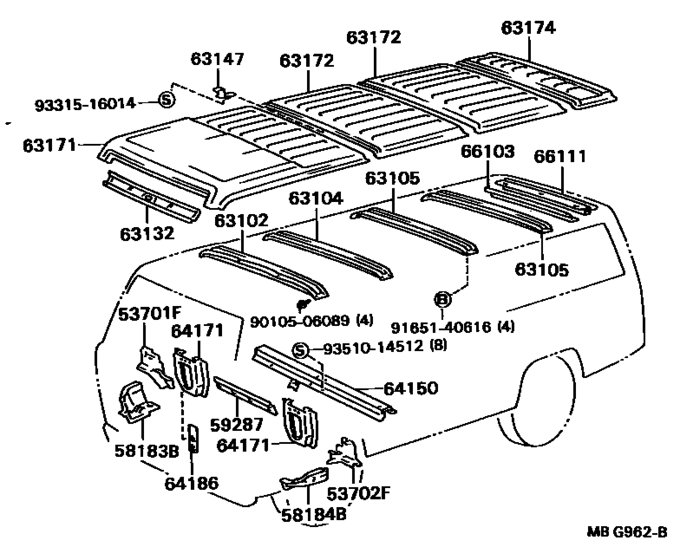

Roof Panel & Back Panel ([09.1984 - ] (8409- )BU70) Diagram Toyota DYNA/ TOYOACE
- Year
- 1984 - 1987
- Sales region
- Europe
- Frame
- BU70
- body
- BUS
- ENGINE
- B
- DESTINATION
- GEN
- From
- 09.1984
- To
- 08.1987
- Gear Shift Type
- 5F
- Driver's Position
- LHD
- Building Condition
- CBU
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53701F
|
53701F
53703-92604
Apron Sub-Assy, Front Fender, No.2 Rh
[09.1984 - 08.1987] BU70;BU60..TW1 |
53703-92604 |
— | ||
|
53702F
|
53702F
53704-92604
Apron Sub-Assy, Front Fender, No.2 Lh
[09.1984 - 08.1987] BU70;BU60..TW1 |
53704-92604 |
— | ||
|
58183B
|
58183B
58183-95402 Reinforcement, Rear Mounting, Rh[09.1984 - 08.1987] BU6#,70,8# |
58183-95402 |
US $55.62 |
||
| replacement | |||||
|
58183B
|
58183B
58183-95405 Reinforcement, Rear Mounting, Rh[09.1984 - 08.1987] BU6#,70,8# |
58183-95405 |
US $55.47 |
||
|
58184B
|
58184B
58184-95401 Reinforcement, Rear Mounting, Lh[09.1984 - 08.1987] BU6#,70,8# |
58184-95401 |
US $55.62 |
||
| replacement | |||||
|
58184B
|
58184B
58184-95404 Reinforcement, Rear Mounting, Lh[09.1984 - 08.1987] BU6#,70,8# |
58184-95404 |
US $55.47 |
||
|
59287
|
59287
59287-92602 Base, Transmission Cover, Center[09.1984 - 08.1987] BU70;BU60..TW1 |
59287-92602 |
US $77.17 |
||
|
63102
|
63102
63021-92604 Reinforcement Sub-Assy, Roof Panel, Front[09.1984 - 08.1987] BU70 |
63021-92604 |
US $99.01 |
||
|
63104
|
63104
63301-92605 Reinforcement Sub-Assy, Roof Panel, Center[09.1984 - 08.1987] BU70 |
63301-92605 |
US $149.97 |
||
|
63105
|
63105
63322-92605 Reinforcement Sub-Assy, Roof Panel, Rear[09.1984 - 08.1987] BU70 |
63322-92605 |
US $91.73 |
||
|
63132
|
63132
63132-95420 Panel Sub-Assy, Windshield Header[09.1984 - 03.1986] BU6#,70,80,81,82..(BUS,DMP,TR)..(CBU,IV3) W/SUN VISOR=ASSISTANT & *RV |
63132-95420 |
US $88.82 |
||
| replacement | |||||
|
63132
|
63132
63132-37010 Panel Sub-Assy, Windshield Header[09.1984 - 03.1986] BU6#,70,80,81,82..(BUS,DMP,TR)..(CBU,IV3) W/SUN VISOR=ASSISTANT & *RV |
63132-37010 |
US $90.27 |
||
|
63147
|
63147
63201-92605 Bracket, Roof Panel Reinforcement[09.1984 - 08.1987] BU70 |
63201-92605 |
US $46.01 |
||
|
63171
|
63171
63115-92613 Panel, Roof, FrontROOF, FRONT [09.1984 - 08.1987] BU70..BUS |
63115-92613 |
US $869.23 |
||
|
63172
|
63172
63113-92120 Panel, Roof, CenterROOF, CENTER [09.1984 - 08.1987] BU70..BUS RR |
63113-92120 |
US $781.87 |
||
|
63172
|
63172
63113-92605 Panel, Roof[09.1984 - 08.1987] BU70..BUS FR |
63113-92605 |
US $538.72 |
||
|
63174
|
63174
63115-92605 Panel, Roof[09.1984 - 08.1987] BU70 |
63115-92605 |
US $412.05 |
||
|
64150
|
64150
64107-92606 Frame Assy, BackBACK [08.1985 - 08.1987] BU70..BUS;BU60..LHD..TW1 |
64107-92606 |
US $132.50 |
||
|
64150
|
64150
64107-92610
Frame Assy, Back
[09.1984 - 08.1985] BU70..BUS;BU60..LHD..TW1 |
64107-92610 |
— | ||
|
64171
|
64171
64171-95410 Bracket, Cab Rear Mounting[09.1984 - 08.1987] BU70,86;BU60,85..TW1 |
64171-95410 |
US $123.76 |
||
|
66103
|
66103
66103-92605 Rail Sub-Assy, Roof Back, Inner[09.1984 - 08.1987] BU70 |
66103-92605 |
US $99.01 |
||
|
66111
|
66111
63106-92605 Rail Sub-Assy, Roof Back Outer[09.1984 - 08.1987] BU70 |
63106-92605 |
US $145.60 |
||
|
9010506089
|
9010506089
90105-06089 New Genuine Part |
90105-06089 |
US $1.60 |
||
| replacement | |||||
|
9010506089
|
9010506089
91554-80614 New Genuine Part |
91554-80614 |
US $1.12 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.80 |
||
| replacements | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.54 |
||
|
9165140616
|
9165140616
90080-11395 New Genuine Part |
90080-11395 |
US $2.73 |
||
|
9331516014
|
9331516014
93315-16014 Screw |
93315-16014 |
from US $1.16 |
||
|
9351014512
|
9351014512
93510-14512 New Genuine Part |
93510-14512 |
US $1.46 |
||
