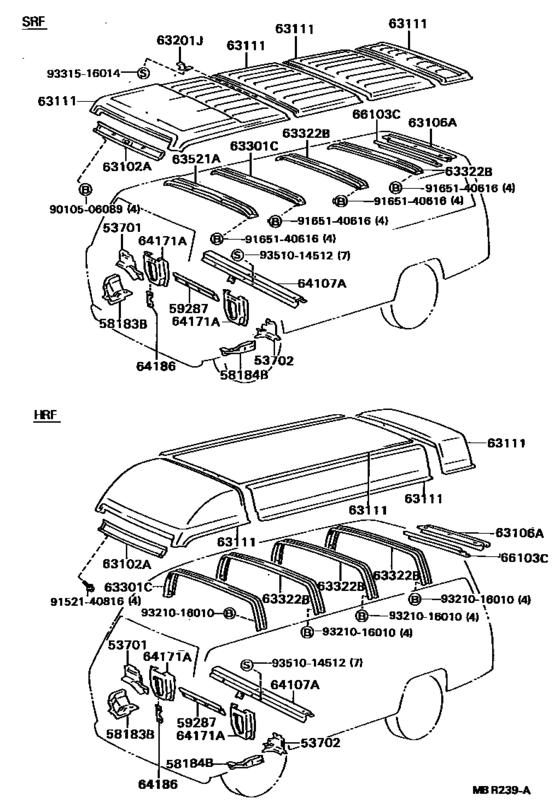

Roof Panel & Back Panel ([08.1988 - ] (8808- )V) Diagram Toyota DYNA/ TOYOACE
- Year
- 1988 - 1993
- Sales region
- Japan
- Frame
- BU70
- body
- V
- ENGINE
- B
- Model
- DYNA/TOYOACE
- From
- 08.1988
- To
- 09.1993
- Gear Shift Type
- 5F
- Seating Capacity
- 09S
- Vehicle Model
- DYN
- Deck,cab
- SRF
- Fuel Induction
- DSL
- Building Condition
- CBU
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53701
|
53701
53703-92600 Apron Sub-Assy, Front Fender, Rh[08.1988 - 05.1995] BU70 |
53703-92600 |
US $52.12 |
||
|
53702
|
53702
53704-92601 Apron Sub-Assy, Front Fender, Lh[08.1988 - 05.1995] BU70 |
53704-92601 |
US $52.12 |
||
|
58183B
|
58183B
58183-95405 Reinforcement, Rear Mounting, Rh[07.1990 - 11.1990] BU70,88..HRF,SRF,TW1 |
58183-95405 |
US $55.47 |
||
|
58183B
|
58183B
58183-95406 Reinforcement, Rear Mounting, Rh[08.1988 - 07.1990] BU60,66,70,87,88..HRF,SRF,TW1,TW2,TW4 |
58183-95406 |
US $55.91 |
||
| replacement | |||||
|
58183B
|
58183B
58183-95405 Reinforcement, Rear Mounting, Rh[08.1988 - 07.1990] BU60,66,70,87,88..HRF,SRF,TW1,TW2,TW4 |
58183-95405 |
US $55.47 |
||
|
58184B
|
58184B
58184-95405 Reinforcement, Rear Mounting, Lh[08.1988 - 07.1990] BU60,66,70,87,88..HRF,SRF,TW1,TW2,TW4 |
58184-95405 |
US $55.91 |
||
| replacement | |||||
|
58184B
|
58184B
58184-95404 Reinforcement, Rear Mounting, Lh[08.1988 - 07.1990] BU60,66,70,87,88..HRF,SRF,TW1,TW2,TW4 |
58184-95404 |
US $55.47 |
||
|
59287
|
59287
59287-92602 Base, Transmission Cover, Center[08.1988 - 07.1991] BU66,70..HRF,SRF,TW1 |
59287-92602 |
US $77.17 |
||
|
63102A
|
63102A
63132-95418 Panel Sub-Assy, Windshield Header[08.1988 - 05.1995] BU70,73..SRF,T3;BU6#,72,74,83,84,87..CBU,IV3 |
63132-95418 |
US $88.82 |
||
| replacement | |||||
|
63102A
|
63102A
63132-37010 Panel Sub-Assy, Windshield Header[08.1988 - 05.1995] BU70,73..SRF,T3;BU6#,72,74,83,84,87..CBU,IV3 |
63132-37010 |
US $90.27 |
||
|
63106A
|
63106A
63106-92605 Rail Sub-Assy, Roof Back Outer[08.1988 - 05.1995] BU70 |
63106-92605 |
US $145.60 |
||
|
63111
|
63111
63113-92605 Panel, Roof[08.1988 - 05.1995] BU70..SRF CENTER |
63113-92605 |
US $538.72 |
||
|
63111
|
63111
63115-92605 Panel, Roof[08.1988 - 05.1995] BU70..SRF REAR |
63115-92605 |
US $412.05 |
||
|
63111
|
63111
63115-92612 Panel, Roof[08.1988 - 05.1995] BU70..SRF FRONT |
63115-92612 |
US $870.69 |
||
|
63201J
|
63201J
63201-92605 Bracket, Roof Panel Reinforcement[08.1988 - 05.1995] BU70..SRF |
63201-92605 |
US $46.01 |
||
|
63301C
|
63301C
63301-92605 Reinforcement Sub-Assy, Roof Panel, Center[08.1988 - 05.1995] BU70..SRF |
63301-92605 |
US $149.97 |
||
|
63322B
|
63322B
63322-92605 Reinforcement Sub-Assy, Roof Panel, Rear[08.1988 - 05.1995] BU70..SRF |
63322-92605 |
US $91.73 |
||
|
63521A
|
63521A
63021-92604 Reinforcement Sub-Assy, Roof Panel, Front[08.1988 - 05.1995] BU70..SRF |
63021-92604 |
US $99.01 |
||
|
64107A
|
64107A
64107-37070 Frame Sub-Assy, Back[05.1991 - 09.1993] BU70..09S |
64107-37070 |
US $232.96 |
||
| replacements | |||||
|
64107A
|
64107A
64107-37061 Frame Sub-Assy, Back[05.1991 - 09.1993] BU70..09S |
64107-37061 |
US $232.96 |
||
|
64107A
|
64107A
90333-25001 Plug, Hole(For Hood)[05.1991 - 09.1993] BU70..09S |
90333-25001 |
from US $1.41 |
||
|
64107A
|
64107A
64107-92617 Frame Sub-Assy, Back[08.1988 - 05.1991] BU70..09S |
64107-92617 |
US $235.87 |
||
|
64171A
|
64171A
64025-25020 Bracket Sub-Assy, Rear Mounting[05.1991 - 07.1991] BU66,70,88..HRF,SRF,TW1 |
64025-25020 |
US $126.67 |
||
|
64171A
|
64171A
64171-95410 Bracket, Cab Rear Mounting[08.1988 - 05.1991] BU60,66,70,87,88..HRF,SRF,TW1,TW2,TW4 |
64171-95410 |
US $123.76 |
||
|
64186
|
64186
64186-95A00 Retainer, Rear Mounting Bracket[08.1988 - 05.1995] BU60,66,70,87,88..HRF,SRF,TW1,TW2,TW4 |
64186-95A00 |
US $4.95 |
||
|
66103C
|
66103C
66103-92605 Rail Sub-Assy, Roof Back, Inner[08.1988 - 05.1995] BU70 |
66103-92605 |
US $99.01 |
||
|
9010506089
|
9010506089
90105-06089 New Genuine Part |
90105-06089 |
US $1.60 |
||
| replacement | |||||
|
9010506089
|
9010506089
91554-80614 New Genuine Part |
91554-80614 |
US $1.12 |
||
|
9152140816
|
9152140816
91521-40816 New Genuine Part |
91521-40816 |
US $1.89 |
||
| replacement | |||||
|
9152140816
|
9152140816
91511-B0816 BOLT |
91511-B0816 |
US $0.92 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.80 |
||
| replacements | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.54 |
||
|
9165140616
|
9165140616
90080-11395 New Genuine Part |
90080-11395 |
US $2.73 |
||
|
9321016010
|
9321016010
93210-16010 New Genuine Part |
93210-16010 |
US $4.16 |
||
|
9331516014
|
9331516014
93315-16014 Screw |
93315-16014 |
from US $1.16 |
||
|
9351014512
|
9351014512
93510-14512 New Genuine Part |
93510-14512 |
US $1.46 |
||
