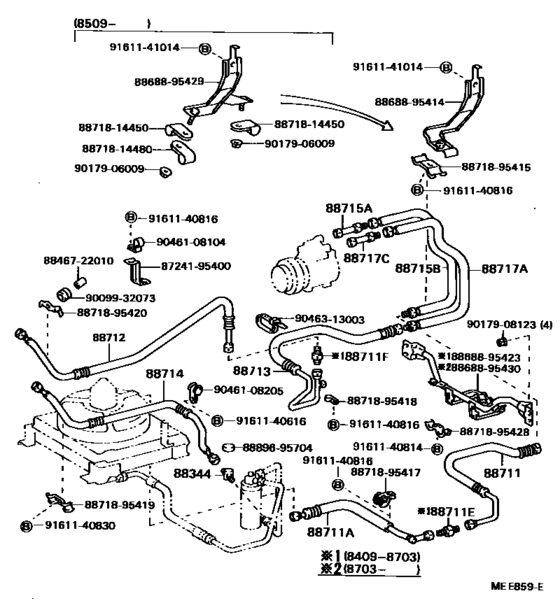

Heating & Air Conditioning - Cooler Piping ([09.1984 - ] (8409- )BU6#,80,81,82..RHD) Diagram Toyota DYNA/ TOYOACE
- Year
- 1986 - 1987
- Sales region
- General
- Frame
- BU81
- body
- TR
- ENGINE
- 11B
- DESTINATION
- SA
- From
- 04.1986
- To
- 08.1987
- Gear Shift Type
- 5F
- Deck,cab
- T3
- Driver's Position
- RHD
- Building Condition
- IV3
- Deck(Material)
- TB
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88344
|
88344
88407-95701
Glass Sub-Assy, Sight
[09.1984 - 08.1987] BU65..CBU;BU60,61,62,63,70,80,81,82 |
88407-95701 |
— | ||
|
88711
|
88711
88711-95407 Hose, Cooler Refrigerant Discharge, No.1[02.1986 - 08.1987] BU61,62,81,82..CBU,IV3 |
88711-95407 |
US $171.81 |
||
| replacement | |||||
|
88711
|
88711
88711-37210 Hose, Cooler Refrigerant Discharge, No.1[02.1986 - 08.1987] BU61,62,81,82..CBU,IV3 |
88711-37210 |
US $88.82 |
||
|
88711A
|
88711A
88711-95409 Hose, Cooler Refrigerant Discharge, No.2[09.1984 - 03.1987] BU65..CBU;BU60,61,62,63,70,80,81,82 |
88711-95409 |
US $171.81 |
||
| replacement | |||||
|
88711A
|
88711A
88711-95421 Hose, Cooler Refrigerant Discharge, No.2[09.1984 - 03.1987] BU65..CBU;BU60,61,62,63,70,80,81,82 |
88711-95421 |
US $149.97 |
||
|
88711A
|
88711A
88711-95421 Hose, Cooler Refrigerant Discharge, No.2[03.1987 - 08.1987] BU65..CBU;BU60,61,62,63,70,80,81,82 |
88711-95421 |
US $149.97 |
||
|
88711E
|
88711E
90404-19009
Union, No.1(For Cooler Hose)
[09.1984 - 03.1987] BU65..CBU;BU60,61,62,63,70,80,81,82 |
90404-19009 |
— | ||
|
88711F
|
88711F
90404-22005
Union, No.1(For Cooler Hose)
[09.1984 - 03.1987] BU65..CBU;BU60,61,62,63,70,80,81,82 |
90404-22005 |
— | ||
|
88712
|
88712
88712-95410 Hose, Cooler Refrigerant Suction, No.1[09.1984 - 08.1987] BU6#,80,81,82..RHD |
88712-95410 |
US $196.56 |
||
| replacement | |||||
|
88712
|
88712
88712-37270 Hose, Cooler Refrigerant Suction, No.1[09.1984 - 08.1987] BU6#,80,81,82..RHD |
88712-37270 |
US $103.38 |
||
|
88713
|
88713
88712-95408 Hose, Cooler Refrigerant Suction, No.2COOLER REFRIGERANT SUCTION, NO.2 [09.1984 - 08.1987] BU60,63,65,70,80; BU61,62,81 TROPICAL AREA |
88712-95408 |
US $187.82 |
||
|
88713
|
88713
88712-95409 Hose, Suction[02.1986 - 08.1987] BU61,62,81,82..CBU,IV3 |
88712-95409 |
US $187.82 |
||
| replacement | |||||
|
88713
|
88713
88712-37230 Hose, Suction[02.1986 - 08.1987] BU61,62,81,82..CBU,IV3 |
88712-37230 |
US $109.20 |
||
|
88714
|
88714
88721-95407 Hose, Cooler Refrigerant Liquid, No.1[09.1984 - 08.1987] BU6#,80,81,82..RHD |
88721-95407 |
US $151.42 |
||
| replacement | |||||
|
88714
|
88714
88721-36H01 Hose, Cooler Refrigerant Liquid, No.1[09.1984 - 08.1987] BU6#,80,81,82..RHD |
88721-36H01 |
US $145.60 |
||
|
88715A
|
88715A
88715-95403 Pipe, Cooler Refrigerant Discharge, A[09.1984 - 08.1987] BU65..CBU;BU60,61,62,63,70,80,81,82 |
88715-95403 |
US $26.50 |
||
|
88715B
|
88715B
88715-95406 Pipe, Cooler Refrigerant Discharge, B[08.1985 - 08.1987] BU65..CBU;BU60,61,62,63,70,80,81,82 |
88715-95406 |
US $90.27 |
||
|
88717A
|
88717A
88717-95402 Pipe, Cooler Refrigerant Suction, A[09.1984 - 08.1987] BU65..CBU;BU60,61,62,63,70,80,81,82 |
88717-95402 |
US $117.94 |
||
|
88717C
|
88717C
88717-95401 Pipe, Cooler Refrigerant Suction, B[09.1984 - 08.1987] BU65..CBU;BU60,61,62,63,70,80,81,82 |
88717-95401 |
US $47.17 |
||
|
8724195400
|
8724195400
87241-95400 Controller, Water Valve |
87241-95400 |
US $15 |
||
|
8846722010
|
8846722010
88467-22010
Insulator, Cooler Condenser Mounting
|
88467-22010 |
— | ||
|
8868895414
|
8868895414
88688-95414
Bracket, Cooler Diaphragm
|
88688-95414 |
— | ||
|
8868895423
|
8868895423
88688-95423
Bracket, Cooler Condenser, No.3
|
88688-95423 |
— | ||
|
8868895429
|
8868895429
88688-95429
Bracket, Cooler Diaphragm
|
88688-95429 |
— | ||
|
8868895430
|
8868895430
88688-95430
Bracket, Cooler Refrigerant Pipe
|
88688-95430 |
— | ||
|
8871814450
|
8871814450
88718-14450
Clamp(For Cooler Refrigerant Pipe), No.1
|
88718-14450 |
— | ||
|
8871814480
|
8871814480
88718-14480
Clamp(For Cooler Refrigerant Pipe), No.5
|
88718-14480 |
— | ||
|
8871895415
|
8871895415
88718-95415
Pipe, Cooler Refrigerant Suction, No.2
|
88718-95415 |
— | ||
|
8871895417
|
8871895417
88718-95417
Pipe, Cooler Refrigerant Suction, No.2
|
88718-95417 |
— | ||
|
8871895418
|
8871895418
88718-95418
Pipe, Cooler Refrigerant Suction, No.2
|
88718-95418 |
— | ||
|
8871895419
|
8871895419
88718-95419
Pipe, Cooler Refrigerant Suction, No.2
|
88718-95419 |
— | ||
|
8871895420
|
8871895420
88718-95420
Pipe, Cooler Refrigerant Suction, No.2
|
88718-95420 |
— | ||
|
8871895428
|
8871895428
88718-95428
Pipe, Cooler Refrigerant Suction, No.2
|
88718-95428 |
— | ||
|
8889695704
|
8889695704
88896-95704
Cover Assy, Cooler Unit
|
88896-95704 |
— | ||
|
9009932073
|
9009932073
90099-32073
Grommet
|
90099-32073 |
— | ||
|
9017906009
|
9017906009
90179-06009
Nut (For Transmission Control Cable)
|
90179-06009 |
— | ||
| replacement | |||||
|
9017906009
|
9017906009
90179-06156 Nut (For Transmission Control Cable) |
90179-06156 |
from US $0.64 |
||
|
9017908123
|
9017908123
90179-08123 Nut (For Front Wiper Arm Setting) |
90179-08123 |
from US $0.80 |
||
|
9046108104
|
9046108104
90461-08104
New Genuine Part
|
90461-08104 |
— | ||
|
9046108205
|
9046108205
90461-08205 New Genuine Part |
90461-08205 |
US $8.15 |
||
|
9046313003
|
9046313003
90463-13003 Clamp, Hood Lock Control Wire |
90463-13003 |
US $3.23 |
||
|
9161140616
|
9161140616
91611-40616
Bolt, Hexagon(For Steering Column Bracket)
|
91611-40616 |
— | ||
| replacement | |||||
|
9161140616
|
9161140616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.86 |
||
|
9161140814
|
9161140814
91611-40814
Bolt(For Manual Transmission Oil Pan Setting)
|
91611-40814 |
— | ||
| replacement | |||||
|
9161140814
|
9161140814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9161140816
|
9161140816
91611-40816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-40816 |
— | ||
| replacement | |||||
|
9161140816
|
9161140816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9161140830
|
9161140830
91611-40830
Bolt(For Clutch Release Cylinder Setting)
|
91611-40830 |
— | ||
| replacement | |||||
|
9161140830
|
9161140830
91611-60830 Bolt(For Clutch Release Cylinder Setting) |
91611-60830 |
from US $1.44 |
||
|
9161141014
|
9161141014
91611-41014
New Genuine Part
|
91611-41014 |
— | ||
| replacement | |||||
|
9161141014
|
9161141014
91612-B1014 BOLT WWASHER |
91612-B1014 |
US $1.16 |
||
