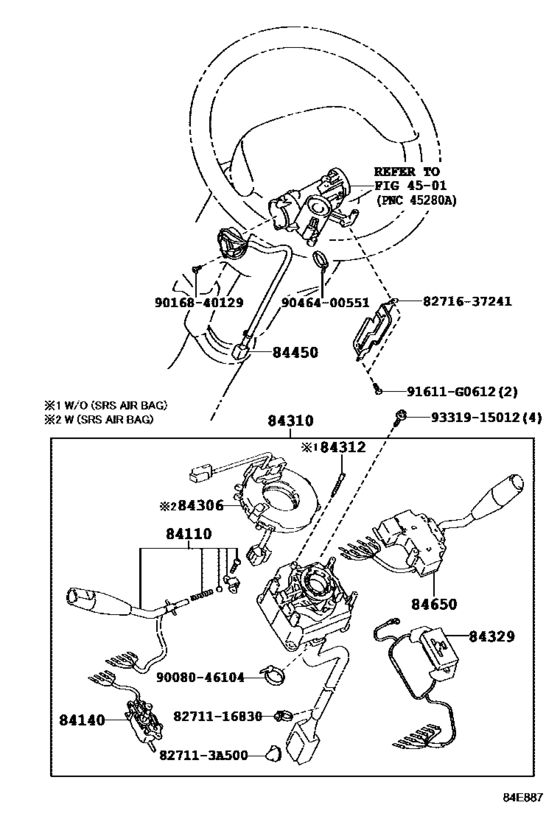

Switch & Relay & Computer ([08.2001 - 10.2016] STEERING (0108-1610)EUR) Diagram Toyota DYNA/ TOYOACE
- Year
- 2003 - 2006
- Sales region
- Europe
- Frame
- KDY220
- ENGINE
- 2KDFTV
- DESTINATION
- EUR
- From
- 12.2003
- To
- 10.2006
- Loading Capacity
- 125T
- Driver's Position
- RHD
- Building Condition
- IV3
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84110
|
84110
84112-80233 Switch Assy, Light Control, No.1LIGHT CONTROL, NO.1 [08.2001 - 02.2015] KDY22#,23#,25#,26#..EUR |
84112-80233 |
US $49.50 |
||
|
84140
|
84140
84140-25080 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [08.2001 - 02.2015] KDY22#,23#,25#,26#..EUR |
84140-25080 |
US $57.66 |
||
|
84306
|
84306
84306-25020
Cable Sub-Assy, Spiral
[08.2001 - 02.2015] KDY22#,23#,25#,26#..EUR |
84306-25020 |
— | ||
|
84310
|
84310
84310-25320 Switch Assy, Turn SignalTURN SIGNAL [08.2001 - 02.2015] KDY22#,23#,25#,26#..EUR W(SRS AIR BAG) |
84310-25320 |
US $250.43 |
||
|
84310
|
84310
84310-25340 Switch Assy, Turn SignalTURN SIGNAL [08.2001 - 02.2015] KDY22#,23#,25#,26#..EUR |
84310-25340 |
US $234.12 |
||
|
84312
|
84312
84312-20011 Plate, Horn Contact[07.2001 - 10.2016] LY235..WT;KDY22#,23#,25#,26#,LY220,230..ARL,EUR,SA |
84312-20011 |
from US $4.82 |
||
|
84329
|
84329
84329-25050 Switch, Turn SignalTURN SIGNAL [08.2001 - 02.2015] KDY22#,23#,25#,26#..EUR W(INTERMITTENT WIPER) |
84329-25050 |
from US $16.02 |
||
|
84329
|
84329
84329-25060 Switch, Turn SignalTURN SIGNAL [08.2001 - 02.2015] KDY22#,23#,25#,26#..EUR |
84329-25060 |
US $16.02 |
||
|
84450
|
84450
84450-25050 Switch Assy, Ignition Or StarterIGNITION OR STARTER [08.2001 - 05.2013] KDY22#,23#,25#,26#..EUR |
84450-25050 |
US $40.48 |
||
| replacement | |||||
|
84450
|
84450
84450-25051
Switch Assy, Ignition Or Starter
[08.2001 - 05.2013] KDY22#,23#,25#,26#..EUR |
84450-25051 |
— | ||
|
84650
|
84650
84652-25170 Switch Assy, Windshield WiperWINDSHIELD WIPER [08.2001 - 02.2015] KDY22#,23#,25#,26#..EUR W(INTERMITTENT WIPER) |
84652-25170 |
US $70.18 |
||
|
84650
|
84650
84652-25190 Switch Assy, Windshield WiperWINDSHIELD WIPER [08.2001 - 02.2015] KDY22#,23#,25#,26#..EUR |
84652-25190 |
US $65.23 |
||
|
91611G0612
|
91611G0612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.78 |
||
|
827113A500
|
827113A500
82711-3A500 Wire, Fuse To Fuse(for Combustion Heater) |
82711-3A500 |
US $1.75 |
||
|
8271116830
|
8271116830
82711-16830 Clamp, Headlamp Cleaner, No.1 |
82711-16830 |
from US $1.15 |
||
|
8271637241
|
8271637241
82716-37241 Bracket, Wiring Harness Clamp, Lh |
82716-37241 |
US $9.17 |
||
|
9008046104
|
9008046104
90080-46104 New Genuine Part |
90080-46104 |
US $1.46 |
||
|
9016840129
|
9016840129
90168-40129 SCREW TAPPING |
90168-40129 |
US $1.08 |
||
|
9046400551
|
9046400551
90464-00551 New Genuine Part |
90464-00551 |
US $1.79 |
||
|
9331915012
|
9331915012
93319-15012 Screw |
93319-15012 |
US $1.25 |
||
