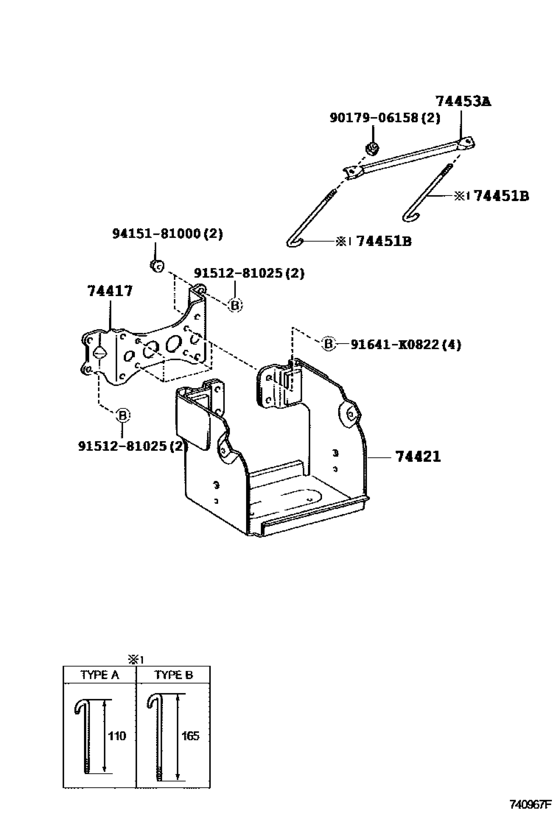

Battery Carrier ([08.2001 - ] BATTERY=80D26L (0108- )KDY220,230,250,260) Diagram Toyota DYNA/ TOYOACE
- Year
- 2003 - 2006
- Sales region
- General
- Frame
- KDY220
- ENGINE
- 2KDFTV
- DESTINATION
- EUR
- From
- 12.2003
- To
- 10.2006
- Loading Capacity
- 125T
- Driver's Position
- RHD
- Building Condition
- IV3
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74417
|
74417
74417-25090 Bracket, Battery Carrier[07.2001 -] KDY230,250,260..15T;KDY22#,231,251,261,LY220,230 |
74417-25090 |
US $37.27 |
||
|
74417
|
74417
74417-25120 Bracket, Battery Carrier[08.2001 - 02.2015] KDY250..LHD;KDY220..IV3;KDY220..LHD..CBU;KDY221,231,251,261..EUR;KDY230,260..LHD.. (10T,15T) BATTERY=D26 X2 |
74417-25120 |
US $58.32 |
||
|
74421
|
74421
74421-26020 Hanger, Battery[08.2001 - 10.2006] KDY220,230,250,260 |
74421-26020 |
US $78.62 |
||
|
74451B
|
74451B
74451-25020 Bolt, Battery Clamp[08.2001 - 10.2006] KDY220,230,250,260 TYPE A:REFER ILLUST. |
74451-25020 |
US $4.30 |
||
|
74451B
|
74451B
74451-36070 Bolt, Battery Clamp[07.2001 -] KDY250..LHD;KDY220..IV3;KDY220..LHD..CBU;KDY230,260..LHD..(10T,15T);KDY221,231,251 ,261,LY22#,23# TYPE B:REFER ILLUST. |
74451-36070 |
US $4.48 |
||
|
74453A
|
74453A
74453-25090 Bar, Battery Set Plate[08.2001 - 10.2006] KDY220,230,250,260 BATTERY=80D26L |
74453-25090 |
US $31.08 |
||
|
74453A
|
74453A
74453-36070
Bar, Battery Set Plate
[08.2001 - 02.2015] KDY250..LHD;KDY220..IV3;KDY220..LHD..CBU;KDY221,231,251,261..EUR;KDY230,260..LHD.. (10T,15T) BATTERY=D26 X2 |
74453-36070 |
— | ||
| replacement | |||||
|
74453A
|
74453A
74453-37131 Bar, Battery Set Plate[08.2001 - 02.2015] KDY250..LHD;KDY220..IV3;KDY220..LHD..CBU;KDY221,231,251,261..EUR;KDY230,260..LHD.. (10T,15T) BATTERY=D26 X2 |
74453-37131 |
US $30.58 |
||
|
91641K0822
|
91641K0822
91641-K0822 BOLT WWASHER |
91641-K0822 |
US $1.43 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.98 |
||
|
9151281025
|
9151281025
91512-81025 Bolt(For Torque Arm Setting) |
91512-81025 |
from US $1.13 |
||
|
9415181000
|
9415181000
94151-81000 NUT FLANGE |
94151-81000 |
US $1.79 |
||
