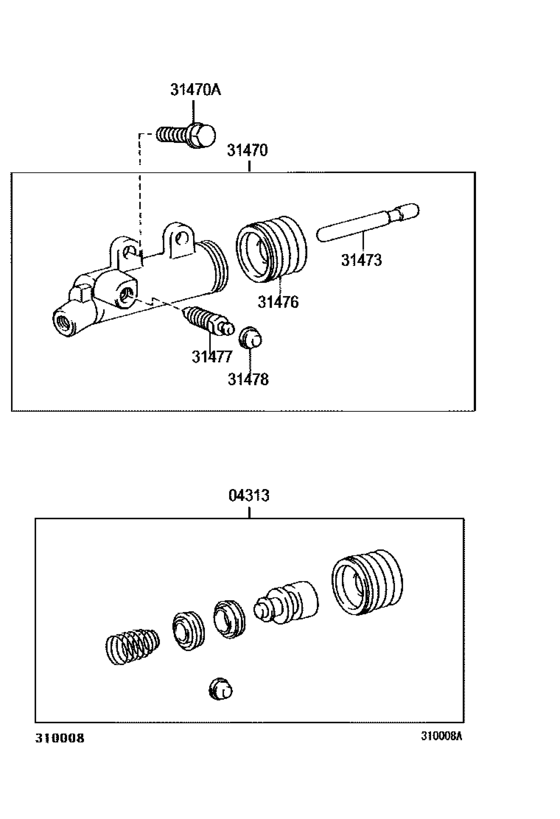

Clutch Release Cylinder ([08.2001 - ] (0108- )KDY22#,23#,25#,26#) Diagram Toyota DYNA/ TOYOACE
- Year
- 2003 - 2006
- Sales region
- General
- Frame
- KDY220
- ENGINE
- 2KDFTV
- DESTINATION
- EUR
- From
- 12.2003
- To
- 10.2006
- Loading Capacity
- 125T
- Driver's Position
- RHD
- Building Condition
- IV3
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04313
|
04313
04313-22030 Cylinder Kit, Clutch Release[08.2001 - 10.2013] KDY221,231..GEN;KDY220,230,250,260 |
04313-22030 |
from US $15.41 |
||
|
31470
|
31470
31470-25040 Cylinder Assy, Clutch Release[08.2001 - 09.2006] KDY220..RHD..IV3 |
31470-25040 |
US $121.36 |
||
|
31470A
|
31470A
91611-B0825 Bolt(For Clutch Release Cylinder Setting)[07.2001 - 09.2006] KDY220..RHD..IV3 *8-1.25PX25-25 |
91611-B0825 |
from US $1.11 |
||
|
31473
|
31473
31473-32010 Rod, Clutch Release Cylinder Push, No.1[08.2001 - 09.2006] KDY220..RHD..IV3 |
31473-32010 |
US $6.29 |
||
|
31476
|
31476
31476-22010 Boot, Clutch Release Cylinder[07.2001 - 09.2006] KDY220..RHD..IV3 |
31476-22010 |
from US $4.10 |
||
|
31477
|
31477
47547-12010 Plug, Bleeder(For Release Cylinder)[07.2001 - 09.2006] KDY220..RHD..IV3 |
47547-12010 |
from US $2.32 |
||
|
31478
|
31478
31478-30010 Bleeder Plug Cap[07.2001 - 09.2006] KDY220..RHD..IV3 |
31478-30010 |
from US $1.60 |
