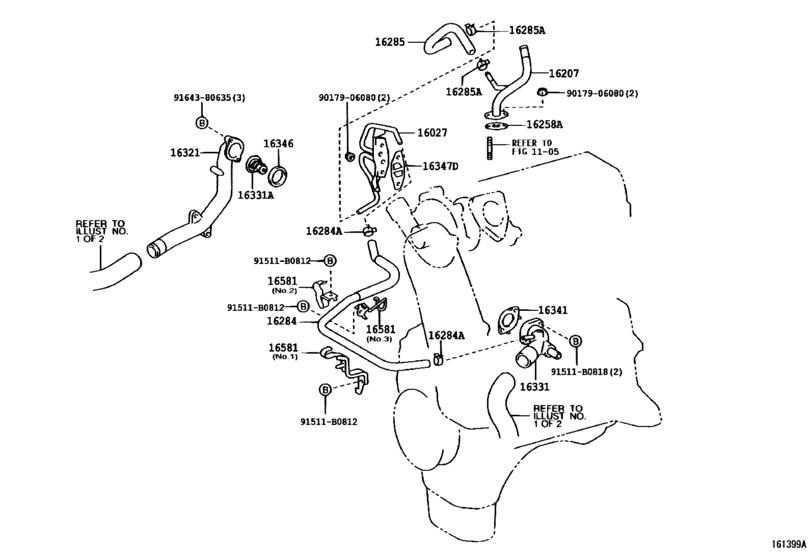

Radiator & Water Outlet ([08.2001 - 10.2006] (0108-0610)2KDFTV) Diagram Toyota DYNA/ TOYOACE
- Year
- 2003 - 2006
- Sales region
- General
- Frame
- KDY220
- ENGINE
- 2KDFTV
- DESTINATION
- EUR
- From
- 12.2003
- To
- 10.2006
- Loading Capacity
- 125T
- Driver's Position
- RHD
- Building Condition
- IV3
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16027
|
16027
16027-30020 Pipe Sub-Assy, Turbo Water, No.1TURBO WATER, NO.1 [08.2001 - 07.2004] 2KDFTV..KDY220,230,250,260 |
16027-30020 |
US $51.11 |
||
| replacement | |||||
|
16027
|
16027
16027-30021 Pipe Sub-Assy, Turbo Water, No.1TURBO WATER, NO.1 [08.2001 - 07.2004] 2KDFTV..KDY220,230,250,260 |
16027-30021 |
US $51.11 |
||
|
16027
|
16027
16027-30021 Pipe Sub-Assy, Turbo Water, No.1TURBO WATER, NO.1 [07.2004 - 10.2006] 2KDFTV..KDY220,230,250,260 |
16027-30021 |
US $51.11 |
||
|
16207
|
16207
16207-30020 Pipe Sub-Assy, Water By-Pass, No.2WATER BY-PASS, NO.2 [08.2001 - 10.2006] 2KDFTV..KDY220,230,250,260 |
16207-30020 |
US $24.90 |
||
|
16258A
|
16258A
16258-67010 Gasket(For Heater Return)[08.2001 -] 1KDFTV,2KDFTV..KDY22#,23#,25#,26# |
16258-67010 |
from US $2.36 |
||
|
16284
|
16284
16284-30020 Hose, Turbo Water, No.1TURBO WATER, NO.1 [08.2001 - 07.2004] 2KDFTV..KDY220,230,250,260 |
16284-30020 |
US $21.84 |
||
| replacement | |||||
|
16284
|
16284
16284-30021 Hose, Turbo Water, No.1TURBO WATER, NO.1 [08.2001 - 07.2004] 2KDFTV..KDY220,230,250,260 |
16284-30021 |
US $21.84 |
||
|
16284
|
16284
16284-30021 Hose, Turbo Water, No.1TURBO WATER, NO.1 [07.2004 - 10.2006] 2KDFTV..KDY220,230,250,260 |
16284-30021 |
US $21.84 |
||
|
16284A
|
16284A
90467-13073
Clamp Or Clip, Hose(For Water By-Pass Hose)
[08.2001 - 09.2011] 2KDFTV..KDY220,230,250,260 |
90467-13073 |
— | ||
| replacement | |||||
|
16284A
|
16284A
90467-13128 Clamp Or Clip, Hose(For Water By-Pass Hose)[08.2001 - 09.2011] 2KDFTV..KDY220,230,250,260 |
90467-13128 |
from US $1.38 |
||
|
16285
|
16285
16285-30020 Hose, Turbo Water, No.2TURBO WATER, NO.2 [08.2001 - 10.2006] 2KDFTV..KDY220,230,250,260 |
16285-30020 |
US $7.86 |
||
|
16285A
|
16285A
90467-13073
Clamp Or Clip, Hose(For Water By-Pass Hose)
[08.2001 - 09.2011] 2KDFTV..KDY220,230,250,260 |
90467-13073 |
— | ||
| replacement | |||||
|
16285A
|
16285A
90467-13128 Clamp Or Clip, Hose(For Water By-Pass Hose)[08.2001 - 09.2011] 2KDFTV..KDY220,230,250,260 |
90467-13128 |
from US $1.38 |
||
|
16321
|
16321
16321-30020 Inlet, Water[08.2001 - 08.2010] 1KDFTV,2KDFTV..KDY22#,23#,25#,26# |
16321-30020 |
US $110.66 |
||
| replacement | |||||
|
16321
|
16321
16321-30090 Inlet, Water[08.2001 - 08.2010] 1KDFTV,2KDFTV..KDY22#,23#,25#,26# |
16321-30090 |
US $134.48 |
||
|
16331
|
16331
16331-30030 Outlet, WaterWATER [08.2001 - 10.2006] 2KDFTV..KDY220,230,250,260 |
16331-30030 |
US $50.38 |
||
|
16331A
|
16331A
90916-03118 Thermostat*WAX 82-95C [08.2001 -] 1KDFTV,2KDFTV..KDY22#,23#,25#,26# *WAX 82-95 |
90916-03118 |
from US $20.94 |
||
|
16341
|
16341
16341-30020 Gasket, Water Outlet[08.2001 -] 1KDFTV,2KDFTV..KDY22#,23#,25#,26# |
16341-30020 |
from US $2.46 |
||
|
16346
|
16346
16346-67010
Gasket, Thermostat
[08.2001 - 08.2010] 1KDFTV,2KDFTV..KDY22#,23#,25#,26# |
16346-67010 |
— | ||
| replacement | |||||
|
16346
|
16346
16346-30010 Gasket, Thermostat[08.2001 - 08.2010] 1KDFTV,2KDFTV..KDY22#,23#,25#,26# |
16346-30010 |
from US $2.93 |
||
|
16347D
|
16347D
16347-27010 Gasket, Water By-PassWATER BY-PASS [08.2001 - 10.2006] 2KDFTV..KDY220,230,250,260 |
16347-27010 |
US $0.42 |
||
|
16581
|
16581
16581-30020 Clamp, Hose(For Water Hose)[08.2001 - 10.2006] 2KDFTV..KDY220,230,250,260 NO.1 |
16581-30020 |
US $7.57 |
||
|
16581
|
16581
16581-30030
Clamp, Hose(For Water Hose)
[08.2001 - 10.2006] 2KDFTV..KDY220,230,250,260 NO.2 |
16581-30030 |
— | ||
|
16581
|
16581
16581-30061
Clamp, Hose(For Water Hose)
[03.2002 - 10.2006] 2KDFTV..KDY220,230,250,260 NO.3 |
16581-30061 |
— | ||
|
91511B0812
|
91511B0812
91511-B0812 BOLT FLANGE |
91511-B0812 |
US $1.61 |
||
|
91511B0818
|
91511B0818
91511-B0818 BOLT FLANGE |
91511-B0818 |
US $2.51 |
||
|
9017906080
|
9017906080
90179-06080 NUT |
90179-06080 |
from US $0.47 |
||
|
9164380635
|
9164380635
91643-80635 New Genuine Part |
91643-80635 |
US $1.97 |
||
