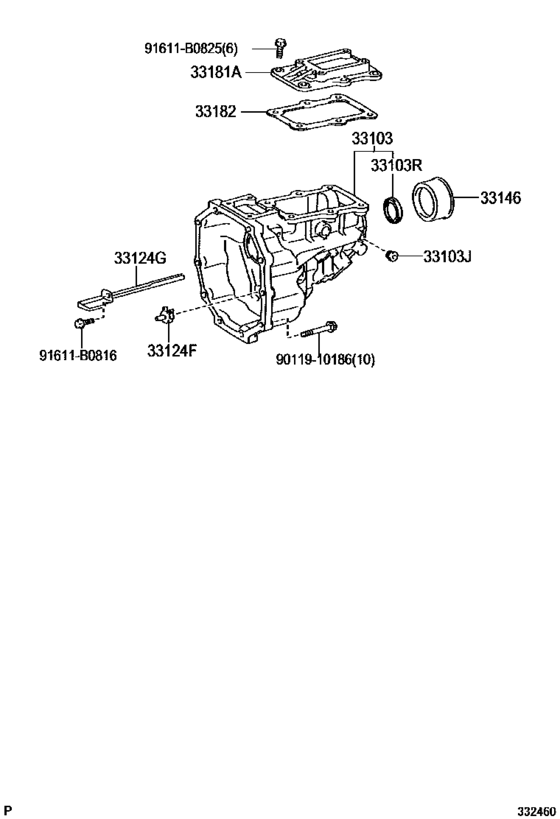

Extension Housing (Mtm) ([09.2006 - ] R351 (0609- )KDY221,231..ST) Diagram Toyota DYNA/ TOYOACE
- Year
- 2006 - 2015
- Sales region
- General
- Frame
- KDY221
- ENGINE
- 1KDFTV
- DESTINATION
- EUR
- From
- 10.2006
- To
- 02.2015
- Loading Capacity
- 125T
- Driver's Position
- RHD
- Building Condition
- IV3
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33103
|
33103
33103-26070 Housing Sub-Assy, Extension(Mtm)[09.2006 - 02.2015] KDY221,231..ST |
33103-26070 |
US $275.18 |
||
|
33103J
|
33103J
90341-10065 Plug, Straight, No.1[09.2006 - 02.2015] KDY221,231..ST |
90341-10065 |
US $3.94 |
||
|
33103R
|
33103R
90311-40001 Seal, Oil(For Extension Housing)[09.2006 - 06.2007] KDY221,231..ST |
90311-40001 |
from US $7.17 |
||
|
33103R
|
33103R
90311-40032 Seal, Oil(For Manual Transmission Extension Housing)[06.2007 - 01.2011] KDY221,231..ST |
90311-40032 |
US $5.82 |
||
| replacement | |||||
|
33103R
|
33103R
90311-40035
Seal, Oil(For Manual Transmission Extension Housing)
[06.2007 - 01.2011] KDY221,231..ST |
90311-40035 |
— | ||
| replacement | |||||
|
33103R
|
33103R
90311-40048 SEAL TYPE T OIL[06.2007 - 01.2011] KDY221,231..ST |
90311-40048 |
from US $7.17 |
||
|
33103R
|
33103R
90311-40035
Seal, Oil(For Manual Transmission Extension Housing)
[01.2011 - 02.2015] KDY221,231..ST |
90311-40035 |
— | ||
| replacement | |||||
|
33103R
|
33103R
90311-40048 SEAL TYPE T OIL[01.2011 - 02.2015] KDY221,231..ST |
90311-40048 |
from US $7.17 |
||
|
33124F
|
33124F
33124-35100 Pipe, Oil Receiver(For Transfer)[07.2001 -] KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T |
33124-35100 |
from US $5.95 |
||
|
33124G
|
33124G
33124-35090 Pipe, Oil Receiver, No.2(For Extension Housing)[09.2006 - 02.2015] KDY221,231..ST |
33124-35090 |
US $3.84 |
||
|
33181A
|
33181A
33181-26030 Cover, Extension Housing(Mtm)[09.2006 - 02.2015] KDY221,231..ST |
33181-26030 |
US $54.69 |
||
|
33182
|
33182
33182-35020
Gasket, Extension Housing Cover(Mtm)
[09.2006 - 01.2011] KDY221,231..ST |
33182-35020 |
— | ||
| replacement | |||||
|
33182
|
33182
33584-71010 Gasket, Extension Housing Cover(Mtm)[09.2006 - 01.2011] KDY221,231..ST |
33584-71010 |
from US $7.16 |
||
|
33182
|
33182
33584-71010 Gasket, Extension Housing Cover(Mtm)[01.2011 - 02.2015] KDY221,231..ST |
33584-71010 |
from US $7.16 |
||
|
91611B0816
|
91611B0816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
91611B0825
|
91611B0825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.11 |
||
|
9011910186
|
9011910186
90119-10186 BOLT |
90119-10186 |
US $2.51 |
||
