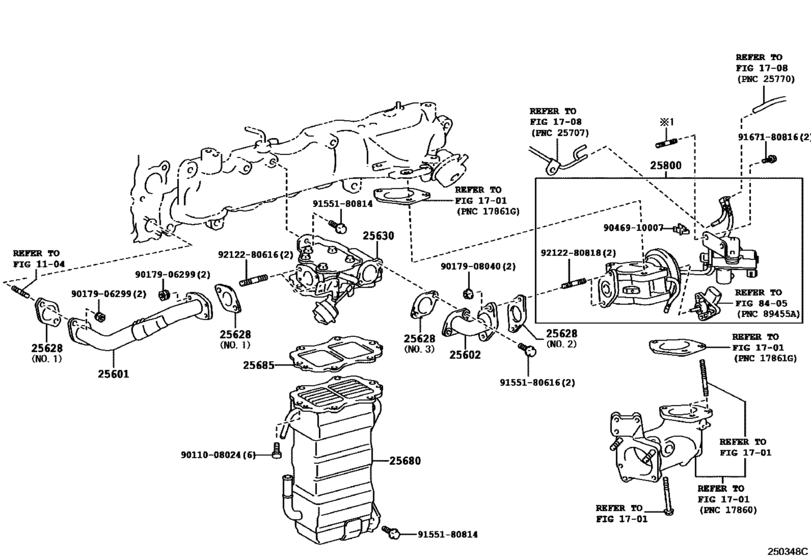

Exhaust Gas Recirculation System ([05.2009 - 09.2011] (0905-1109)1KDFTV..EUR) Diagram Toyota DYNA/ TOYOACE
- Year
- 2006 - 2015
- Sales region
- Europe
- Frame
- KDY231
- ENGINE
- 1KDFTV
- DESTINATION
- EUR
- From
- 09.2006
- To
- 02.2015
- Loading Capacity
- 10T
- Driver's Position
- LHD
- Building Condition
- IV3
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
25601
|
25601
25601-30090
Pipe Sub-Assy, Egr, No.1
[05.2009 - 09.2011] 1KDFTV..KDY221,231,251,261..EUR |
25601-30090 |
— | ||
| replacements | |||||
|
25601
|
25601
16282-30021 Hose, Water By-Pass, No.5[05.2009 - 09.2011] 1KDFTV..KDY221,231,251,261..EUR |
16282-30021 |
US $8.60 |
||
|
25601
|
25601
16283-30011 Hose, Water By-Pass, No.6[05.2009 - 09.2011] 1KDFTV..KDY221,231,251,261..EUR |
16283-30011 |
US $8.60 |
||
|
25601
|
25601
16295-30011 Hose, Water By-Pass, No.7[05.2009 - 09.2011] 1KDFTV..KDY221,231,251,261..EUR |
16295-30011 |
US $8.60 |
||
|
25601
|
25601
25601-30092 Pipe Sub-Assy, Egr, No.1[05.2009 - 09.2011] 1KDFTV..KDY221,231,251,261..EUR |
25601-30092 |
US $111.52 |
||
|
25601
|
25601
90179-06298 NUT[05.2009 - 09.2011] 1KDFTV..KDY221,231,251,261..EUR |
90179-06298 |
US $1.61 |
||
|
25602
|
25602
25612-30010 Pipe Sub-Assy, Egr, No.2[05.2009 - 09.2011] 1KDFTV..KDY221,231,251,261..EUR |
25612-30010 |
US $51.58 |
||
|
25628
|
25628
25628-30010 Gasket, Egr Inlet[08.2001 - 05.2009] 1KDFTV..KDY221,231,251,261..EUR |
25628-30010 |
from US $1.62 |
||
|
25628
|
25628
25628-30040 Gasket, Egr Inlet[05.2009 - 09.2011] 1KDFTV..KDY221,231,251,261..EUR NO.2 |
25628-30040 |
US $4.84 |
||
|
25628
|
25628
25628-30050 Gasket, Egr Inlet[05.2009 - 09.2011] 1KDFTV..KDY221,231,251,261..EUR NO.3 |
25628-30050 |
US $4.84 |
||
|
25628
|
25628
25628-30060 Gasket, Egr Inlet[09.2011 -] 1KDFTV..KDY221,231,251,261..EUR |
25628-30060 |
from US $2.18 |
||
|
25630
|
25630
25630-30030 Valve Assy, Egr, No.2[09.2011 -] 1KDFTV..KDY221,231,251,261..EUR |
25630-30030 |
US $214.40 |
||
|
25630
|
25630
25630-30040 Valve Assy, Egr, No.2[05.2009 - 09.2011] 1KDFTV..KDY221,231,251,261..EUR |
25630-30040 |
US $193.60 |
||
|
25680
|
25680
25680-30010 Cooler Assy, Egr[09.2006 - 05.2009] 1KDFTV..KDY221,231,251,261..EUR |
25680-30010 |
US $345.07 |
||
| replacement | |||||
|
25680
|
25680
25680-30011 Cooler Assy, Egr[09.2006 - 05.2009] 1KDFTV..KDY221,231,251,261..EUR |
25680-30011 |
US $577.20 |
||
|
25680
|
25680
25680-30020 Cooler Assy, Egr[05.2009 - 09.2011] 1KDFTV..KDY221,231,251,261..EUR |
25680-30020 |
US $460.10 |
||
| replacement | |||||
|
25680
|
25680
25680-30021 Cooler Assy, Egr[05.2009 - 09.2011] 1KDFTV..KDY221,231,251,261..EUR |
25680-30021 |
US $483.60 |
||
|
25685
|
25685
25685-30020 Gasket, Egr Cooler, No.1[05.2009 - 09.2011] 1KDFTV..KDY221,231,251,261..EUR |
25685-30020 |
US $4.84 |
||
|
25800
|
25800
25800-30140 Valve Assy, Electric Egr ControlELECTRIC EGR CONTROL [09.2006 - 05.2009] 1KDFTV..KDY221,231,251,261..EUR |
25800-30140 |
US $210.15 |
||
|
25800
|
25800
25800-30150 Valve Assy, Electric Egr Control[05.2009 - 09.2011] 1KDFTV..KDY221,231,251,261..EUR |
25800-30150 |
from US $268.96 |
||
|
25800
|
25800
25800-30200 Valve Assy, Electric Egr Control[09.2011 -] 1KDFTV..KDY221,231,251,261..EUR |
25800-30200 |
from US $283.74 |
||
|
9011008024
|
9011008024
90110-08024 New Genuine Part |
90110-08024 |
US $2.87 |
||
|
9017906299
|
9017906299
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.66 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.03 |
||
|
9046910007
|
9046910007
90469-10007 New Genuine Part |
90469-10007 |
US $3.49 |
||
|
9155180616
|
9155180616
91551-80616 BOLT FLANGE |
91551-80616 |
from US $0.64 |
||
|
9155180814
|
9155180814
91551-80814 Bolt, Hexagon (For Rear Spring Seat Bolt) |
91551-80814 |
US $1.43 |
||
|
9167180816
|
9167180816
91671-80816 Bolt (For Transmission Control Cable Bracket) |
91671-80816 |
from US $0.78 |
||
|
9212280616
|
9212280616
92122-80616 Bolt, Stud(For Head To Cylinder Head Cover) |
92122-80616 |
US $1.43 |
||
|
9212280818
|
9212280818
92122-80818 Bolt, Stud(For Water Pump Pulley Seat) |
92122-80818 |
US $1.61 |
||
