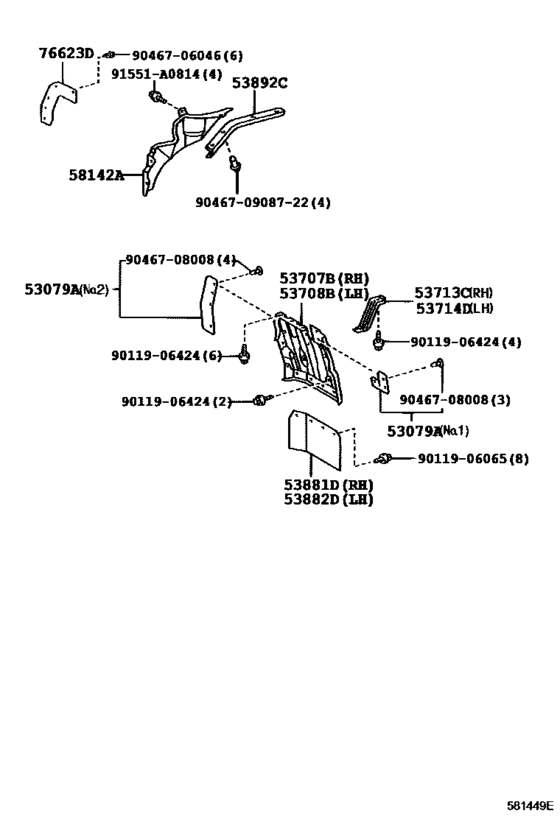

Front Floor Panel & Front Floor Member ([08.2001 - ] (0108- )KDY23#,25#,26#..10T,125T) Diagram Toyota DYNA/ TOYOACE
- Year
- 2006 - 2015
- Sales region
- General
- Frame
- KDY231
- ENGINE
- 1KDFTV
- DESTINATION
- EUR
- From
- 09.2006
- To
- 02.2015
- Loading Capacity
- 10T
- Driver's Position
- LHD
- Building Condition
- IV3
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53079A
|
53079A
53079-25030 Seal Sub-Assy, Front Fender Apron, Lower[08.2001 - 02.2015] KDY23#,25#,26#..10T,125T NO.1 |
53079-25030 |
US $5.10 |
||
|
53079A
|
53079A
53079-25050 Seal Sub-Assy, Front Fender Apron, Lower[11.2003 - 02.2015] KDY23#,25#,26#..10T,125T NO.2 |
53079-25050 |
US $14.41 |
||
|
53707B
|
53707B
53715-25010 Apron Sub-Assy, Fender Side, Rh[08.2001 - 02.2015] KDY231,251,261..10T,125T |
53715-25010 |
US $96.76 |
||
|
53708B
|
53708B
53716-37230 Apron Sub-Assy, Fender Side, Lh[08.2001 - 02.2015] KDY23#,25#,26#..10T,125T |
53716-37230 |
US $96.76 |
||
|
53713C
|
53713C
53747-25010 Extension, Front Fender Apron, Front Rh[08.2001 - 02.2015] KDY23#,25#,26#..10T,125T |
53747-25010 |
US $9.50 |
||
|
53714D
|
53714D
53747-25010 Extension, Front Fender Apron, Front Rh[08.2001 - 02.2015] KDY23#,25#,26#..10T,125T |
53747-25010 |
US $9.50 |
||
|
53881D
|
53881D
53881-25040 Mudguard, Front Rh[08.2001 - 02.2015] KDY23#,25#,26#..10T,125T |
53881-25040 |
US $23.35 |
||
|
53882D
|
53882D
53881-37110 Mudguard, Front Rh[08.2001 - 02.2015] KDY23#,25#,26#..10T,125T |
53881-37110 |
US $18.82 |
||
|
53892C
|
53892C
53892-25020 Seal, Front Fender Splash Shield, Front Lh[03.2004 -] KDY22#,23#,25#,26#,LY220,230 |
53892-25020 |
US $27.66 |
||
|
58142A
|
58142A
58142-25030 Apron, Front Floor Side, No.1 Lh[07.2001 - 05.2016] KDY22#,23#,25#,26#,LY220,230 |
58142-25030 |
US $56.78 |
||
| replacement | |||||
|
58142A
|
58142A
58142-25031 Apron, Front Floor Side, No.1 Lh[07.2001 - 05.2016] KDY22#,23#,25#,26#,LY220,230 |
58142-25031 |
US $50.23 |
||
|
76623D
|
76623D
76623-37031 Mudguard, Front Fender, Front Rh[08.2001 - 02.2015] KDY22#,23#,25#,26#..LHD |
76623-37031 |
US $8.12 |
||
|
91551A0814
|
91551A0814
91551-A0814 BOLT FLANGE |
91551-A0814 |
US $1.43 |
||
|
9011906065
|
9011906065
90119-06065 New Genuine Part |
90119-06065 |
from US $1.43 |
||
|
9011906424
|
9011906424
90119-06424 New Genuine Part |
90119-06424 |
US $1.25 |
||
|
9046706046
|
9046706046
90467-06046 Clip(For Room Partition Garnish) |
90467-06046 |
US $3.32 |
||
| replacement | |||||
|
9046706046
|
9046706046
90467-06046-01 Clip, Rear Floor Mat Set |
90467-06046-01 |
from US $1.97 |
||
|
9046708008
|
9046708008
90467-08008 Clip, Step Plate Cover |
90467-08008 |
from US $2.51 |
||
|
904670908722
|
904670908722
90467-09087-22 Clip |
90467-09087-22 |
from US $0.70 |
||
