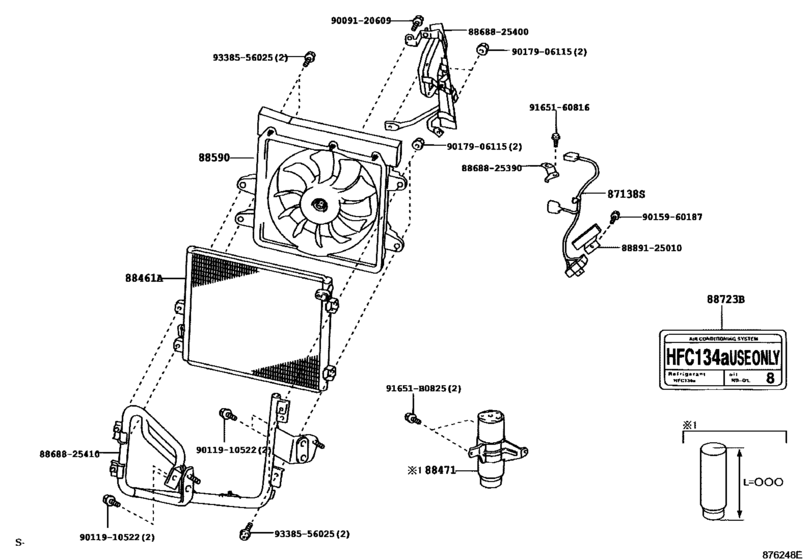

Heating & Air Conditioning - Cooler Piping ([04.2002 - ] CONDENSER & RECEIVER (0204- )KDY22#,23#,25#,26#..LHD) Diagram Toyota DYNA/ TOYOACE
- Year
- 2006 - 2015
- Sales region
- General
- Frame
- KDY231
- ENGINE
- 1KDFTV
- DESTINATION
- EUR
- From
- 09.2006
- To
- 02.2015
- Loading Capacity
- 10T
- Driver's Position
- LHD
- Building Condition
- IV3
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87138S
|
87138S
87138-25080 Resistor, BlowerBLOWER [04.2002 - 02.2015] KDY22#,23#,25#,26#..LHD |
87138-25080 |
US $25.02 |
||
|
88461A
|
88461A
88461-37070 Core, Cooler CondenserCOOLER CONDENSER [09.2006 - 02.2015] KDY221,231,251,261..LHD |
88461-37070 |
US $350.90 |
||
|
88471
|
88471
88471-34010 Receiver & Dryer Assy, Cooler[08.2001 -] KDY22#,23#,25#,26#..EUR L=187 |
88471-34010 |
from US $47.25 |
||
|
88590
|
88590
88590-25100
Blower Assy, W/shroud
[04.2002 - 02.2015] KDY22#,23#,25#,26#..LHD |
88590-25100 |
— | ||
|
88723B
|
88723B
88723-20040 Label, Cooler Service Caution[08.2001 - 02.2015] KDY22#,23#,25#,26#..EUR |
88723-20040 |
from US $2.37 |
||
|
91651B0825
|
91651B0825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.84 |
||
|
8868825390
|
8868825390
88688-25390
Bracket, Cooler Diaphragm
|
88688-25390 |
— | ||
|
8868825400
|
8868825400
88688-25400
Bracket, Cooler Diaphragm
|
88688-25400 |
— | ||
|
8868825410
|
8868825410
88688-25410
Bracket, Cooler Diaphragm
|
88688-25410 |
— | ||
|
9009120609
|
9009120609
90091-20609 BOLT |
90091-20609 |
US $0.41 |
||
|
9011910522
|
9011910522
90119-10522 BOLT WWASHER |
90119-10522 |
US $2.33 |
||
|
9015960187
|
9015960187
90159-60187 SCREW |
90159-60187 |
from US $0.86 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $2.15 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.01 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 BOLT |
90080-11396 |
US $3.32 |
||
|
9338556025
|
9338556025
93385-56025 New Genuine Part |
93385-56025 |
US $0.44 |
||
