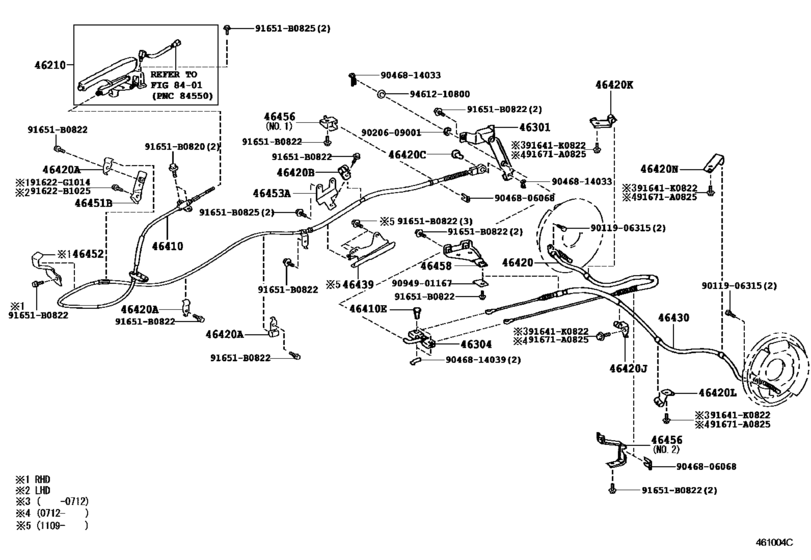

Parking Brake & Cable ([09.2007 - ] (0709- )KDY221,231..ST) Diagram Toyota DYNA/ TOYOACE
- Year
- 2006 - 2015
- Sales region
- General
- Frame
- KDY231
- ENGINE
- 1KDFTV
- DESTINATION
- EUR
- From
- 09.2006
- To
- 02.2015
- Loading Capacity
- 10T
- Driver's Position
- LHD
- Building Condition
- IV3
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46210
|
46210
46210-37032-B0 Lever Assy, Parking BrakePARKING BRAKE [10.2002 - 05.2015] KDY22#,23#,25#,26#,LY225,235..LHD DK.CHARCOAL,TRIM1# |
46210-37032-B0 |
US $152.88 |
||
|
46301
|
46301
46320-25020 Lever Sub-Assy, Parking Brake Intermediate[07.2001 - 09.2016] KDY22#,23#,LY22#..ST |
46320-25020 |
US $33.90 |
||
|
46304
|
46304
46304-25010 Equalizer Sub-Assy, Parking Brake[07.2001 - 09.2016] KDY22#,23#,LY22#..ST |
46304-25010 |
US $7.16 |
||
|
46410
|
46410
46410-25200 Cable Assy, Parking Brake, No.1PARKING BRAKE, NO.1 [08.2001 - 09.2007] KDY22#,23#..LHD..ST |
46410-25200 |
US $100.46 |
||
|
46410
|
46410
46410-25201
Cable Assy, Parking Brake, No.1
[09.2007 - 02.2015] KDY221,231..LHD..ST |
46410-25201 |
— | ||
|
46410E
|
46410E
90240-10044 Pin, W/hole(For Parking Brake Cable No.1)[07.2001 - 09.2016] KDY22#,23#,LY22#..ST |
90240-10044 |
US $3.05 |
||
|
46420
|
46420
46420-25400 Cable Assy, Parking Brake, No.2[08.2001 - 02.2015] KDY23#..ST |
46420-25400 |
US $69.05 |
||
|
46420A
|
46420A
46411-25010 Clamp, No.1(For Parking Brake Cable)[09.2007 -] KDY221,231,251,261,LY230 |
46411-25010 |
US $2.80 |
||
|
46420B
|
46420B
46411-60040 Clamp, No.2(For Parking Brake Cable)[07.2001 - 02.2015] KDY22#,23#,LY220..ST |
46411-60040 |
US $2.62 |
||
|
46420C
|
46420C
90240-08017 Pin, W/hole(For Parking Brake Cable)[07.2001 - 09.2016] KDY22#,23#,LY22#..ST |
90240-08017 |
US $1.22 |
||
|
46420J
|
46420J
46411-25030 Clamp, No.3(For Parking Brake Cable)[07.2001 - 09.2016] KDY22#,23#,LY22#..ST |
46411-25030 |
US $4.72 |
||
|
46420K
|
46420K
46421-25010 Clamp, No.4(For Parking Brake Cable)[07.2001 - 09.2016] KDY22#,23#,LY22#..ST |
46421-25010 |
US $6.55 |
||
|
46420L
|
46420L
46431-25010 Clamp, No.5(For Parking Brake Cable)[07.2001 - 09.2016] KDY22#,23#,LY22#..ST |
46431-25010 |
US $5.39 |
||
|
46420N
|
46420N
46431-25020 Clamp, No.7(For Parking Brake Cable)[07.2001 - 09.2016] KDY22#,23#,LY22#..ST |
46431-25020 |
US $3.93 |
||
|
46430
|
46430
46430-25100 Cable Assy, Parking Brake, No.3[08.2001 - 02.2015] KDY23#..ST |
46430-25100 |
US $78.29 |
||
|
46439
|
46439
46408-25020 Insulator, Parking Brake Cable Heat[09.2011 - 01.2012] KDY221,231..ST |
46408-25020 |
US $21.49 |
||
|
46451B
|
46451B
46451-25060 Bracket, Parking Brake Cable SupportPARKING BRAKE CABLE SUPPORT [08.2001 - 02.2015] KDY22#,23#,25#,26#..LHD |
46451-25060 |
US $9.61 |
||
|
46453A
|
46453A
46453-25040 Bracket, Cable Support, No.3[07.2001 - 09.2007] KDY22#,23#,LY220..ST |
46453-25040 |
US $15.43 |
||
|
46453A
|
46453A
46453-25070 Bracket, Cable Support, No.3[09.2007 - 02.2015] KDY221,231..ST |
46453-25070 |
US $9.76 |
||
|
46456
|
46456
46456-25020 Bracket, Cable Retaining[07.2001 - 09.2016] KDY22#,23#,LY22#..ST NO.1 |
46456-25020 |
US $6.12 |
||
|
46456
|
46456
46457-25020 Bracket, Cable Retaining[07.2001 - 09.2016] KDY22#,23#,LY22#..ST NO.2 |
46457-25020 |
US $9.46 |
||
|
46458
|
46458
46458-25010 Retainer, Cable[07.2001 - 09.2016] KDY22#,23#,LY22#..ST |
46458-25010 |
US $11.88 |
||
|
91622B1025
|
91622B1025
91622-B1025 Bolt(For Front Transaxle Case Cover) |
91622-B1025 |
US $3.05 |
||
|
91622G1014
|
91622G1014
91622-G1014 BOLT WWASHER |
91622-G1014 |
US $1.05 |
||
|
91641K0822
|
91641K0822
91641-K0822 BOLT WWASHER |
91641-K0822 |
US $1.43 |
||
|
91651B0820
|
91651B0820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.99 |
||
| replacement | |||||
|
91651B0820
|
91651B0820
90080-11347 New Genuine Part |
90080-11347 |
US $3.11 |
||
|
91651B0822
|
91651B0822
91651-B0822 BOLT WWASHER |
91651-B0822 |
from US $0.92 |
||
|
91651B0825
|
91651B0825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.84 |
||
|
91671A0825
|
91671A0825
91671-A0825 BOLT FLANGE |
91671-A0825 |
US $1.43 |
||
|
9011906315
|
9011906315
90119-06315 BOLT |
90119-06315 |
US $1.25 |
||
|
9020609001
|
9020609001
90206-09001 New Genuine Part |
90206-09001 |
US $3.35 |
||
|
9046806068
|
9046806068
90468-06068 New Genuine Part |
90468-06068 |
US $1.97 |
||
|
9046814033
|
9046814033
90468-14033 CLIP |
90468-14033 |
from US $0.90 |
||
|
9046814039
|
9046814039
90468-14039 CLIP |
90468-14039 |
US $1.43 |
||
|
9094901167
|
9094901167
90949-01167 Clamp, No.1(For Parking Brake Cable) |
90949-01167 |
US $3.99 |
||
|
9461210800
|
9461210800
94612-10800 Washer, Plate(For Repair Actuator Set) |
94612-10800 |
from US $0.84 |
||
