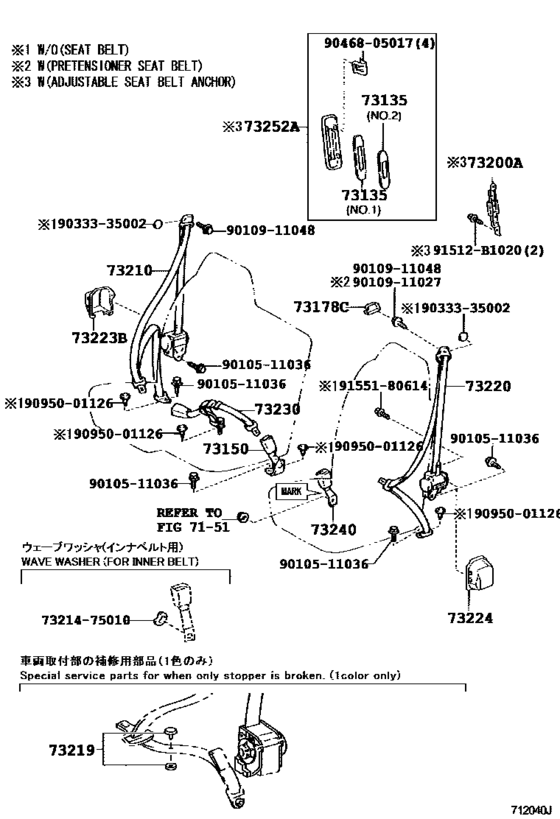

Seat Belt ([07.2001 - ] (0107- )LHD) Diagram Toyota DYNA/ TOYOACE
- Year
- 2006 - 2015
- Sales region
- General
- Frame
- KDY231
- ENGINE
- 1KDFTV
- DESTINATION
- EUR
- From
- 09.2006
- To
- 02.2015
- Loading Capacity
- 10T
- Driver's Position
- LHD
- Building Condition
- IV3
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
73135
|
73135
73135-35010-B1 Cover, Shoulder Belt Anchorage Plate[08.2001 - 02.2015] KDY22#,23#,25#,26#..EUR MD.CHARCOAL,TRIM1#,NO.1 |
73135-35010-B1 |
US $7.13 |
||
|
73135
|
73135
73135-35020-B1 Cover, Shoulder Belt Anchorage Plate[08.2001 - 02.2015] KDY22#,23#,25#,26#..EUR MD.CHARCOAL,TRIM1#,NO.2 |
73135-35020-B1 |
US $3.20 |
||
|
73150
|
73150
73150-37050-B0 Belt Assy, Front Seat Lap Type, Center[07.2001 - 05.2015] LY225,235..ST;KDY22#,23#,25#,26#,LY220,230..ARL,EUR DK.CHARCOAL,TRIM1# |
73150-37050-B0 |
US $32.18 |
||
|
73178C
|
73178C
73178-33020-B1 Cap, Seat Belt Anchor Cover[08.2001 - 02.2015] KDY22#,23#,25#,26#..EUR MD.CHARCOAL,TRIM1# |
73178-33020-B1 |
US $5.24 |
||
|
73200A
|
73200A
73200-34030 Adjuster Assy, Front Shoulder Belt Anchor[08.2001 - 02.2015] KDY22#,23#,25#,26#..EUR |
73200-34030 |
US $71.34 |
||
|
73210
|
73210
73210-37250-B0 Belt Assy, Front Seat Outer, RhFRONT SEAT OUTER, RH [09.2004 - 12.2007] LY230..ARL;LY225,235..LHD;KDY23#,25#,26#,LY220..10T,125T GRAY,TRIM1# |
73210-37250-B0 |
US $321.78 |
||
| replacement | |||||
|
73210
|
73210
73210-37252-B0
Belt Assy, Front Seat Outer, Rh
[09.2004 - 12.2007] LY230..ARL;LY225,235..LHD;KDY23#,25#,26#,LY220..10T,125T GRAY,TRIM1# |
73210-37252-B0 |
— | ||
|
73210
|
73210
73210-37251-B0
Belt Assy, Front Seat Outer, Rh
[01.2008 - 08.2009] KDY221,231,251,261,LY225,235..LHD GRAY,TRIM1# |
73210-37251-B0 |
— | ||
| replacement | |||||
|
73210
|
73210
73210-37252-B0
Belt Assy, Front Seat Outer, Rh
[01.2008 - 08.2009] KDY221,231,251,261,LY225,235..LHD GRAY,TRIM1# |
73210-37252-B0 |
— | ||
|
73210
|
73210
73210-37251-B1
Belt Assy, Front Seat Outer, Rh
[08.2009 - 06.2012] KDY221,231..GEN;KDY221,231,251,261,LY225,235..LHD GRAY,TRIM1# |
73210-37251-B1 |
— | ||
| replacement | |||||
|
73210
|
73210
73210-37252-B1
Belt Assy, Front Seat Outer, Rh
[08.2009 - 06.2012] KDY221,231..GEN;KDY221,231,251,261,LY225,235..LHD GRAY,TRIM1# |
73210-37252-B1 |
— | ||
|
73210
|
73210
73210-37300-B2 Belt Assy, Front Seat Outer, Lh[06.2012 - 04.2015] KDY221,231,251,261..LHD;KDY221,231,LY225,235..GEN GRAY,TRIM1# |
73210-37300-B2 |
US $203.84 |
||
|
73219
|
73219
73219-33010 Stopper, Tongue Plate[09.2006 - 02.2015] KDY231,251,261..10T,125T BLACK |
73219-33010 |
from US $0.90 |
||
|
73220
|
73220
73210-37240-B0 Belt Assy, Front Seat Outer, RhFRONT SEAT OUTER, RH [09.2004 - 08.2009] KDY231..ST;KDY230,250,260..10T,125T W(PRETENSIONER SEAT BELT),GRAY,TRIM1# |
73210-37240-B0 |
US $423.70 |
||
|
73220
|
73220
73210-37240-B1
Belt Assy, Front Seat Outer, Rh
[08.2009 - 06.2012] KDY221,231,251,261..LHD W(PRETENSIONER SEAT BELT),GRAY,TRIM1# |
73210-37240-B1 |
— | ||
|
73220
|
73220
73210-37260-B0
Belt Assy, Front Seat Outer, Rh
[09.2004 - 08.2009] KDY23#,25#,26#..10T,125T W(ADJUSTABLE SEAT BELT ANCHOR),GRAY,TRIM1# |
73210-37260-B0 |
— | ||
| replacement | |||||
|
73220
|
73220
73210-37261-B1
Belt Assy, Front Seat Outer, Rh
[09.2004 - 08.2009] KDY23#,25#,26#..10T,125T W(ADJUSTABLE SEAT BELT ANCHOR),GRAY,TRIM1# |
73210-37261-B1 |
— | ||
|
73220
|
73220
73210-37260-B1
Belt Assy, Front Seat Outer, Rh
[08.2009 - 06.2012] KDY221,231,251,261..LHD W(ADJUSTABLE SEAT BELT ANCHOR),GRAY,TRIM1# |
73210-37260-B1 |
— | ||
| replacement | |||||
|
73220
|
73220
73210-37261-B1
Belt Assy, Front Seat Outer, Rh
[08.2009 - 06.2012] KDY221,231,251,261..LHD W(ADJUSTABLE SEAT BELT ANCHOR),GRAY,TRIM1# |
73210-37261-B1 |
— | ||
|
73220
|
73220
73210-37290-B2 Belt Assy, Front Seat Outer, Rh[06.2012 - 02.2013] KDY221,231,251,261..LHD W(PRETENSIONER SEAT BELT),GRAY,TRIM1# |
73210-37290-B2 |
US $320.32 |
||
| replacement | |||||
|
73220
|
73220
73210-37291-B2 Belt Assy, Front Seat Outer, Rh[06.2012 - 02.2013] KDY221,231,251,261..LHD W(PRETENSIONER SEAT BELT),GRAY,TRIM1# |
73210-37291-B2 |
US $589.68 |
||
|
73220
|
73220
73210-37291-B2 Belt Assy, Front Seat Outer, Rh[03.2013 - 02.2015] KDY221,231,251,261..LHD W(PRETENSIONER SEAT BELT),GRAY,TRIM1# |
73210-37291-B2 |
US $589.68 |
||
|
73220
|
73220
73210-37320-B2 Belt Assy, Front Seat Outer, Rh[06.2012 - 02.2015] KDY221,231,251,261..LHD GRAY,TRIM1# |
73210-37320-B2 |
US $203.84 |
||
|
73223B
|
73223B
73223-37020 Cover, Front Seat Belt Retractor, Rh[08.2001 - 02.2015] KDY23#,25#,26#..10T,125T |
73223-37020 |
US $13.25 |
||
|
73224
|
73224
73224-37010 Cover, Front Seat Belt Retractor, Lh[08.2001 - 02.2015] KDY23#,25#,26#..10T,125T |
73224-37010 |
US $13.25 |
||
|
73230
|
73230
73230-25030-B0 Belt Assy, Front Seat Inner, RhFRONT SEAT INNER, RH [07.2001 - 01.2009] KDY22#,23#,25#,26#,LY225,235..LHD GRAY,TRIM1# |
73230-25030-B0 |
US $157.25 |
||
| replacement | |||||
|
73230
|
73230
73230-25032-B3
Belt Assy, Front Seat Inner, Rh
[07.2001 - 01.2009] KDY22#,23#,25#,26#,LY225,235..LHD GRAY,TRIM1# |
73230-25032-B3 |
— | ||
|
73230
|
73230
73230-25031-B0
Belt Assy, Front Seat Inner, Rh
[02.2009 - 08.2009] KDY221,231,251,261,LY225,235..LHD GRAY,TRIM1# |
73230-25031-B0 |
— | ||
| replacement | |||||
|
73230
|
73230
73230-25032-B3
Belt Assy, Front Seat Inner, Rh
[02.2009 - 08.2009] KDY221,231,251,261,LY225,235..LHD GRAY,TRIM1# |
73230-25032-B3 |
— | ||
|
73230
|
73230
73230-25031-B3
Belt Assy, Front Seat Inner, Rh
[08.2009 - 06.2012] KDY221,231,251,261,LY225,235..LHD GRAY,TRIM1# |
73230-25031-B3 |
— | ||
| replacement | |||||
|
73230
|
73230
73230-25032-B3
Belt Assy, Front Seat Inner, Rh
[08.2009 - 06.2012] KDY221,231,251,261,LY225,235..LHD GRAY,TRIM1# |
73230-25032-B3 |
— | ||
|
73230
|
73230
73230-37340-B1 Belt Assy, Front Seat Inner, Lh[06.2012 - 04.2015] KDY221,231,251,261,LY225,235..LHD GRAY,TRIM1# |
73230-37340-B1 |
US $96.10 |
||
|
73240
|
73240
73230-37110-B0 Belt Assy, Front Seat Inner, RhFRONT SEAT INNER, LH [07.2001 - 09.2007] KDY22#,23#,25#,26#,LY225,235..LHD DK.CHARCOAL,TRIM1# |
73230-37110-B0 |
US $51.40 |
||
| replacement | |||||
|
73240
|
73240
73230-0W120-B0
Belt Assy, Front Seat Inner, Rh
[07.2001 - 09.2007] KDY22#,23#,25#,26#,LY225,235..LHD DK.CHARCOAL,TRIM1# |
73230-0W120-B0 |
— | ||
|
73240
|
73240
73230-37210-B0
Belt Assy, Front Seat Inner, Lh
[09.2007 - 05.2015] KDY221,231,251,261,LY225,235..LHD MARK = L,DK.CHARCOAL,TRIM1# |
73230-37210-B0 |
— | ||
|
73252A
|
73252A
73252-37020-B0
Cover, Shoulder Belt Anchor Adjust
[08.2001 - 10.2009] KDY23#,25#,26#..10T,125T MD.CHARCOAL,TRIM1# |
73252-37020-B0 |
— | ||
| replacement | |||||
|
73252A
|
73252A
73252-37021-B0
Cover, Shoulder Belt Anchor Adjust
[08.2001 - 10.2009] KDY23#,25#,26#..10T,125T MD.CHARCOAL,TRIM1# |
73252-37021-B0 |
— | ||
|
73252A
|
73252A
73252-37021-B0
Cover, Shoulder Belt Anchor Adjust
[10.2009 - 02.2015] KDY231,251,261..10T,125T MD.CHARCOAL,TRIM1# |
73252-37021-B0 |
— | ||
|
91512B1020
|
91512B1020
91512-B1020 Bolt(For Front Transaxle Case Cover) |
91512-B1020 |
US $1.89 |
||
| replacement | |||||
|
91512B1020
|
91512B1020
90105-A0050 Bolt(For Front Transaxle Case Cover) |
90105-A0050 |
US $3.96 |
||
|
7321475010
|
7321475010
73214-75010 Plate, Front Seat Belt Anchor |
73214-75010 |
US $3.05 |
||
|
9010511036
|
9010511036
90105-11036 New Genuine Part |
90105-11036 |
US $1.97 |
||
|
9010911027
|
9010911027
90109-11027 BOLT |
90109-11027 |
US $3.94 |
||
|
9010911048
|
9010911048
90109-11048 New Genuine Part |
90109-11048 |
US $5.38 |
||
|
9033335002
|
9033335002
90333-35002 Plug, Hole(For Rear Door Panel) |
90333-35002 |
US $1.43 |
||
|
9046805017
|
9046805017
90468-05017 Clip, Roof Side Rail Garnish |
90468-05017 |
from US $0.92 |
||
|
9095001126
|
9095001126
90950-01126 Grommet, Safety Band Anchorage Nut |
90950-01126 |
US $6.45 |
||
|
9155180614
|
9155180614
91551-80614 Bolt(For Vacuum Transmitting Pipe) |
91551-80614 |
from US $0.66 |
||
