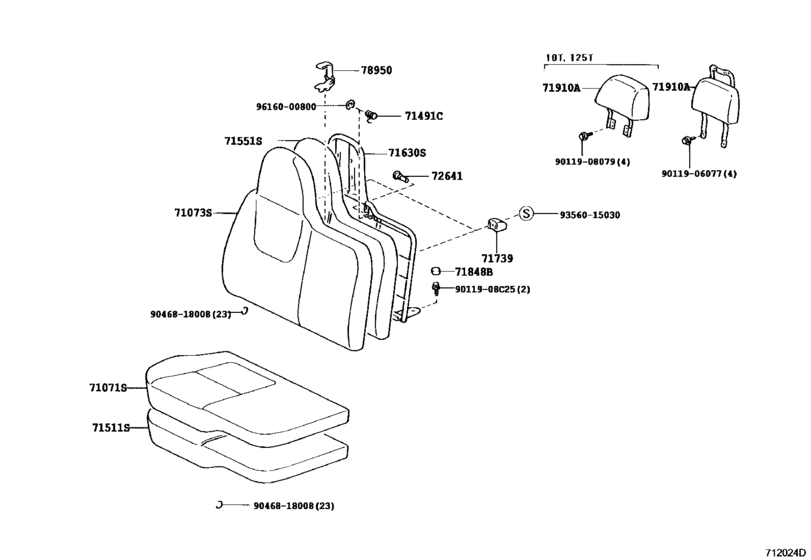

Seat & Seat Track ([07.2001 - 10.2016] PASSENGER SEAT, BENCH TYPE (0107-1610)LHD) Diagram Toyota DYNA/ TOYOACE
- Year
- 2006 - 2015
- Sales region
- General
- Frame
- KDY231
- ENGINE
- 1KDFTV
- DESTINATION
- EUR
- From
- 09.2006
- To
- 02.2015
- Loading Capacity
- 10T
- Driver's Position
- LHD
- Building Condition
- IV3
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71071S
|
71071S
71071-25170-B1 Cover, Front Seat Cushion, Rh(For Separate Type)FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) [08.2004 - 08.2007] KDY22#,23#,25#,26#,LY225,235..LHD SEAT = TYPE A-*104,MEDIUM CHA,TRIM1# |
71071-25170-B1 |
US $267.90 |
||
|
71071S
|
71071S
71071-25180-B0
Cover, Front Seat Cushion, Rh(For Separate Type)
[06.2012 - 12.2012] KDY221,231,251,261,LY225,235..LHD SEAT=TYPE A-*104,MD. CHARCOAL,TRIM1# |
71071-25180-B0 |
— | ||
|
71071S
|
71071S
71071-25181-B0
Cover, Front Seat Cushion, Rh(For Separate Type)
[12.2012 - 05.2015] KDY221,231,251,261,LY225,235..LHD SEAT=TYPE A-*104,MD. CHARCOAL,TRIM1# |
71071-25181-B0 |
— | ||
|
71071S
|
71071S
71071-37750-B0
Cover, Front Seat Cushion, Rh(For Separate Type)
[11.2007 - 06.2012] KDY221,231,251,261..LHD FABRIC SEAT,MD. CHARCOAL,TRIM1# |
71071-37750-B0 |
— | ||
|
71073S
|
71073S
71073-25310-B1
Cover, Front Seat Back, Rh(For Separate Type)
[08.2004 - 08.2007] KDY23#,25#,26#..10T,125T SEAT = TYPE A-*104,MEDIUM CHA,TRIM1# |
71073-25310-B1 |
— | ||
|
71073S
|
71073S
71073-25340-B0
Cover, Front Seat Back, Rh(For Separate Type)
[11.2007 - 06.2012] KDY231,251,261..10T,125T MD. CHARCOAL,TRIM1# |
71073-25340-B0 |
— | ||
|
71073S
|
71073S
71073-25341-B1
Cover, Front Seat Back, Rh(For Separate Type)
[06.2012 - 02.2015] KDY231,251,261..10T,125T SEAT=TYPE A-*104,MD. CHARCOAL,TRIM1# |
71073-25341-B1 |
— | ||
|
71491C
|
71491C
71491-89101 Spring, Rear Seat Back Lock Hook[07.2001 - 08.2007] LY225,235..RHD..ST;KDY221,231,251,261,LY230..EUR,GEN,SA |
71491-89101 |
US $3.32 |
||
|
71511S
|
71511S
71501-25020
Pad, Front Seat Cushion, Rh(For Separate Type)
[06.2012 - 12.2012] KDY221,231,251,261,LY225,235..LHD |
71501-25020 |
— | ||
|
71511S
|
71511S
71501-25021
Pad, Front Seat Cushion, Rh(For Separate Type)
[12.2012 -] KDY221,231,251,261,LY225,235..LHD |
71501-25021 |
— | ||
|
71511S
|
71511S
71501-37040
Pad, Front Seat Cushion, Rh(For Separate Type)
[07.2001 - 08.2007] KDY221,231,251,261,LY225,235..LHD |
71501-37040 |
— | ||
|
71551S
|
71551S
71551-25020 Pad, Front Seat Back, Rh(For Separate Type)FRONT SEAT BACK, RH(FOR SEPARATE TYPE) [07.2001 - 08.2007] KDY22#,23#,25#,26#,LY225,235..LHD |
71551-25020 |
US $157.25 |
||
|
71551S
|
71551S
71551-37230
Pad, Front Seat Back, Rh(For Separate Type)
[11.2007 -] KDY221,231,251,261..LHD |
71551-37230 |
— | ||
|
71630S
|
71630S
71630-25011
Spring Assy, Front Seat Back, Rh(For Separate Type)
[03.2005 - 08.2007] KDY22#,23#,25#,26#,LY225,235..LHD W(SEAT BACK CONSOLE) |
71630-25011 |
— | ||
|
71630S
|
71630S
71630-25090
Spring Assy, Front Seat Back, Rh(For Separate Type)
[06.2012 - 02.2015] KDY231,251,261..10T,125T |
71630-25090 |
— | ||
|
71630S
|
71630S
71630-37150
Spring Assy, Front Seat Back, Rh(For Separate Type)
[11.2007 - 06.2012] KDY231,251,261..10T,125T |
71630-37150 |
— | ||
|
71739
|
71739
71739-37010 Cushion, Seat Support[07.2001 - 08.2007] LY235..ST;KDY221,231,251,261,LY225,230..EUR,GEN,SA |
71739-37010 |
US $11.79 |
||
|
71848B
|
71848B
71848-89101 Cap, Seat Adjuster Cover, Rh[08.2001 - 02.2015] KDY231..(10T,125T)..IV3;KDY230,25#,26#..10T,125T |
71848-89101 |
US $3.14 |
||
|
71910A
|
71910A
71910-25080-B1
Headrest Assy, Front Seat
[08.2004 - 08.2007] KDY23#,25#,26#..10T,125T MEDIUM CHA,TRIM1# |
71910-25080-B1 |
— | ||
|
71910A
|
71910A
71910-25100-B0
Headrest Assy, Front Seat
[10.2007 - 02.2015] KDY231,251,261..(10T,125T)..IV3 PORTUGAL CKD,MD.CHARCOAL,TRIM1# |
71910-25100-B0 |
— | ||
|
71910A
|
71910A
71910-25120-B0
Headrest Assy, Front Seat
[06.2014 - 02.2015] KDY231,251,261..10T,125T MD.CHARCOAL,TRIM1# |
71910-25120-B0 |
— | ||
|
72641
|
72641
72641-37010 Pin, Rear Seat Back Lock[07.2001 - 08.2007] LY235..ST;KDY221,231,251,261,LY225,230..EUR,GEN,SA |
72641-37010 |
US $2.91 |
||
|
78950
|
78950
71026-37010-B0 Support, Front Seat Back, Lh[06.2002 - 08.2007] KDY230,250,260..LHD..15T;KDY22#,231,251,261,LY225,235..LHD GRAY,TRIM1# |
71026-37010-B0 |
US $29.56 |
||
|
9011908C25
|
9011908C25
90119-08C25 BOLT WWASHER |
90119-08C25 |
from US $0.86 |
||
|
9011906077
|
9011906077
90119-06077 Bolt |
90119-06077 |
US $1.43 |
||
|
9011908079
|
9011908079
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.64 |
||
|
9046818008
|
9046818008
90468-18008 Clip (For Rear Seat Back) |
90468-18008 |
from US $0.72 |
||
| replacement | |||||
|
9046818008
|
9046818008
90468-16019 Clip (For Rear Seat Back) |
90468-16019 |
from US $0.86 |
||
|
9356015030
|
9356015030
93560-15030 New Genuine Part |
93560-15030 |
US $1.02 |
||
|
9616000800
|
9616000800
96160-00800 Ring, E(For Counter Weight) |
96160-00800 |
from US $0.88 |
||
