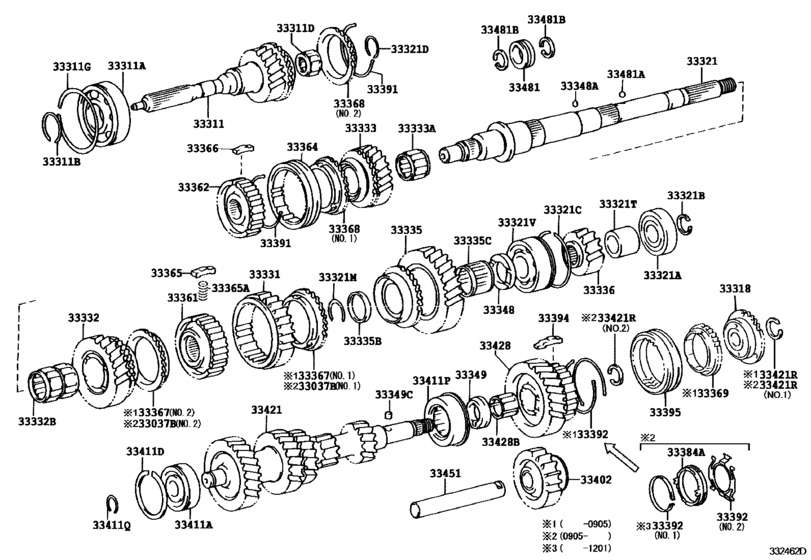

Transmission Gear (Mtm) ([09.2006 - ] R351 (0609- )KDY221,231..ST) Diagram Toyota DYNA/ TOYOACE
- Year
- 2006 - 2015
- Sales region
- General
- Frame
- KDY231
- ENGINE
- 1KDFTV
- DESTINATION
- EUR
- From
- 09.2006
- To
- 02.2015
- Loading Capacity
- 10T
- Driver's Position
- LHD
- Building Condition
- IV3
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33037B
|
33037B
33037-60040
Ring Set, Synchronizer, No.1
[05.2009 - 08.2015] KDY221,231,251,261..EUR NO.2 |
33037-60040 |
— | ||
| replacement | |||||
|
33037B
|
33037B
33037-35030 Ring Set, Synchronizer, No.1[05.2009 - 08.2015] KDY221,231,251,261..EUR NO.2 |
33037-35030 |
from US $57.74 |
||
|
33037B
|
33037B
33037-60050 Ring Set, Synchronizer, No.1[05.2009 -] KDY221,231,251,261..EUR NO.1 |
33037-60050 |
from US $65.69 |
||
|
33311
|
33311
33301-26050 Shaft, Input[04.2014 - 10.2015] KDY221,231,251,261 |
33301-26050 |
US $227.14 |
||
| replacement | |||||
|
33311
|
33311
33301-26060 Shaft, Input[04.2014 - 10.2015] KDY221,231,251,261 |
33301-26060 |
from US $233.60 |
||
|
33311
|
33311
33301-60050
Shaft, Input
[02.2002 - 04.2014] KDY231;KDY221,230,25#,26#..125T,15T |
33301-60050 |
— | ||
| replacement | |||||
|
33311
|
33311
33301-26060 Shaft, Input[02.2002 - 04.2014] KDY231;KDY221,230,25#,26#..125T,15T |
33301-26060 |
from US $233.60 |
||
|
33311A
|
33311A
90363-40050
Bearing (For Input Shaft Front)
[07.2001 - 01.2017] KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T |
90363-40050 |
— | ||
| replacement | |||||
|
33311A
|
33311A
90363-40092 Bearing (For Input Shaft Front)[07.2001 - 01.2017] KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T |
90363-40092 |
from US $41.83 |
||
|
33311B
|
33311B
90520-38008 Ring, Shaft Snap (For Front Bearing)[07.2001 -] KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T T=2.10,MARK A |
90520-38008 |
from US $0.87 |
||
|
33311B
|
33311B
90520-38009 Ring, Shaft Snap (For Front Bearing)[07.2001 -] KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T T=2.15,MARK B |
90520-38009 |
from US $0.87 |
||
|
33311B
|
33311B
90520-38010 Ring, Shaft Snap (For Front Bearing)[07.2001 -] KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T T=2.20,MARK C |
90520-38010 |
from US $0.87 |
||
|
33311B
|
33311B
90520-38011 Ring, Shaft Snap (For Front Bearing)[07.2001 -] KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T T=2.25,MARK D |
90520-38011 |
from US $0.87 |
||
|
33311B
|
33311B
90520-38012 Ring, Shaft Snap (For Front Bearing)[07.2001 -] KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T T=2.30,MARK E |
90520-38012 |
from US $0.87 |
||
|
33311B
|
33311B
90520-38013 Ring, Shaft Snap (For Front Bearing)[07.2001 -] KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T T=2.35,MARK F |
90520-38013 |
from US $0.87 |
||
|
33311B
|
33311B
90520-38014 Ring, Shaft Snap (For Front Bearing)[07.2001 -] KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T T=2.40,MARK G |
90520-38014 |
from US $0.87 |
||
|
33311D
|
33311D
90364-25012 Bearing, Input Shaft[07.2001 -] KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T |
90364-25012 |
from US $16.98 |
||
|
33311G
|
33311G
90520-88001 Ring, Shaft Snap (For Front Bearing)[07.2001 -] KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T |
90520-88001 |
from US $3.40 |
||
|
33318
|
33318
33318-35050 Piece, Gear Spline, No.5[07.2001 - 05.2009] KDY221,231,251,261 |
33318-35050 |
US $28.77 |
||
|
33318
|
33318
33318-60030 Piece, Gear Spline, No.5[05.2009 -] KDY221,231,251,261 |
33318-60030 |
from US $36.93 |
||
|
33321
|
33321
33321-35190
Shaft, Output
[09.2006 - 12.2013] KDY221,231..ST |
33321-35190 |
— | ||
| replacement | |||||
|
33321
|
33321
33321-35191 Shaft, Output[09.2006 - 12.2013] KDY221,231..ST |
33321-35191 |
from US $239.38 |
||
|
33321
|
33321
33321-35191 Shaft, Output[12.2013 - 02.2015] KDY221,231..ST |
33321-35191 |
from US $239.38 |
||
|
33321A
|
33321A
90363-30075 Bearing (For Output Shaft Rear)[09.2006 - 02.2015] KDY221,231..ST |
90363-30075 |
from US $15.52 |
||
|
33321B
|
33321B
90520-28031 Ring, Shaft Snap (For Output Shaft Bearing)[09.2006 - 02.2015] KDY221,231..ST T=2.65,MARK A |
90520-28031 |
from US $0.87 |
||
|
33321B
|
33321B
90520-28032 Ring, Shaft Snap (For Output Shaft Bearing)[09.2006 - 02.2015] KDY221,231..ST T=2.70,MARK B |
90520-28032 |
from US $0.87 |
||
|
33321B
|
33321B
90520-28033 Ring, Shaft Snap (For Output Shaft Bearing)[09.2006 - 02.2015] KDY221,231..ST T=2.75,MARK C |
90520-28033 |
US $0.87 |
||
|
33321B
|
33321B
90520-28034 Ring, Shaft Snap (For Output Shaft Bearing)[09.2006 - 02.2015] KDY221,231..ST T=2.80,MARK D |
90520-28034 |
from US $0.87 |
||
|
33321B
|
33321B
90520-28035 Ring, Shaft Snap (For Output Shaft Bearing)[09.2006 - 02.2015] KDY221,231..ST T=2.85,MARK E |
90520-28035 |
from US $0.87 |
||
|
33321B
|
33321B
90520-28037 Ring, Shaft Snap (For Output Shaft Bearing)[09.2006 - 02.2015] KDY221,231..ST T=2.90,MARK F |
90520-28037 |
from US $1.79 |
||
|
33321B
|
33321B
90520-28039 Ring, Shaft Snap (For Output Shaft Bearing)[09.2006 - 02.2015] KDY221,231..ST T=2.95,MARK G |
90520-28039 |
from US $1.24 |
||
|
33321B
|
33321B
90520-28042 Ring, Shaft Snap (For Output Shaft Bearing)[09.2006 - 02.2015] KDY221,231..ST T=3.00,MARK H |
90520-28042 |
US $1.24 |
||
|
33321B
|
33321B
90520-28043 Ring, Shaft Snap (For Output Shaft Bearing)[09.2006 - 02.2015] KDY221,231..ST T=3.05,MARK J |
90520-28043 |
from US $0.87 |
||
|
33321B
|
33321B
90520-28045 Ring, Shaft Snap (For Output Shaft Bearing)[09.2006 - 02.2015] KDY221,231..ST T=3.10,MARK K |
90520-28045 |
from US $1.24 |
||
|
33321B
|
33321B
90520-28046 Ring, Shaft Snap (For Output Shaft Bearing)[09.2006 - 02.2015] KDY221,231..ST T=3.15,MARK L |
90520-28046 |
US $1.24 |
||
|
33321B
|
33321B
90520-28047 Ring, Shaft Snap (For Output Shaft Bearing)[09.2006 - 02.2015] KDY221,231..ST T=3.20,MARK M |
90520-28047 |
US $1.24 |
||
|
33321B
|
33321B
90520-28048 Ring, Shaft Snap (For Output Shaft Bearing)[09.2006 - 02.2015] KDY221,231..ST T=3.25,MARK N |
90520-28048 |
US $1.24 |
||
|
33321B
|
33321B
90520-28049 Ring, Shaft Snap (For Output Shaft Bearing)[09.2006 - 02.2015] KDY221,231..ST T=3.30,MARK P |
90520-28049 |
US $0.87 |
||
|
33321B
|
33321B
90520-28050 Ring, Shaft Snap (For Output Shaft Bearing)[09.2006 - 02.2015] KDY221,231..ST T=3.35,MARK Q |
90520-28050 |
US $0.87 |
||
|
33321B
|
33321B
90520-28051 Ring, Shaft Snap (For Output Shaft Bearing)[09.2006 - 02.2015] KDY221,231..ST T=3.40,MARK R |
90520-28051 |
US $1.79 |
||
|
33321B
|
33321B
90520-28052 Ring, Shaft Snap (For Output Shaft Bearing)[09.2006 - 02.2015] KDY221,231..ST T=3.45,MARK S |
90520-28052 |
US $0.87 |
||
|
33321C
|
33321C
90520-81001 Ring, Shaft Snap (For Output Shaft Bearing)[07.2001 -] KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T T=1.65,ID=81.4 |
90520-81001 |
from US $3.40 |
||
|
33321D
|
33321D
90520-30014 Ring, Shaft Snap (For Output Shaft Bearing)[07.2001 -] KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T T=1.80,MARK A |
90520-30014 |
from US $1.79 |
||
|
33321D
|
33321D
90520-30015 Ring, Shaft Snap (For Output Shaft Bearing)[07.2001 -] KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T T=1.85,MARK B |
90520-30015 |
from US $1.77 |
||
|
33321D
|
33321D
90520-30016 Ring, Shaft Snap (For Clutch Hub Set)[07.2001 -] KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T T=1.90,MARK C |
90520-30016 |
from US $1.79 |
||
|
33321D
|
33321D
90520-30017 Ring, Shaft Snap (For Clutch Hub Set)[07.2001 -] KDY231;LY235..WT;KDY221,230,25#,26#,LY230..125T,15T T=1.95,MARK D |
90520-30017 |
from US $1.72 |
||
|
33321D
|
33321D
90520-30018 Ring, Shaft Snap (For Clutch Hub Set)[07.2001 -] KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T T=2.00,MARK E |
90520-30018 |
from US $1.79 |
||
|
33321D
|
33321D
90520-30019 Ring, Shaft Snap (For Clutch Hub Set)[07.2001 -] KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T T=2.05,MARK F |
90520-30019 |
from US $0.87 |
||
|
33321D
|
33321D
90520-30020 Ring, Shaft Snap (For Clutch Hub Set)[07.2001 -] KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T T=2.10,MARK G |
90520-30020 |
from US $1.79 |
||
|
33321M
|
33321M
90520-36007 Ring, Shaft Snap (For Output Shaft Bearing)[07.2001 -] KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T T=2.30,MARK A |
90520-36007 |
from US $0.87 |
||
|
33321M
|
33321M
90520-36008 Ring, Shaft Snap (For Output Shaft Bearing)[07.2001 -] KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T T=2.35,MARK B |
90520-36008 |
from US $0.87 |
||
|
33321M
|
33321M
90520-36009 Ring, Shaft Snap (For Output Shaft Bearing)[07.2001 -] KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T T=2.40,MARK C |
90520-36009 |
from US $0.87 |
||
|
33321M
|
33321M
90520-36010 Ring, Shaft Snap (For Output Shaft Bearing)[07.2001 -] KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T T=2.45,MARK D |
90520-36010 |
from US $0.87 |
||
|
33321M
|
33321M
90520-36011 Ring, Shaft Snap (For Output Shaft Bearing)[07.2001 -] KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T T=2.50,MARK E |
90520-36011 |
from US $0.87 |
||
|
33321M
|
33321M
90520-36012 Ring, Shaft Snap (For Output Shaft Bearing)[07.2001 -] KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T T=2.55,MARK F |
90520-36012 |
from US $0.87 |
||
|
33321M
|
33321M
90520-36013 Ring, Shaft Snap (For Output Shaft Bearing)[07.2001 -] KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T T=2.60,MARK G |
90520-36013 |
from US $1.24 |
||
|
33321T
|
33321T
90561-30005 Spacer (For Output Shaft)[09.2006 - 02.2015] KDY221,231..ST |
90561-30005 |
from US $12.01 |
||
|
33321V
|
33321V
90363-35039
Bearing (For Output Shaft Center)
[07.2001 - 05.2016] KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T |
90363-35039 |
— | ||
| replacement | |||||
|
33321V
|
33321V
90363-35078 Bearing (For Output Shaft Center)[07.2001 - 05.2016] KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T |
90363-35078 |
from US $46.96 |
||
|
33331
|
33331
33331-60040
Gear, Reverse
[07.2001 - 03.2012] KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T |
33331-60040 |
— | ||
| replacements | |||||
|
33331
|
33331
33331-60H00 Gear, Reverse[07.2001 - 03.2012] KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T |
33331-60H00 |
from US $191.02 |
||
|
33331
|
33331
33331-60H01 Gear, Reverse[07.2001 - 03.2012] KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T |
33331-60H01 |
from US $203.76 |
||
|
33331
|
33331
33331-60041 Gear, Reverse[03.2012 -] KDY221,231,251,261,LY23# |
33331-60041 |
from US $97.68 |
||
|
33332
|
33332
33033-35120 Gear, 2Nd[07.2001 - 05.2009] KDY221,231,251,261..EUR |
33033-35120 |
US $131.04 |
||
|
33332
|
33332
33033-60050 Gear, 2Nd[05.2009 -] KDY221,231,251,261..EUR |
33033-60050 |
from US $159.08 |
||
|
33332B
|
33332B
90364-47003
Bearing, Needle Roller (For 2Nd Gear)
[07.2001 - 04.2017] KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T |
90364-47003 |
— | ||
| replacement | |||||
|
33332B
|
33332B
90364-47014 Bearing, Needle Roller (For 2Nd Gear)[07.2001 - 04.2017] KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T |
90364-47014 |
from US $15.29 |
||
|
33333
|
33333
33034-60030
Gear, 3Rd
[02.2002 - 10.2015] KDY231;KDY221,230,25#,26#..125T,15T |
33034-60030 |
— | ||
| replacement | |||||
|
33333
|
33333
33034-60090 Gear, 3Rd[02.2002 - 10.2015] KDY231;KDY221,230,25#,26#..125T,15T |
33034-60090 |
from US $100.04 |
||
|
33333A
|
33333A
90364-38011 Bearing, Needle Roller (For 3Rd Gear)[07.2001 -] KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T |
90364-38011 |
from US $13.24 |
||
|
33335
|
33335
33032-60080
Gear, 1St
[02.2002 - 05.2009] KDY221,231,251,261..EUR |
33032-60080 |
— | ||
| replacement | |||||
|
33335
|
33335
33032-60081 Gear, 1St[02.2002 - 05.2009] KDY221,231,251,261..EUR |
33032-60081 |
from US $139.40 |
||
|
33335
|
33335
33032-60110
Gear, 1St
[05.2009 - 06.2011] KDY221,231..ST |
33032-60110 |
— | ||
| replacement | |||||
|
33335
|
33335
33032-60111 Gear, 1St[05.2009 - 06.2011] KDY221,231..ST |
33032-60111 |
from US $192 |
||
|
33335
|
33335
33032-60111 Gear, 1St[06.2011 -] KDY221,231..ST |
33032-60111 |
from US $192 |
||
|
33335B
|
33335B
90560-39002 Spacer(For 1St Gear Bearing)[07.2001 -] KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T |
90560-39002 |
from US $2.33 |
||
|
33335C
|
33335C
90364-39005
Bearing, Needle Roller(For 1St Gear)
[07.2001 - 04.2017] KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T |
90364-39005 |
— | ||
| replacement | |||||
|
33335C
|
33335C
90364-39016 Bearing, Needle Roller(For 1St Gear)[07.2001 - 04.2017] KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T |
90364-39016 |
from US $30.36 |
||
|
33336
|
33336
33336-26020 Gear, 5Th[04.2014 -] KDY221,231,251,261 |
33336-26020 |
from US $87.36 |
||
|
33336
|
33336
33336-35100
Gear, 5Th
[08.2001 - 12.2013] KDY231;KDY221,230,25#,26#..125T,15T |
33336-35100 |
— | ||
| replacement | |||||
|
33336
|
33336
33336-26020 Gear, 5Th[08.2001 - 12.2013] KDY231;KDY221,230,25#,26#..125T,15T |
33336-26020 |
from US $87.36 |
||
|
33336
|
33336
33336-35101 Gear, 5Th[12.2013 - 04.2014] KDY221,231,251,261 |
33336-35101 |
US $90.27 |
||
| replacement | |||||
|
33336
|
33336
33336-26020 Gear, 5Th[12.2013 - 04.2014] KDY221,231,251,261 |
33336-26020 |
from US $87.36 |
||
|
33348
|
33348
33348-35010 Washer, 1St Gear Thrust[07.2001 -] KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T |
33348-35010 |
from US $9.68 |
||
|
33348A
|
33348A
90250-05026 Pin, Straight (For Gear Thrust Washer)[07.2001 -] KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T |
90250-05026 |
from US $0.53 |
||
|
33349
|
33349
33346-35020
Washer, 5Th Gear Thrust
[07.2001 - 12.2007] KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T |
33346-35020 |
— | ||
| replacement | |||||
|
33349
|
33349
33346-71010 Washer, 5Th Gear Thrust[07.2001 - 12.2007] KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T |
33346-71010 |
from US $9.68 |
||
|
33349
|
33349
33346-71010 Washer, 5Th Gear Thrust[12.2007 -] KDY221,231,251,261,LY23# |
33346-71010 |
from US $9.68 |
||
|
33349C
|
33349C
90250-05026 Pin, Straight (For Gear Thrust Washer)[07.2001 -] KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T |
90250-05026 |
from US $0.53 |
||
|
33361
|
33361
33361-35040
Hub, Transmission Clutch, No.1
[07.2001 - 05.2009] KDY221,231,251,261..EUR |
33361-35040 |
— | ||
| replacement | |||||
|
33361
|
33361
33361-71010 Hub, Transmission Clutch, No.1[07.2001 - 05.2009] KDY221,231,251,261..EUR |
33361-71010 |
from US $68.84 |
||
|
33361
|
33361
33361-60050
Hub, Transmission Clutch, No.1
[05.2009 - 04.2012] KDY221,231..ST |
33361-60050 |
— | ||
| replacement | |||||
|
33361
|
33361
33361-71020 Hub, Transmission Clutch, No.1[05.2009 - 04.2012] KDY221,231..ST |
33361-71020 |
from US $71.96 |
||
|
33361
|
33361
33361-71020 Hub, Transmission Clutch, No.1[04.2012 -] KDY221,231..ST |
33361-71020 |
from US $71.96 |
||
|
33362
|
33362
33362-35030 Hub, Transmission Clutch, No.2[07.2001 - 05.2009] KDY221,231..ST |
33362-35030 |
from US $61.35 |
||
|
33362
|
33362
33362-60030
Hub, Transmission Clutch, No.2
[04.2012 - 05.2013] KDY221,231..ST |
33362-60030 |
— | ||
| replacement | |||||
|
33362
|
33362
33362-60031 Hub, Transmission Clutch, No.2[04.2012 - 05.2013] KDY221,231..ST |
33362-60031 |
from US $52.55 |
||
|
33362
|
33362
33362-60031 Hub, Transmission Clutch, No.2[04.2014 -] KDY221,231,251,261,LY23# |
33362-60031 |
from US $52.55 |
||
|
33364
|
33364
33364-35050 Sleeve, Transmission Hub, No.2[07.2001 - 05.2009] KDY221,231..ST |
33364-35050 |
from US $99.08 |
||
|
33364
|
33364
33364-60070 Sleeve, Transmission Hub, No.2[04.2012 - 05.2013] KDY221,231..ST |
33364-60070 |
from US $73.03 |
||
|
33365
|
33365
33365-35060 Key, Synchromesh Shifting, No.1[08.2004 -] KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T |
33365-35060 |
from US $1.89 |
||
|
33365A
|
33365A
90501-08212 Spring, Compression[08.2001 - 04.2012] KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T |
90501-08212 |
from US $1.29 |
||
|
33366
|
33366
33366-35030 Key, Synchromesh Shifting, No.2[07.2001 - 05.2009] KDY221,231..ST |
33366-35030 |
from US $3.18 |
||
|
33366
|
33366
33366-35050 Key, Synchromesh Shifting, No.2[04.2012 - 05.2013] KDY221,231..ST |
33366-35050 |
from US $3.30 |
||
|
33367
|
33367
33367-35030 Ring, Synchronizer, No.1[07.2001 - 05.2009] KDY221,231,251,261..EUR NO.2 |
33367-35030 |
from US $29.68 |
||
|
33367
|
33367
33367-35080 Ring, Synchronizer, No.1[07.2001 - 05.2009] KDY221,231,251,261..EUR NO.1 |
33367-35080 |
from US $29.62 |
||
|
33368
|
33368
33368-35030 Ring, Synchronizer, No.2[07.2001 - 04.2012] KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T NO.1 |
33368-35030 |
from US $32.99 |
||
|
33368
|
33368
33368-35040 Ring, Synchronizer, No.2[07.2001 - 04.2012] KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T NO.2 |
33368-35040 |
from US $32.31 |
||
|
33368
|
33368
33368-35050
Ring, Synchronizer, No.2
[04.2012 - 09.2015] KDY221,231,251,261,LY23# NO.1 |
33368-35050 |
— | ||
| replacement | |||||
|
33368
|
33368
33368-35080 Ring, Synchronizer, No.2[04.2012 - 09.2015] KDY221,231,251,261,LY23# NO.1 |
33368-35080 |
from US $21.47 |
||
|
33368
|
33368
33368-35070
Ring, Synchronizer, No.2
[04.2012 - 09.2015] KDY221,231,251,261,LY23# NO.2 |
33368-35070 |
— | ||
| replacement | |||||
|
33368
|
33368
33368-35090 Ring, Synchronizer, No.2[04.2012 - 09.2015] KDY221,231,251,261,LY23# NO.2 |
33368-35090 |
from US $27.26 |
||
|
33369
|
33369
33369-35011 Ring, Synchronizer, No.3[07.2001 - 05.2009] KDY221,231,251,261 |
33369-35011 |
from US $27.34 |
||
|
33384A
|
33384A
33384-60090
Ring, Synchronizer, Outer No.3
[05.2009 - 05.2016] KDY221,231,251,261 |
33384-60090 |
— | ||
| replacement | |||||
|
33384A
|
33384A
33384-26010 Ring, Synchronizer[05.2009 - 05.2016] KDY221,231,251,261 |
33384-26010 |
from US $24.20 |
||
|
33391
|
33391
33391-25030 Spring, Synchromesh Shifting Key (For No.3 Clutch Hub)[07.2001 - 04.2012] KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T |
33391-25030 |
from US $1.38 |
||
|
33392
|
33392
33392-14020 Spring, Synchromesh Shifting Key (For No.3 Clutch Hub)[07.2001 - 05.2009] KDY221,231,251,261 |
33392-14020 |
US $1.61 |
||
|
33392
|
33392
33392-60020 Spring, Synchromesh Shifting Key, No.3[05.2009 - 01.2012] KDY221,231,251,261 NO.1 |
33392-60020 |
from US $2.38 |
||
|
33392
|
33392
33392-60030 Spring, Synchromesh Shifting Key, No.3[05.2009 - 01.2012] KDY221,231,251,261 NO.2 |
33392-60030 |
from US $2.36 |
||
|
33392
|
33392
33392-60040 Spring, Synchromesh Shifting Key, No.3[01.2012 -] KDY221,231,251,261 |
33392-60040 |
from US $1.88 |
||
|
33394
|
33394
33394-35040 Key, Synchromesh Shifting, No.3[07.2001 - 05.2009] KDY221,231,251,261 |
33394-35040 |
from US $11.29 |
||
|
33394
|
33394
33394-60020 Key, Synchromesh Shifting, No.3[05.2009 -] KDY221,231,251,261 |
33394-60020 |
from US $4.48 |
||
|
33395
|
33395
33395-35041 Sleeve, Transmission Hub, No.3[07.2001 - 05.2009] KDY221,231,251,261 |
33395-35041 |
US $73.56 |
||
|
33395
|
33395
33395-60050 Sleeve, Transmission Hub, No.3[05.2009 -] KDY221,231,251,261 |
33395-60050 |
from US $79.13 |
||
|
33402
|
33402
33402-35060 Gear Sub-Assy, Reverse Idler[07.2001 -] KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T |
33402-35060 |
from US $139.40 |
||
|
33411A
|
33411A
90365-25019 Bearing Or Roller(For Counter Gear Front)[07.2001 -] KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T |
90365-25019 |
from US $56.53 |
||
|
33411D
|
33411D
90520-56002 Ring, Counter Gear Front Bearing Snap, No.1[07.2001 -] KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T T=1.07,OD=62 |
90520-56002 |
from US $1.14 |
||
|
33411P
|
33411P
90365-34005 Bearing Or Roller(For Counter Gear Rear)[07.2001 -] KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T |
90365-34005 |
from US $27.36 |
||
|
33411Q
|
33411Q
90520-23057 Ring, Counter Gear Front Bearing Snap, No.2[07.2001 -] KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T T=2.10,MARK A |
90520-23057 |
from US $0.87 |
||
|
33411Q
|
33411Q
90520-23058 Ring, Counter Gear Front Bearing Snap, No.2[07.2001 -] KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T T=2.15,MARK B |
90520-23058 |
from US $0.87 |
||
|
33411Q
|
33411Q
90520-23059 Ring, Counter Gear Front Bearing Snap, No.2[07.2001 -] KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T T=2.20,MARK C |
90520-23059 |
from US $1.24 |
||
|
33411Q
|
33411Q
90520-23060 Ring, Counter Gear Front Bearing Snap, No.2[07.2001 -] KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T T=2.25,MARK D |
90520-23060 |
from US $0.87 |
||
|
33411Q
|
33411Q
90520-23061 Ring, Counter Gear Front Bearing Snap, No.2[07.2001 -] KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T T=2.30,MARK E |
90520-23061 |
from US $0.87 |
||
|
33411Q
|
33411Q
90520-23062 Ring, Counter Gear Front Bearing Snap, No.2[07.2001 -] KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T T=2.35,MARK F |
90520-23062 |
US $1.24 |
||
|
33421
|
33421
33421-26110 Gear, Counter[04.2014 -] KDY221,231,251,261 |
33421-26110 |
from US $299.20 |
||
|
33421
|
33421
33421-60170
Gear, Counter
[02.2002 - 04.2012] KDY231;KDY221,230,25#,26#..125T,15T |
33421-60170 |
— | ||
| replacement | |||||
|
33421
|
33421
33421-26110 Gear, Counter[02.2002 - 04.2012] KDY231;KDY221,230,25#,26#..125T,15T |
33421-26110 |
from US $299.20 |
||
|
33421
|
33421
33421-71010
Gear, Counter
[04.2012 - 05.2013] KDY221,231,251,261..EUR |
33421-71010 |
— | ||
| replacement | |||||
|
33421
|
33421
33421-26110 Gear, Counter[04.2012 - 05.2013] KDY221,231,251,261..EUR |
33421-26110 |
from US $299.20 |
||
|
33421
|
33421
33421-71011
Gear, Counter
[05.2013 - 04.2014] KDY221,231,251,261..EUR |
33421-71011 |
— | ||
| replacement | |||||
|
33421
|
33421
33421-26110 Gear, Counter[05.2013 - 04.2014] KDY221,231,251,261..EUR |
33421-26110 |
from US $299.20 |
||
|
33421R
|
33421R
90520-22016 Ring, Shaft Snap(For Counter Gear Rear)[07.2001 - 05.2009] KDY221,231,251,261 T=2.85,MARK A |
90520-22016 |
from US $0.90 |
||
|
33421R
|
33421R
90520-22017 Ring, Shaft Snap(For Counter Gear Rear)[07.2001 - 05.2009] KDY221,231,251,261 T=2.90,MARK B |
90520-22017 |
from US $0.52 |
||
|
33421R
|
33421R
90520-22018 Ring, Shaft Snap(For Counter Gear Rear)[07.2001 - 05.2009] KDY221,231,251,261 T=2.95,MARK C |
90520-22018 |
from US $0.69 |
||
|
33421R
|
33421R
90520-22019 Ring, Shaft Snap(For Counter Gear Rear)[07.2001 - 05.2009] KDY221,231,251,261 T=3.00,MARK D |
90520-22019 |
US $1.08 |
||
|
33421R
|
33421R
90520-22020 Ring, Shaft Snap(For Counter Gear Rear)[07.2001 - 05.2009] KDY221,231,251,261 T=3.05,MARK E |
90520-22020 |
from US $0.52 |
||
|
33421R
|
33421R
90520-22021 Ring, Shaft Snap(For Counter Gear Rear)[07.2001 - 05.2009] KDY221,231,251,261 T=3.10,MARK F |
90520-22021 |
US $0.52 |
||
|
33421R
|
33421R
90520-22022 Ring, Shaft Snap(For Counter Gear Rear)[07.2001 - 05.2009] KDY221,231,251,261 T=3.15,MARK G |
90520-22022 |
US $1.08 |
||
|
33421R
|
33421R
90520-33021 Ring, Snap(For 4Th Washer Retaining Ring)[05.2009 -] KDY221,231,251,261 T=1.00,NO.2 |
90520-33021 |
from US $2.15 |
||
|
33428
|
33428
33046-35100 Gear, Countershaft 5Th[08.2001 - 05.2009] KDY231;KDY221,230,25#,26#..125T,15T |
33046-35100 |
US $199.47 |
||
| replacement | |||||
|
33428
|
33428
33046-35101 Gear, Countershaft 5Th[08.2001 - 05.2009] KDY231;KDY221,230,25#,26#..125T,15T |
33046-35101 |
US $199.47 |
||
|
33428
|
33428
33428-26020 Gear, Countershaft 5Th[04.2014 -] KDY221,231,251,261 |
33428-26020 |
from US $122.99 |
||
|
33428
|
33428
33428-60040
Gear, Countershaft 5Th
[05.2009 - 05.2013] KDY221,231,251,261..EUR |
33428-60040 |
— | ||
| replacement | |||||
|
33428
|
33428
33428-26020 Gear, Countershaft 5Th[05.2009 - 05.2013] KDY221,231,251,261..EUR |
33428-26020 |
from US $122.99 |
||
|
33428
|
33428
33428-60041
Gear, Countershaft 5Th
[05.2013 - 04.2014] KDY221,231,251,261..EUR |
33428-60041 |
— | ||
| replacement | |||||
|
33428
|
33428
33428-26020 Gear, Countershaft 5Th[05.2013 - 04.2014] KDY221,231,251,261..EUR |
33428-26020 |
from US $122.99 |
||
|
33428B
|
33428B
90364-30009 Bearing (For Counter 5Th Gear)[07.2001 -] KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T |
90364-30009 |
from US $33.33 |
||
|
33451
|
33451
33451-35030 Shaft, Reverse Idler Gear[07.2001 -] KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T |
33451-35030 |
from US $14.33 |
||
|
33481
|
33481
33481-35130 Gear, Speedometer Drive (Mtm)[09.2006 - 09.2011] KDY221,231..ST N=10,MARK 10X31-33 |
33481-35130 |
from US $16.60 |
||
|
33481
|
33481
33481-35190 Gear, Speedometer Drive (Mtm)[09.2011 - 02.2015] KDY221,231..ST N=11,MARK 11X31-33 |
33481-35190 |
US $15.54 |
||
|
33481A
|
33481A
90360-06004 Ball, Detent(For Gear Shift Head No.4)[07.2001 -] KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY22#,23# |
90360-06004 |
from US $0.84 |
||
| replacement | |||||
|
33481A
|
33481A
90080-36191
Ball, Check Valve
[07.2001 -] KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY22#,23# |
90080-36191 |
— | ||
|
33481B
|
33481B
90520-28030 Ring Or Spacer (For Mtm Speedometer Drive Gear)[09.2006 - 02.2015] KDY221,231..ST T=1.5 |
90520-28030 |
from US $1.79 |
||
