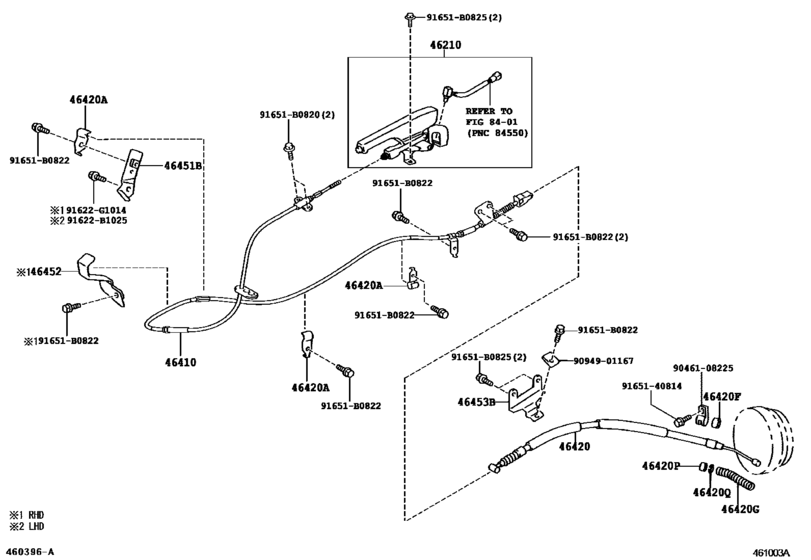

Parking Brake & Cable ([09.2007 - 09.2011] (0709-1109)WT ; (1109-1310)KDY221,231..GEN ; (11 09- )LY230) Diagram Toyota DYNA/ TOYOACE
- Year
- 2006 - 2015
- Sales region
- Europe
- Frame
- KDY231
- ENGINE
- 1KDFTV
- DESTINATION
- EUR
- From
- 09.2006
- To
- 02.2015
- Loading Capacity
- 15T
- Driver's Position
- RHD
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46210
|
46210
46210-37091-B0 Lever Assy, Parking Brake[10.2002 - 05.2015] KDY22#,23#,25#,LY22#,23#..RHD DK.CHARCOAL,TRIM1# |
46210-37091-B0 |
US $152.88 |
||
|
46410
|
46410
46410-25150 Cable Assy, Parking Brake, No.1[07.2001 - 09.2007] KDY221,23#,25#,LY230..RHD..WT |
46410-25150 |
US $109.88 |
||
|
46410
|
46410
46410-25151
Cable Assy, Parking Brake, No.1
[09.2007 -] KDY221,231,251,LY230..RHD..WT |
46410-25151 |
— | ||
|
46420
|
46420
46420-25430 Cable Assy, Parking Brake, No.2[04.2002 - 09.2011] KDY231,251,261..WT..IV3 |
46420-25430 |
US $39.31 |
||
|
46420
|
46420
46420-25490 Cable Assy, Parking Brake, No.2[09.2011 -] KDY231,251,261..WT..IV3 |
46420-25490 |
US $47.04 |
||
|
46420A
|
46420A
46411-25010 Clamp, No.1(For Parking Brake Cable)[09.2007 -] KDY221,231,251,261,LY230 |
46411-25010 |
US $2.80 |
||
|
46420F
|
46420F
90303-10001 Seal, Dust(For Parking Brake Cable)[07.2001 -] LY235;KDY221,23#,25#,26#,LY230..WT |
90303-10001 |
US $2.15 |
||
|
46420G
|
46420G
90501-14164 Spring(For Parking Cable Inner Wire Set)[04.2002 - 09.2011] KDY231,251,261..WT..IV3 L=138 |
90501-14164 |
US $2.87 |
||
|
46420P
|
46420P
90560-09045 Spacer, Parking Brake[04.2002 -] KDY221,23#,25#,26#,LY230..WT |
90560-09045 |
US $1.25 |
||
|
46420Q
|
46420Q
96160-00700 Ring, E(For Chain Tensioner Slipper)[07.2001 -] LY235;KDY221,23#,25#,26#,LY230..WT |
96160-00700 |
US $3.58 |
||
|
46451B
|
46451B
46451-25050 Bracket, Parking Brake Cable Support[07.2001 -] KDY22#,23#,25#,LY220,230..RHD |
46451-25050 |
US $7.43 |
||
|
46452
|
46452
33826-37210 Bracket, Transmission Control Cable, No.3[07.2001 -] KDY22#,23#,25#,LY220,230..RHD |
33826-37210 |
US $10.92 |
||
|
46453B
|
46453B
46453-25040 Bracket, Cable Support, No.3[07.2001 - 08.2007] KDY221,23#,25#,26#,LY230..WT |
46453-25040 |
US $15.43 |
||
|
46453B
|
46453B
46453-25070 Bracket, Cable Support, No.3[09.2007 -] KDY221,231,251,261..WT |
46453-25070 |
US $9.76 |
||
|
91622B1025
|
91622B1025
91622-B1025 Bolt(For Front Transaxle Case Cover) |
91622-B1025 |
US $3.05 |
||
|
91622G1014
|
91622G1014
91622-G1014 BOLT WWASHER |
91622-G1014 |
US $1.05 |
||
|
91651B0820
|
91651B0820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.99 |
||
| replacement | |||||
|
91651B0820
|
91651B0820
90080-11347 New Genuine Part |
90080-11347 |
US $3.11 |
||
|
91651B0822
|
91651B0822
91651-B0822 BOLT WWASHER |
91651-B0822 |
from US $0.92 |
||
|
91651B0825
|
91651B0825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.84 |
||
|
9046108225
|
9046108225
90461-08225 Clamp, No.3(For Parking Brake Cable) |
90461-08225 |
US $2.51 |
||
|
9094901167
|
9094901167
90949-01167 Clamp, No.1(For Parking Brake Cable) |
90949-01167 |
US $3.99 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.23 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
