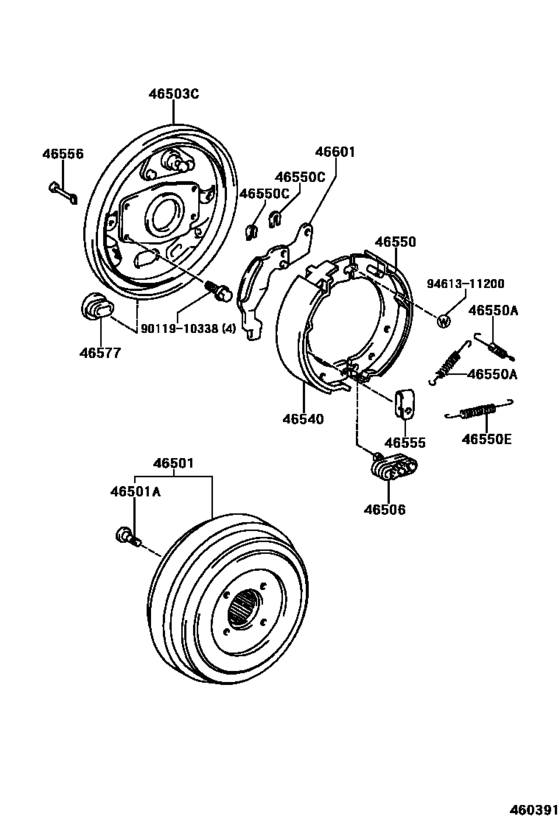

Parking Brake & Cable ([07.2001 - ] (0107- )LY235 ; (0107- )KDY221,23#,25#,26# ,LY230..WT) Diagram Toyota DYNA/ TOYOACE
- Year
- 2006 - 2015
- Sales region
- Europe
- Frame
- KDY231
- ENGINE
- 1KDFTV
- DESTINATION
- EUR
- From
- 09.2006
- To
- 02.2015
- Loading Capacity
- 15T
- Driver's Position
- RHD
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46501
|
46501
46501-25100 Drum Sub-Assy, Parking Brake[07.2001 -] LY235..ST;KDY23#,25#,26#,LY230..WT..IV3 |
46501-25100 |
US $147.60 |
||
|
46501A
|
46501A
90114-11124 Bolt (For Transfer Output Shaft Companion Flange)[07.2001 -] LY235..ST;KDY23#,25#,26#,LY230..WT..IV3 |
90114-11124 |
from US $1.29 |
||
|
46503C
|
46503C
46503-25350 Plate Sub-Assy, Parking Brake[09.2011 -] KDY231,251,261..WT..IV3 |
46503-25350 |
US $132.50 |
||
|
46503C
|
46503C
46503-37020 Plate Sub-Assy, Parking Brake[04.2002 - 09.2011] KDY231,251,261..WT..IV3 |
46503-37020 |
US $57.12 |
||
|
46506
|
46506
46506-36020 Adjuster Sub-Assy, Parking Brake Shoe, Rh Or Center[07.2001 -] LY235;KDY221,23#,25#,26#,LY230..WT |
46506-36020 |
US $24.19 |
||
|
46540
|
46540
46540-25010 Shoe Assy, Parking Brake, Rh Or Center No.1[07.2001 -] LY235;KDY221,23#,25#,26#,LY230..WT |
46540-25010 |
from US $15.41 |
||
|
46550
|
46550
46550-25010 Shoe Assy, Parking Brake, Rh Or Center No.2[07.2001 -] LY235;KDY221,23#,25#,26#,LY230..WT |
46550-25010 |
from US $15.76 |
||
|
46550A
|
46550A
90506-18012 Spring, Tension, No.1(For Parking Brake Shoe Return)[07.2001 -] LY235;KDY221,23#,25#,26#,LY230..WT |
90506-18012 |
from US $3.94 |
||
|
46550C
|
46550C
90213-06003 Washer, Type C(For Parking Brake Shoe)[07.2001 -] LY235;KDY221,23#,25#,26#,LY230..WT |
90213-06003 |
from US $0.90 |
||
|
46550E
|
46550E
90506-14048 Spring, Tension, No.2(For Parking Brake Shoe Return)[07.2001 -] LY235;KDY221,23#,25#,26#,LY230..WT |
90506-14048 |
from US $2.22 |
||
|
46555
|
46555
46555-35010 Spring, Brake Shoe Hold Down[07.2001 -] LY235;KDY221,23#,25#,26#,LY230..WT |
46555-35010 |
from US $1.21 |
||
|
46556
|
46556
46556-35010 Pin, Shoe Hold Down Spring[07.2001 -] LY235;KDY221,23#,25#,26#,LY230..WT |
46556-35010 |
from US $1.21 |
||
|
46577
|
46577
46577-36010 Cover, Adjusting Cam Hole[07.2001 -] LY235;KDY221,23#,25#,26#,LY230..WT |
46577-36010 |
US $7.17 |
||
|
46601
|
46601
46601-25011 Lever Sub-Assy, Parking Brake Shoe[07.2001 -] LY235;KDY221,23#,25#,26#,LY230..WT |
46601-25011 |
US $29.40 |
||
|
9011910338
|
9011910338
90119-10338 New Genuine Part |
90119-10338 |
US $1.79 |
||
|
9461311200
|
9461311200
94613-11200 WASHER |
94613-11200 |
US $1.25 |
