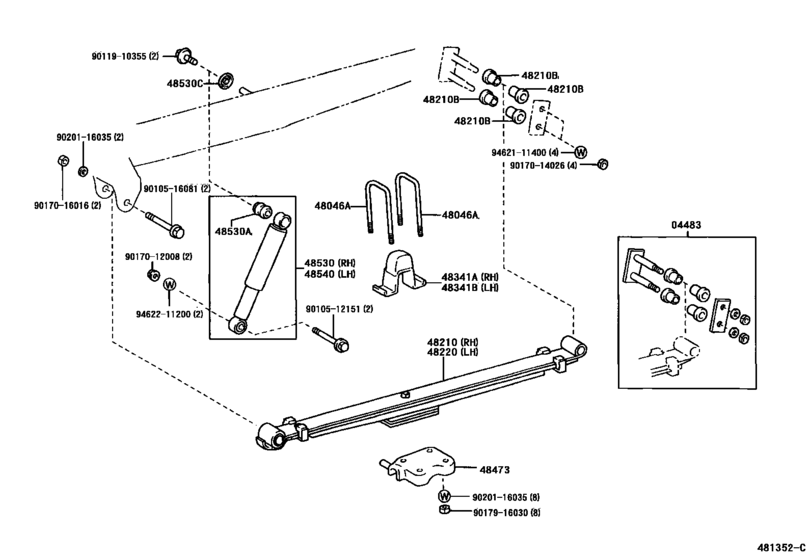

Rear Spring & Shock Absorber ([07.2001 - ] (0107- )WT..IV3) Diagram Toyota DYNA/ TOYOACE
- Year
- 2001 - 2006
- Sales region
- Europe
- Frame
- KDY260
- ENGINE
- 2KDFTV
- DESTINATION
- EUR
- From
- 08.2001
- To
- 09.2006
- Loading Capacity
- 15T
- Driver's Position
- LHD
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04483
|
04483
04483-25030 Shackle Kit, Rear Spring[07.2001 -] LY225,235;KDY22#,23#,25#,26#,LY220,230..ARL,EUR,SA |
04483-25030 |
US $127.92 |
||
|
48046A
|
48046A
90117-16007 Bolt, U(For Rear Spring)[07.2001 -] KDY23#,25#,26#,LY230..WT..IV3 L=225 |
90117-16007 |
US $42.84 |
||
|
48210
|
48210
48210-2E340 Spring Assy, Rear RhREAR RH [07.2001 -] KDY23#,25#,26#,LY230..WT..IV3 3-LEAF |
48210-2E340 |
US $524.16 |
||
|
48210B
|
48210B
90385-18023 Bush(For Rear Spring Pin)[07.2001 -] LY225,235;KDY22#,23#,25#,26#,LY220,230..ARL,EUR,SA |
90385-18023 |
US $18.31 |
||
|
48220
|
48220
48210-2E340 Spring Assy, Rear RhREAR RH [07.2001 -] KDY23#,25#,26#,LY230..WT..IV3 3-LEAF |
48210-2E340 |
US $524.16 |
||
|
48341A
|
48341A
48341-25090 Bumper, Rear Spring, No.1 RhREAR SPRING, NO.1 RH [07.2001 -] KDY23#,25#,26#,LY230..WT..IV3 |
48341-25090 |
US $43.83 |
||
|
48341B
|
48341B
48341-25090 Bumper, Rear Spring, No.1 RhREAR SPRING, NO.1 RH [07.2001 -] KDY23#,25#,26#,LY230..WT..IV3 |
48341-25090 |
US $43.83 |
||
|
48473
|
48473
48046-25110 Seat Sub-Assy, Spring U Bolt, Rh[07.2001 -] KDY23#,25#,26#,LY230..WT..IV3 |
48046-25110 |
US $65.69 |
||
|
48530
|
48530
48531-80228 Absorber Assy, Shock, Rear Rh[07.2001 -] LY235..ST;KDY23#,25#,26#,LY230..WT..IV3 MARK 48531-25250 |
48531-80228 |
US $72.07 |
||
|
48530A
|
48530A
90385-16010 Bush(For Front Shock Absorber Rh)[07.2001 -] LY225,235..ST;KDY22#,23#,25#,26#,LY220,230..ARL,EUR,SA |
90385-16010 |
from US $2.61 |
||
|
48530C
|
48530C
90948-03004 Retainer, Cushion, No.1(For Front Shock Absorber)[07.2001 -] LY225,235..ST;KDY22#,23#,25#,26#,LY220,230..ARL,EUR,SA |
90948-03004 |
from US $1.31 |
||
|
48540
|
48540
48531-80228 Absorber Assy, Shock, Rear Rh[07.2001 -] LY235..ST;KDY23#,25#,26#,LY230..WT..IV3 MARK 48531-25250 |
48531-80228 |
US $72.07 |
||
|
9010512151
|
9010512151
90105-12151 Bolt(For Torque Arm Setting) |
90105-12151 |
from US $2.57 |
||
|
9010516081
|
9010516081
90105-16081 New Genuine Part |
90105-16081 |
US $13.98 |
||
|
9011910355
|
9011910355
90119-10355 Washer, Rear Shock Absorber Cushion, No.2 |
90119-10355 |
from US $0.99 |
||
|
9017012008
|
9017012008
90170-12008 NUT |
90170-12008 |
US $2.87 |
||
|
9017014026
|
9017014026
90170-14026 Nut(For Front Support To Front Shock Absorber Rh) |
90170-14026 |
from US $0.94 |
||
|
9017016016
|
9017016016
90170-16016 NUT HEXAGON |
90170-16016 |
from US $1.52 |
||
|
9017916030
|
9017916030
90179-16030 NUT |
90179-16030 |
US $3.40 |
||
|
9020116035
|
9020116035
90201-16035 New Genuine Part |
90201-16035 |
US $2.15 |
||
|
9462111400
|
9462111400
94621-11400 WASHER |
94621-11400 |
from US $2.87 |
||
|
9462211200
|
9462211200
94622-11200 WASHER |
94622-11200 |
US $3.58 |
