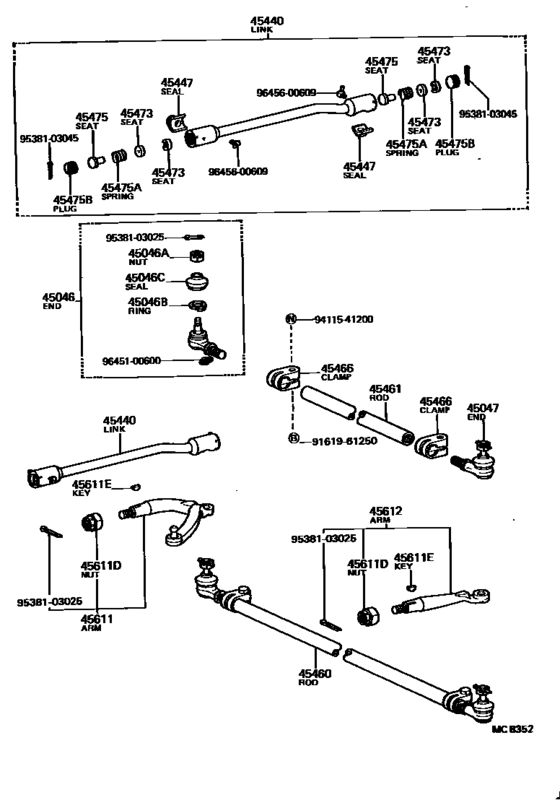

Front Steering Gear & Link ([09.1984 - ] (8409- )RU75,85) Diagram Toyota DYNA/ TOYOACE
- Year
- 1984 - 1987
- Sales region
- Europe
- Frame
- RU75
- body
- TR
- ENGINE
- 22R
- DESTINATION
- GEN
- From
- 09.1984
- To
- 08.1987
- Gear Shift Type
- 5F
- Deck,cab
- T3
- Driver's Position
- LHD
- Building Condition
- CBU
- Deck(Material)
- TB
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45046
|
45046
45046-39095
End Sub-Assy, Tie Rod, Rh
[09.1984 - 08.1987] RU75,85 |
45046-39095 |
— | ||
| replacement | |||||
|
45046
|
45046
45046-29085 End Sub-Assy, Tie Rod, Rh[09.1984 - 08.1987] RU75,85 |
45046-29085 |
US $73.42 |
||
|
45046A
|
45046A
90171-14041 Nut, Castle(For Tie Rod End)[09.1984 - 08.1987] RU75,85 |
90171-14041 |
US $3.93 |
||
|
45046B
|
45046B
90522-34002 Ring, Set(For Tie Rod End Dust Seal)[09.1984 - 08.1987] RU75,85 |
90522-34002 |
US $1.79 |
||
|
45046C
|
45046C
45479-36020 Seal, Dust(For Tie Rod End)[09.1984 - 08.1987] RU75,85 |
45479-36020 |
US $7.57 |
||
|
45047
|
45047
45047-39065
End Sub-Assy, Tie Rod, Lh
[09.1984 - 08.1987] RU75,85 |
45047-39065 |
— | ||
| replacement | |||||
|
45047
|
45047
45047-29035 End Sub-Assy, Tie Rod, Lh[09.1984 - 08.1987] RU75,85 |
45047-29035 |
US $73.42 |
||
|
45440
|
45440
45441-39245
Link Assy, Steering Drag
[09.1984 - 08.1987] RU75,85..GEN W/POWER STEERING |
45441-39245 |
— | ||
|
45440
|
45440
45441-39255
Link Assy, Steering Drag
[09.1984 - 08.1987] RU75,85..GEN |
45441-39255 |
— | ||
|
45447
|
45447
45447-36070
Seal, Drag Link Dust
[09.1984 - 08.1987] RU75,85,YU6#,7#,8#..LHD |
45447-36070 |
— | ||
|
45460
|
45460
45460-39135 Rod Assy, Tie, Rh[09.1984 - 08.1987] RU75,85 |
45460-39135 |
US $396.03 |
||
|
45461
|
45461
45461-36030
Rod, Steering Tie
[09.1984 - 08.1987] RU75,85 |
45461-36030 |
— | ||
|
45466
|
45466
45466-36010 Clamp, Tie Rod End[09.1984 - 08.1987] RU75,85 |
45466-36010 |
from US $6.22 |
||
|
45473
|
45473
45473-55010 Seat, Ball Stud[09.1984 - 08.1987] RU75,85,YU6#,7#,8# |
45473-55010 |
US $3.84 |
||
|
45475
|
45475
45475-36030
Seat, Steering Link Joint Spring
[09.1984 - 08.1987] RU75,85,YU6#,7#,8# |
45475-36030 |
— | ||
|
45475A
|
45475A
90501-55001
Spring, Compression(For Steering Link Joint)
[09.1984 - 08.1987] RU75,85,YU6#,7#,8# |
90501-55001 |
— | ||
|
45475B
|
45475B
90340-28002
Plug, Straight Screw(For Steering Link Joint)
[09.1984 - 08.1987] RU75,85,YU6#,7#,8# |
90340-28002 |
— | ||
|
45611
|
45611
45601-39155 Arm, Steering Knuckle, RhSTEERING KNUCKLE, RH [09.1984 - 08.1987] RU75,85..GEN |
45601-39155 |
US $219.86 |
||
|
45611D
|
45611D
90179-22007 Nut(For Steering Knuckle Arm)[09.1984 - 08.1987] RU75,85,YU6#,7#,8# |
90179-22007 |
US $4.08 |
||
|
45611E
|
45611E
90280-07012 Key, Woodruff(For Steering Idler Arm)[09.1984 - 08.1987] RU75,85,YU6#,7#,8# |
90280-07012 |
US $3.20 |
||
|
45612
|
45612
45612-39135 Arm, Steering Knuckle, LhSTEERING KNUCKLE, LH [09.1984 - 08.1987] RU75,85..GEN |
45612-39135 |
US $101.92 |
||
|
9161961250
|
9161961250
91619-61250 Bolt(For Transmission Case & Engine Setting) |
91619-61250 |
from US $1.95 |
||
|
9411541200
|
9411541200
94115-41200
Nut
|
94115-41200 |
— | ||
| replacement | |||||
|
9411541200
|
9411541200
94130-61200 Nut |
94130-61200 |
from US $0.98 |
||
|
9538103025
|
9538103025
95381-03025 PIN |
95381-03025 |
from US $0.78 |
||
|
9538103045
|
9538103045
95381-03045 New Genuine Part |
95381-03045 |
US $2.62 |
||
|
9645100600
|
9645100600
96451-00600 Fitting, Grease Small(For Tail Gate Lock Link) |
96451-00600 |
from US $1.44 |
||
|
9645600609
|
9645600609
96456-00609 FITTING GREASE |
96456-00609 |
US $4.30 |
||
