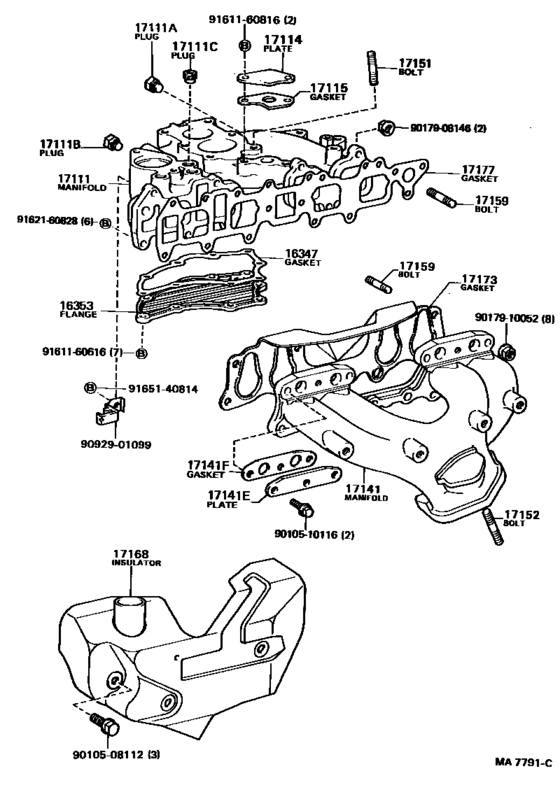

Manifold ([09.1984 - ] (8409- )22R) Diagram Toyota DYNA/ TOYOACE
- Year
- 1984 - 1987
- Sales region
- Europe
- Frame
- RU75
- body
- TR
- ENGINE
- 22R
- DESTINATION
- GEN
- From
- 09.1984
- To
- 08.1987
- Gear Shift Type
- 5F
- Deck,cab
- T3
- Driver's Position
- LHD
- Building Condition
- CBU
- Deck(Material)
- TB
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16347
|
16347
16347-35030
Gasket, Water By-Pass
[09.1984 - 08.1987] 22R..RU75,85 |
16347-35030 |
— | ||
| replacement | |||||
|
16347
|
16347
16347-35040
Gasket, Water By-Pass
[09.1984 - 08.1987] 22R..RU75,85 |
16347-35040 |
— | ||
|
16353
|
16353
16353-35030 Flange, Water By-Pass[09.1984 - 08.1987] 22R..RU75,85 |
16353-35030 |
US $91.73 |
||
|
17111
|
17111
17111-35040 Manifold, Intake[09.1984 - 08.1987] 22R..RU75,85 |
17111-35040 |
US $422.24 |
||
|
17111A
|
17111A
90345-51025 Plug, W/head Taper Screw, No.2[09.1984 - 08.1987] 22R..RU75,85 |
90345-51025 |
US $3.76 |
||
|
17111B
|
17111B
90345-53007 Plug, W/head Taper Screw, No.1[09.1984 - 08.1987] 22R..RU75,85 |
90345-53007 |
from US $3.53 |
||
|
17111C
|
17111C
90340-16002
Plug, W/head Straight Screw, No.2
[09.1984 - 08.1987] 22R..RU75,85 |
90340-16002 |
— | ||
|
17114
|
17114
25617-38010 Plate, Intake Manifold Hole CoverINTAKE MANIFOLD HOLE COVER [09.1984 - 08.1987] 22R..RU75,85 |
25617-38010 |
US $8.88 |
||
|
17115
|
17115
25628-38010 Gasket, Egr Inlet[09.1984 - 08.1987] 22R..RU75,85 |
25628-38010 |
US $4.37 |
||
| replacement | |||||
|
17115
|
17115
25628-35030 Gasket, Intake Manifold Hole CoverEGR INLET [09.1984 - 08.1987] 22R..RU75,85 |
25628-35030 |
US $2.24 |
||
|
17141
|
17141
17141-35100
Manifold, Exhaust
[09.1984 - 06.1986] 22R..RU75,85 |
17141-35100 |
— | ||
|
17141
|
17141
17141-35130 Manifold, ExhaustEXHAUST [06.1986 - 08.1987] 22R..RU75,85 |
17141-35130 |
US $340.70 |
||
|
17141E
|
17141E
17148-35030 Plate, Exhaust Manifold[09.1984 - 06.1986] 22R..RU75,85 |
17148-35030 |
US $18.93 |
||
|
17141F
|
17141F
17378-35010 Gasket(For Exhaust Manifold Plate)[09.1984 - 06.1986] 22R..RU75,85 |
17378-35010 |
US $15.43 |
||
| replacement | |||||
|
17141F
|
17141F
17378-35020 Gasket(For Exhaust Manifold Plate)[09.1984 - 06.1986] 22R..RU75,85 |
17378-35020 |
from US $7.25 |
||
|
17151
|
17151
90116-08051
Bolt, Stud(For Manifold To Carburetor)
[09.1984 - 08.1987] 22R..RU75,85 |
90116-08051 |
— | ||
|
17152
|
17152
90116-10087 Bolt, Stud(For Turbocharger)[09.1984 - 08.1987] 22R..RU75,85 |
90116-10087 |
from US $2.30 |
||
|
17159
|
17159
90116-08172 Bolt, Stud(For Manifold To Cylinder Head)[09.1984 - 08.1987] 22R..RU75,85 INTAKE MANIFOLD SIDE |
90116-08172 |
US $2.80 |
||
|
17159
|
17159
90116-10064 Bolt, Stud(For Manifold To Cylinder Head)[09.1984 - 08.1987] 22R..RU75,85 EXHAUST MANIFOLD SIDE,LWR |
90116-10064 |
US $3.20 |
||
|
17159
|
17159
90116-10067 Bolt, Stud(For Manifold To Cylinder Head)[09.1984 - 08.1987] 22R..RU75,85 EXHAUST MANIFOLD SIDE,UPR |
90116-10067 |
from US $1.44 |
||
|
17168
|
17168
17167-35090 Insulator, Exhaust Manifold Heat, No.2EXHAUST MANIFOLD HEAT, NO.2 [09.1984 - 08.1987] 22R..RU75,85 |
17167-35090 |
US $91.73 |
||
| replacement | |||||
|
17168
|
17168
17167-35180
Insulator, Exhaust Manifold Heat, No.2
[09.1984 - 08.1987] 22R..RU75,85 |
17167-35180 |
— | ||
|
17173
|
17173
17173-35060
Gasket, Exhaust Manifold To Head
[09.1984 - 10.1984] 22R..RU75,85 |
17173-35060 |
— | ||
| replacement | |||||
|
17173
|
17173
17173-35120 Gasket, Exhaust Manifold To HeadEXHAUST MANIFOLD TO HEAD [09.1984 - 10.1984] 22R..RU75,85 |
17173-35120 |
from US $38.79 |
||
|
17173
|
17173
17173-35090 Gasket, Exhaust Manifold To HeadEXHAUST MANIFOLD TO HEAD [10.1984 - 06.1986] 22R..RU75,85 |
17173-35090 |
US $82.99 |
||
| replacement | |||||
|
17173
|
17173
17173-35091 Gasket, Exhaust Manifold To Head[10.1984 - 06.1986] 22R..RU75,85 |
17173-35091 |
US $81.54 |
||
|
17177
|
17177
17177-35040
Gasket, Intake Manifold To Head, No.1
[09.1984 - 08.1987] 22R..RU75,85 |
17177-35040 |
— | ||
| replacement | |||||
|
17177
|
17177
17177-35060
Gasket, Intake Manifold To Head, No.1
[09.1984 - 08.1987] 22R..RU75,85 |
17177-35060 |
— | ||
|
9010508112
|
9010508112
90105-08112 New Genuine Part |
90105-08112 |
US $4.01 |
||
|
9010510116
|
9010510116
90105-10116 New Genuine Part |
90105-10116 |
US $2.48 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
|
9017910052
|
9017910052
90179-10052
NUT
|
90179-10052 |
— | ||
| replacement | |||||
|
9017910052
|
9017910052
90179-10175 NUT |
90179-10175 |
from US $0.98 |
||
|
9092901099
|
9092901099
90929-01099 New Genuine Part |
90929-01099 |
US $3.20 |
||
|
9161160616
|
9161160616
91611-60616
Bolt(For Transaxle Case Receiver)
|
91611-60616 |
— | ||
| replacement | |||||
|
9161160616
|
9161160616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.86 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9162160828
|
9162160828
91621-60828
New Genuine Part
|
91621-60828 |
— | ||
| replacement | |||||
|
9162160828
|
9162160828
91651-B0830 New Genuine Part |
91651-B0830 |
US $1.61 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.23 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
