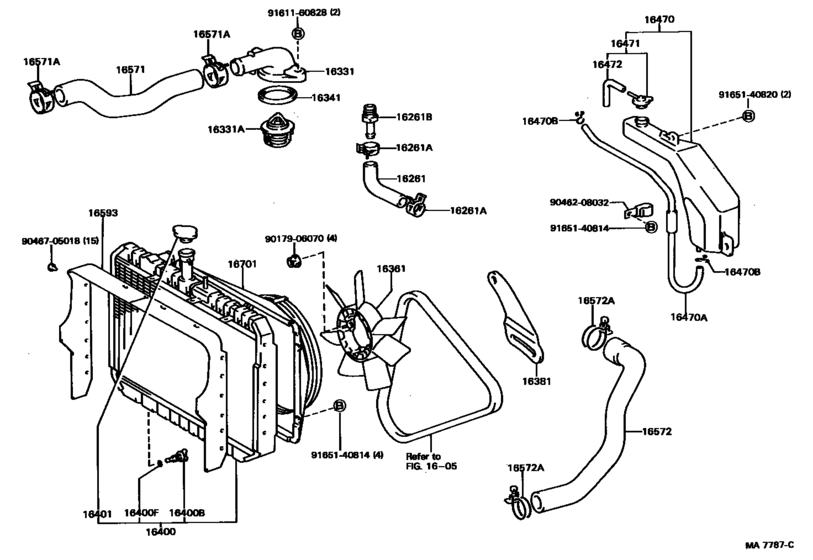

Radiator & Water Outlet ([09.1984 - ] (8409- )22R) Diagram Toyota DYNA/ TOYOACE
- Year
- 1984 - 1987
- Sales region
- Europe
- Frame
- RU75
- body
- TR
- ENGINE
- 22R
- DESTINATION
- GEN
- From
- 09.1984
- To
- 08.1987
- Gear Shift Type
- 5F
- Deck,cab
- T3
- Driver's Position
- LHD
- Building Condition
- CBU
- Deck(Material)
- TB
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16261
|
16261
16261-35050 Hose, Water By-PassWATER BY-PASS [09.1984 - 08.1987] 22R..RU75,85 |
16261-35050 |
US $7.72 |
||
|
16261A
|
16261A
90467-20005
Clip(For Ventilation Hose No.2)
[09.1984 - 08.1987] 22R..RU75,85 |
90467-20005 |
— | ||
| replacement | |||||
|
16261A
|
16261A
96134-41900 Clip Or Clamp(For Ventilation Hose)[09.1984 - 08.1987] 22R..RU75,85 |
96134-41900 |
from US $1.61 |
||
|
16261B
|
16261B
90404-53040
Union(For Water By-Pass Hose)
[09.1984 - 08.1987] 22R..RU75,85 |
90404-53040 |
— | ||
| replacement | |||||
|
16261B
|
16261B
90404-53070 Union(For Cylinder Block)[09.1984 - 08.1987] 22R..RU75,85 |
90404-53070 |
US $7.16 |
||
|
16331
|
16331
16331-35050 Outlet, Water[09.1984 - 08.1987] 22R..RU75,85 |
16331-35050 |
US $47.76 |
||
| replacement | |||||
|
16331
|
16331
16331-35051 Outlet, WaterWATER [09.1984 - 08.1987] 22R..RU75,85 |
16331-35051 |
from US $42.41 |
||
|
16331A
|
16331A
90916-03054
Thermostat
[09.1984 - 08.1987] 22R..RU75,85 *WAX 82-95,*WAX 82-95 |
90916-03054 |
— | ||
| replacement | |||||
|
16331A
|
16331A
90916-03083 Thermostat[09.1984 - 08.1987] 22R..RU75,85 *WAX 82-95,*WAX 82-95 |
90916-03083 |
from US $17.14 |
||
|
16341
|
16341
16341-35010 Gasket, Water Outlet[09.1984 - 08.1987] 22R..RU75,85 |
16341-35010 |
from US $1.89 |
||
|
16361
|
16361
16361-38010 Fan[09.1984 - 08.1986] 22R..RU75,85 7 BLADES,OD=380; 3Y..YU60..EUR 7 BLADES,OD=380 |
16361-38010 |
from US $79.42 |
||
|
16381
|
16381
16381-35010 Bar, Fan Belt Adjusting[09.1984 - 08.1987] 22R..RU75,85 |
16381-35010 |
US $13.40 |
||
|
16400
|
16400
16400-35180 Radiator Assy[09.1984 - 08.1987] 22R..RU75,85 |
16400-35180 |
US $665.39 |
||
|
16400B
|
16400B
16417-24051 Plug, Radiator Drain Cock[09.1984 - 08.1987] 22R..RU75,85..GEN; 1W..WU9#..ARL,GEN |
16417-24051 |
US $4.72 |
||
|
16400F
|
16400F
16418-24051 Packing(For Radiator Drain Cock)[09.1984 - 08.1987] 22R..RU75,85; 3Y,4Y..YU6#,7#,8#; 1W..WU9#..ARL,GEN |
16418-24051 |
US $3.40 |
||
|
16401
|
16401
16401-71010
Cap Sub-Assy(For Water Outlet)
[09.1984 - 08.1987] 22R..RU75,85; 1W..WU9#; 3Y,4Y..YU6#,7#,8# |
16401-71010 |
— | ||
| replacement | |||||
|
16401
|
16401
16401-54750 Radiator Cap[09.1984 - 08.1987] 22R..RU75,85; 1W..WU9#; 3Y,4Y..YU6#,7#,8# |
16401-54750 |
from US $16.13 |
||
|
16470
|
16470
16470-58020 Tank Assy, Radiator Reserve[09.1984 - 08.1987] 22R..RU75,85; 1W..WU9# |
16470-58020 |
US $66.10 |
||
|
16470A
|
16470A
90445-12143 Hose Or Pipe(For Radiator Reserve Tank)[09.1984 - 08.1987] 22R..RU75,85 L=620; 1W..WU9# L=620 |
90445-12143 |
US $13.83 |
||
|
16470B
|
16470B
90467-11085 Clamp Or Clip(For Radiator Breather Hose)[09.1984 - 08.1987] 22R..RU75,85; 1W..WU9# |
90467-11085 |
from US $0.72 |
||
|
16471
|
16471
16405-56070
Cap Sub-Assy, Reserve Tank
[09.1984 - 08.1987] 22R..RU75,85; 1W..WU9# |
16405-56070 |
— | ||
|
16472
|
16472
85338-22020 Hose, Breather[09.1984 - 08.1987] 22R..RU75,85; 1W..WU9# |
85338-22020 |
US $2.45 |
||
|
16571
|
16571
16571-35090 Hose, Radiator, InletRADIATOR, INLET [09.1984 - 08.1987] 22R..RU75,85 |
16571-35090 |
from US $25.02 |
||
|
16571A
|
16571A
90467-37001
Clip(For Water Inlet Hose)
[09.1984 - 08.1987] 22R..RU75,85; 3Y,4Y..YU6#,7#,8# |
90467-37001 |
— | ||
| replacement | |||||
|
16571A
|
16571A
90467-37003 Clamp Or Clip, Hose(For Radiator Inlet)[09.1984 - 08.1987] 22R..RU75,85; 3Y,4Y..YU6#,7#,8# |
90467-37003 |
from US $4.56 |
||
|
16572
|
16572
16572-35040 Hose, Radiator, OutletRADIATOR, OUTLET [09.1984 - 08.1987] 22R..RU75,85 |
16572-35040 |
US $41.64 |
||
|
16572A
|
16572A
96111-10450 Clamp Or Clip, Hose(For Radiator Inlet)[09.1984 - 08.1987] 22R..RU75,85 RADIATOR SIDE |
96111-10450 |
US $3.76 |
||
|
16572A
|
16572A
96111-10490 Clamp Or Clip, Sub Radiator Hose[09.1984 - 08.1987] 22R..RU75,85 ENGINE SIDE |
96111-10490 |
from US $1.97 |
||
|
16593
|
16593
16593-58030 Shield, Radiator To Cab Floor Panel[09.1984 - 08.1987] 22R..RU75,85 |
16593-58030 |
US $64.65 |
||
| replacement | |||||
|
16593
|
16593
16593-58050 Guide, Radiator Air, No.1[09.1984 - 08.1987] 22R..RU75,85 |
16593-58050 |
US $63.77 |
||
|
16701
|
16701
16701-35010 Shroud Sub-Assy, FanFAN [09.1984 - 08.1987] 22R..RU75,85 |
16701-35010 |
US $144.14 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9046208032
|
9046208032
90462-08032 New Genuine Part |
90462-08032 |
US $1.46 |
||
|
9046705018
|
9046705018
90467-05018
Clip(For Front Body Pillar Garnish)
|
90467-05018 |
— | ||
| replacement | |||||
|
9046705018
|
9046705018
90467-05018-01
Clip, Slide Door Trim Carpet
|
90467-05018-01 |
— | ||
|
9161160828
|
9161160828
91611-60828 Bolt(For Clutch Release Cylinder Setting) |
91611-60828 |
US $1.97 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.23 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $0.96 |
||
