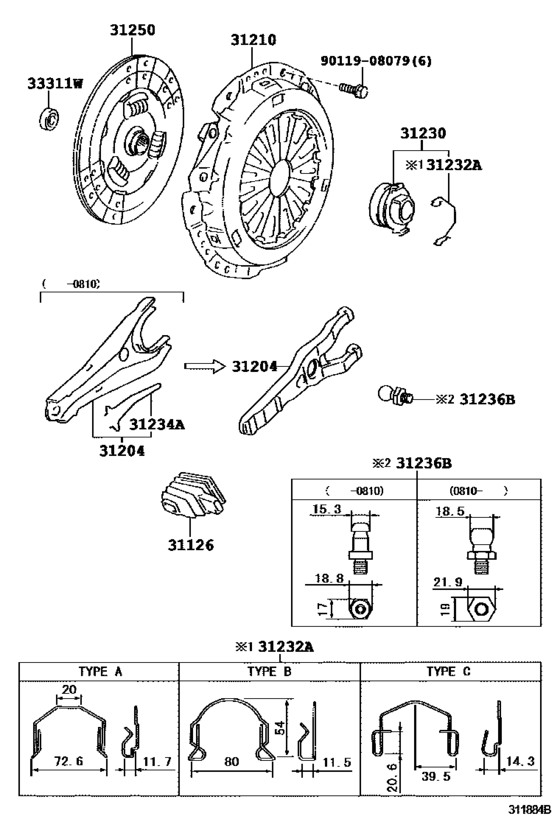

Clutch & Release Fork ([05.2007 - ] (0705- )TRU300,340,500) Diagram Toyota DYNA/ TOYOACE
- Year
- 2007 - 2011
- Sales region
- Japan
- Frame
- TRU500
- ENGINE
- 2TRFE
- TRANSMISSION
- MTM
- DECK
- T4
- CAB
- SCB
- Model
- DYNA/TOYOACE
- From
- 05.2007
- To
- 06.2011
- Gear Shift Type
- 5F
- Body Shape
- 1NO
- Loading Capacity
- 20T
- Fuel Induction
- EFI
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-36080 Boot, Clutch Release Fork[05.2007 - 06.2011] TRU300,340,500 |
31126-36080 |
from US $11.29 |
||
|
31204
|
31204
31204-20071 Fork Sub-Assy, Clutch Release[05.2007 - 10.2008] TRU300,340,500 |
31204-20071 |
from US $23.17 |
||
|
31204
|
31204
31204-37080 Fork Sub-Assy, Clutch Release[10.2008 - 06.2011] TRU300,340,500 |
31204-37080 |
US $51.54 |
||
|
31210
|
31210
31210-37130 Cover Assy, Clutch[05.2007 - 06.2007] TRU300,340,500 |
31210-37130 |
US $214.03 |
||
| replacement | |||||
|
31210
|
31210
31210-37170 Cover Assy, Clutch[05.2007 - 06.2007] TRU300,340,500 |
31210-37170 |
US $235.20 |
||
|
31210
|
31210
31210-37170 Cover Assy, Clutch[06.2007 - 06.2011] TRU300,340,500 |
31210-37170 |
US $235.20 |
||
|
31230
|
31230
31230-35070
Bearing Assy, Clutch Release
[05.2007 - 10.2008] TRU300,340,500 |
31230-35070 |
— | ||
| replacement | |||||
|
31230
|
31230
31230-35071 Bearing Assy, Clutch Release[05.2007 - 10.2008] TRU300,340,500 |
31230-35071 |
from US $55.44 |
||
|
31230
|
31230
31230-37060 Bearing Assy, Clutch Release[10.2008 - 06.2011] TRU300,340,500 |
31230-37060 |
US $60.98 |
||
|
31232A
|
31232A
31232-35020 Clip Or Spring, Release Bearing Hub[05.2007 - 10.2008] TRU300,340,500 ＴＹＰＥ Ａ：イラスト参照 |
31232-35020 |
from US $2.34 |
||
|
31232A
|
31232A
31232-35030 Clip Or Spring, Release Bearing Hub[05.2007 - 10.2008] TRU300,340,500 ＴＹＰＥ Ｂ：イラスト参照 |
31232-35030 |
US $2.62 |
||
|
31232A
|
31232A
31232-37030 Clip, Release Bearing Hub[10.2008 - 06.2011] TRU300,340,500 ＴＹＰＥ Ｃ：イラスト参照 |
31232-37030 |
US $1.16 |
||
|
31234A
|
31234A
31234-35020 Spring, Release Fork Support[05.2007 - 10.2008] TRU300,340,500 |
31234-35020 |
US $0.99 |
||
|
31236B
|
31236B
31236-37020 Support, Release Fork[05.2007 - 10.2008] TRU300,340,500 |
31236-37020 |
from US $8.24 |
||
|
31236B
|
31236B
31236-37040 Support, Release Fork[10.2008 - 06.2011] TRU300,340,500 |
31236-37040 |
US $8.30 |
||
|
31250
|
31250
31250-37160 Disc Assy, Clutch[05.2007 - 05.2008] TRU300,340,500 |
31250-37160 |
US $291.20 |
||
| replacement | |||||
|
31250
|
31250
31250-37200 Disc Assy, Clutch[05.2007 - 05.2008] TRU300,340,500 |
31250-37200 |
US $181.71 |
||
|
31250
|
31250
31250-37200 Disc Assy, Clutch[05.2008 - 06.2011] TRU300,340,500 |
31250-37200 |
US $181.71 |
||
|
33311W
|
33311W
90363-12020 Bearing (For Input Shaft)[05.2007 -] BZU300,340,TRU300,340,500 |
90363-12020 |
from US $5.50 |
||
|
9011908079
|
9011908079
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.64 |
||
