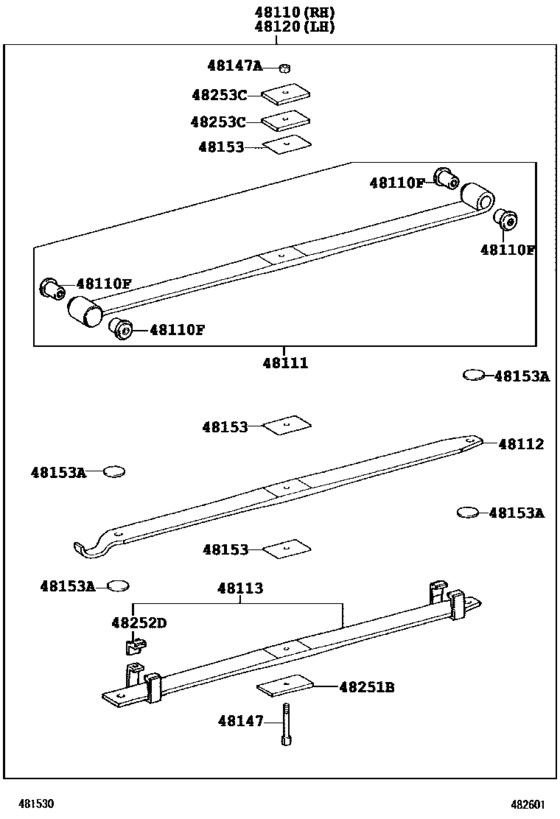

Front Spring & Shock Absorber ([05.2007 - ] 3-LEAF (0705- )TRU300,340,500..SCB..DM5,T4..20T) Diagram Toyota DYNA/ TOYOACE
- Year
- 2007 - 2011
- Sales region
- Japan
- Frame
- TRU500
- ENGINE
- 2TRFE
- TRANSMISSION
- MTM
- DECK
- T4
- CAB
- SCB
- Model
- DYNA/TOYOACE
- From
- 05.2007
- To
- 06.2011
- Gear Shift Type
- 5F
- Body Shape
- 1NO
- Loading Capacity
- 20T
- Fuel Induction
- EFI
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48110
|
48110
48110-3V330 Spring Assy, Front, Rh[05.2007 -] TRU300,340,500..SCB..(DM5,T4)..20T ３枚リーフ |
48110-3V330 |
US $522.70 |
||
| replacement | |||||
|
48110
|
48110
48110-3V331 Spring Assy, Front, Rh[05.2007 -] TRU300,340,500..SCB..(DM5,T4)..20T ３枚リーフ |
48110-3V331 |
US $465.92 |
||
|
48110F
|
48110F
90389-16026 Bush, Front Spring No.2 Shackle[10.2006 -] XZU504..ST;TRU300,340,500..20T |
90389-16026 |
from US $15.95 |
||
|
48111
|
48111
48101-3V330 Leaf, Front Spring, No.1[05.2007 -] TRU300,340,500..SCB..(DM5,T4)..20T 運転席側 |
48101-3V330 |
US $203.84 |
||
| replacement | |||||
|
48111
|
48111
48101-3V331 Leaf, Front Spring, No.1[05.2007 -] TRU300,340,500..SCB..(DM5,T4)..20T 運転席側 |
48101-3V331 |
US $184.91 |
||
|
48111
|
48111
48101-3V340 Leaf, Front Spring, No.1[05.2007 -] TRU300,340,500..SCB..(DM5,T4)..20T 助手席側 |
48101-3V340 |
US $203.84 |
||
| replacement | |||||
|
48111
|
48111
48101-3V341 Leaf, Front Spring, No.1[05.2007 -] TRU300,340,500..SCB..(DM5,T4)..20T 助手席側 |
48101-3V341 |
US $184.91 |
||
|
48112
|
48112
48112-3V330 Leaf, Front Spring, No.2[05.2007 -] TRU300,340,500..SCB..(DM5,T4)..20T 運転席側 |
48112-3V330 |
US $158.70 |
||
| replacements | |||||
|
48112
|
48112
48112-3V331 Leaf, Front Spring, No.2[05.2007 -] TRU300,340,500..SCB..(DM5,T4)..20T 運転席側 |
48112-3V331 |
US $144.14 |
||
|
48112
|
48112
48252-37521 Silencer, Front Spring, No.1[05.2007 -] TRU300,340,500..SCB..(DM5,T4)..20T 運転席側 |
48252-37521 |
US $12.54 |
||
|
48112
|
48112
48112-3V340 Leaf, Front Spring, No.2[05.2007 -] TRU300,340,500..SCB..(DM5,T4)..20T 助手席側 |
48112-3V340 |
US $158.70 |
||
| replacements | |||||
|
48112
|
48112
48112-3V341 Leaf, Front Spring, No.2[05.2007 -] TRU300,340,500..SCB..(DM5,T4)..20T 助手席側 |
48112-3V341 |
US $144.14 |
||
|
48112
|
48112
48252-37521 Silencer, Front Spring, No.1[05.2007 -] TRU300,340,500..SCB..(DM5,T4)..20T 助手席側 |
48252-37521 |
US $12.54 |
||
|
48113
|
48113
48102-3V330 Leaf, Front Spring, No.3[05.2007 -] TRU300,340,500..SCB..(DM5,T4)..20T 運転席側 |
48102-3V330 |
US $163.07 |
||
| replacements | |||||
|
48113
|
48113
48102-3V331 Leaf, Front Spring, No.3[05.2007 -] TRU300,340,500..SCB..(DM5,T4)..20T 運転席側 |
48102-3V331 |
US $147.06 |
||
|
48113
|
48113
48252-37521 Silencer, Front Spring, No.1[05.2007 -] TRU300,340,500..SCB..(DM5,T4)..20T 運転席側 |
48252-37521 |
US $12.54 |
||
|
48113
|
48113
48102-3V340 Leaf, Front Spring, No.3[05.2007 -] TRU300,340,500..SCB..(DM5,T4)..20T 助手席側 |
48102-3V340 |
US $163.07 |
||
| replacements | |||||
|
48113
|
48113
48102-3V341 Leaf, Front Spring, No.3[05.2007 -] TRU300,340,500..SCB..(DM5,T4)..20T 助手席側 |
48102-3V341 |
US $147.06 |
||
|
48113
|
48113
48252-37521 Silencer, Front Spring, No.1[05.2007 -] TRU300,340,500..SCB..(DM5,T4)..20T 助手席側 |
48252-37521 |
US $12.54 |
||
|
48120
|
48120
48110-3V340 Spring Assy, Front, Lh[05.2007 -] TRU300,340,500..SCB..(DM5,T4)..20T ３枚リーフ |
48110-3V340 |
US $522.70 |
||
| replacement | |||||
|
48120
|
48120
48110-3V341 Spring Assy, Front, Lh[05.2007 -] TRU300,340,500..SCB..(DM5,T4)..20T ３枚リーフ |
48110-3V341 |
US $465.92 |
||
|
48147
|
48147
48147-37300 Bolt, Front Spring, Center[10.2006 -] TRU300,340,500,XZU324,354,524,554..SCB..(DM5,DM7,T4)..20T |
48147-37300 |
US $6.41 |
||
| replacement | |||||
|
48147
|
48147
48147-37A01 Bolt, Front Spring, Center[10.2006 -] TRU300,340,500,XZU324,354,524,554..SCB..(DM5,DM7,T4)..20T |
48147-37A01 |
US $5.82 |
||
|
48147A
|
48147A
48284-37130 Nut, Front Spring Center Bolt[10.2006 -] BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T |
48284-37130 |
from US $1.11 |
||
|
48153
|
48153
48253-3B440 Spacer, Front Leaf Spring, No.1[10.2006 -] TRU300,340,500;XZU304..30T..4NO;XZU304..DM3,DM6,T3;BZU300,XZU504..DM6,T5;BZU300,34 0,XZU314,324,334,344..30T; BZU300,340,XZU304,344,504..(T3,T4,T5)..20T..WT 3-LEAF |
48253-3B440 |
US $6.70 |
||
| replacement | |||||
|
48153
|
48153
48152-37J42 Spacer, Front Leaf Spring, No.1[10.2006 -] TRU300,340,500;XZU304..30T..4NO;XZU304..DM3,DM6,T3;BZU300,XZU504..DM6,T5;BZU300,34 0,XZU314,324,334,344..30T; BZU300,340,XZU304,344,504..(T3,T4,T5)..20T..WT 3-LEAF |
48152-37J42 |
US $5.97 |
||
|
48153A
|
48153A
48252-37670 Silencer, Front Spring, No.1[10.2006 -] BZU300..DM6;TRU300,340,500;XZU304..30T..4NO;XZU304..SCB..(DM3,DM6,T3);BZU300,340,X ZU314,324,334,344..SCB..30T; BZU300,340,XZU304,344,504..(T3,T4,T5)..20T..WT 3-LEAF |
48252-37670 |
US $9.68 |
||
|
48251B
|
48251B
48114-3B060 Leaf, Front Spring, No.4[05.2007 -] TRU300,340,500..SCB..(DM5,T4)..20T |
48114-3B060 |
US $8.88 |
||
|
48252D
|
48252D
48252-37380 Silencer, Rear Spring[10.2006 -] BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T |
48252-37380 |
US $9.68 |
||
|
48253C
|
48253C
48253-3B770 Leaf, Front Spring, No.6[10.2006 -] XZU504..ST;TRU300,340,500..SCB..(DM5,T4)..20T |
48253-3B770 |
US $9.17 |
||
