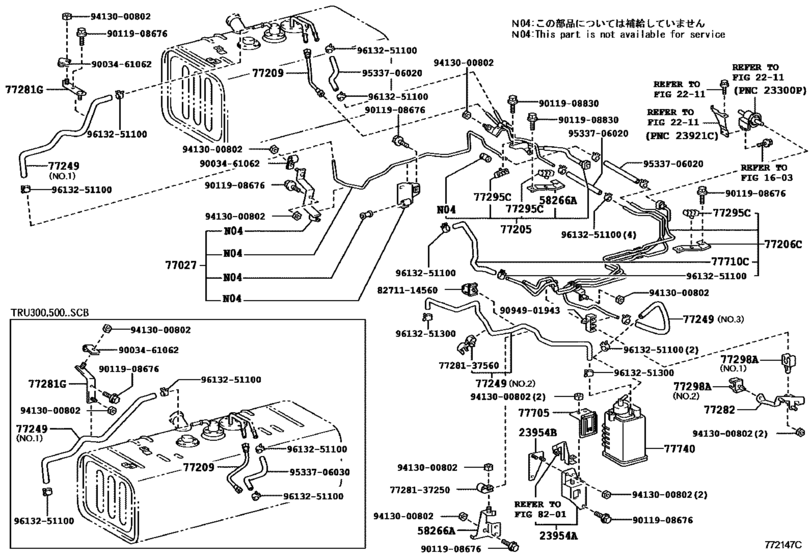

Fuel Tank & Tube ([05.2007 - ] ﾌｭｰｴﾙ ﾁｭｰﾌﾞ (0705- )TRU300,340,500..SCB) Diagram Toyota DYNA/ TOYOACE
- Year
- 2007 - 2011
- Sales region
- Japan
- Frame
- TRU500
- ENGINE
- 2TRFE
- TRANSMISSION
- MTM
- DECK
- T4
- CAB
- SCB
- Model
- DYNA/TOYOACE
- From
- 05.2007
- To
- 06.2011
- Gear Shift Type
- 5F
- Body Shape
- 1NO
- Loading Capacity
- 20T
- Fuel Induction
- EFI
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23954A
|
23954A
23954-78021 Bracket, Lpg Regulator[05.2007 -] 2TRFE..TRU300,340,500..SCB |
23954-78021 |
US $37.27 |
||
|
23954B
|
23954B
23954-78030 Bracket, Lpg Regulator[05.2007 -] 2TRFE..TRU300,340,500..SCB |
23954-78030 |
US $9.90 |
||
|
58266A
|
58266A
58266-37220 Bracket, Fuel Tube Clamp[05.2007 - 06.2011] TRU300,340,500..SCB |
58266-37220 |
US $9.03 |
||
|
58266A
|
58266A
58266-37250 Bracket, Fuel Tube Clamp[05.2007 - 06.2011] TRU300,340,500..SCB ＮＯ．３ |
58266-37250 |
US $5.82 |
||
|
77027
|
77027
77027-37130 Tube Sub-Assy, Fuel Evaporation, No.2[05.2007 -] TRU300,340,500..SCB |
77027-37130 |
US $29.70 |
||
|
77205
|
77205
77205-37B80 Tube Sub-Assy, Fuel Main[05.2007 -] TRU300,340,500..SCB |
77205-37B80 |
US $60.57 |
||
|
77206C
|
77206C
77206-37D60 Tube Sub-Assy, Fuel Main, No.2[05.2007 -] TRU300,340,500..SCB |
77206-37D60 |
US $91.73 |
||
|
77209
|
77209
77209-37070 Connector Sub-Assy, Fuel Tube[05.2007 -] TRU300,500..SCB |
77209-37070 |
US $24.46 |
||
|
77249
|
77249
77249-37090 Hose, Fuel Emission[05.2007 -] TRU300,340,500..SCB ＮＯ．３ |
77249-37090 |
US $7.72 |
||
|
77249
|
77249
77249-37140 Hose, Fuel Emission[05.2007 -] TRU300,500..SCB ＮＯ．１ |
77249-37140 |
US $14.41 |
||
| replacement | |||||
|
77249
|
77249
77249-37141 Hose, Fuel Emission[05.2007 -] TRU300,500..SCB ＮＯ．１ |
77249-37141 |
US $13.10 |
||
|
77249
|
77249
77249-37200 Hose, Fuel Emission[05.2007 -] TRU300,340,500..SCB ＮＯ．２ |
77249-37200 |
US $20.53 |
||
|
77281G
|
77281G
77281-37480 Clamp, Fuel Hose[05.2007 -] TRU300,500..SCB |
77281-37480 |
US $7.13 |
||
|
77282
|
77282
77282-37010 Bracket, Fuel Main Tube, No.2[05.2007 -] TRU300,340,500 |
77282-37010 |
US $8.88 |
||
|
77295C
|
77295C
77295-37020 Grommet, Fuel Tube[05.2007 -] TRU300,340,500..SCB |
77295-37020 |
US $4.22 |
||
|
77298A
|
77298A
77298-37020 Clamp, Fuel Tube, No.4[05.2007 -] TRU300,340,500 ＮＯ．２ |
77298-37020 |
US $2.33 |
||
|
77298A
|
77298A
77298-37070 Clamp, Fuel Tube, No.4[05.2007 -] TRU300,340,500 ＮＯ．１ |
77298-37070 |
US $2.33 |
||
|
77705
|
77705
77705-37030 Bracket Sub-Assy, Charcoal Canister[05.2007 -] TRU300,340,500..SCB |
77705-37030 |
US $24.75 |
||
|
77710C
|
77710C
23273-78380 Hose, Fuel[05.2007 -] TRU300,340,500 |
23273-78380 |
US $19.22 |
||
|
77740
|
77740
77740-52050 Canister Assy, Charcoal[05.2007 -] TRU300,340,500 |
77740-52050 |
US $106.29 |
||
|
7728137250
|
7728137250
77281-37250 Clamp, Fuel Hose |
77281-37250 |
US $3.49 |
||
|
7728137560
|
7728137560
77281-37560 Clamp, Fuel Hose |
77281-37560 |
US $16.02 |
||
|
8271114560
|
8271114560
82711-14560 Wire, Fuse To Fuse(for Combustion Heater) |
82711-14560 |
US $1.97 |
||
|
9003461062
|
9003461062
90034-61062 New Genuine Part |
90034-61062 |
US $2.18 |
||
|
9011908676
|
9011908676
90119-08676 BOLT WWASHER |
90119-08676 |
US $2.15 |
||
|
9011908830
|
9011908830
90119-08830 Bolt(For Oil Receiver Pipe) |
90119-08830 |
US $1.79 |
||
| replacement | |||||
|
9011908830
|
9011908830
47327-60232 Tube, Rear Brake, No.7 |
47327-60232 |
US $16.13 |
||
|
9094901943
|
9094901943
90949-01943 New Genuine Part |
90949-01943 |
US $2.48 |
||
|
9413000802
|
9413000802
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.84 |
||
| replacement | |||||
|
9413000802
|
9413000802
90170-A0001
New Genuine Part
|
90170-A0001 |
— | ||
|
9533706020
|
9533706020
95337-06020 Hose, Differential Pressure Control |
95337-06020 |
from US $10.21 |
||
|
9533706030
|
9533706030
95337-06030 Hose, Fuel, No.2 (For Main Tube, No.2) |
95337-06030 |
US $12.75 |
||
|
9613251100
|
9613251100
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.42 |
||
|
9613251300
|
9613251300
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.48 |
||
