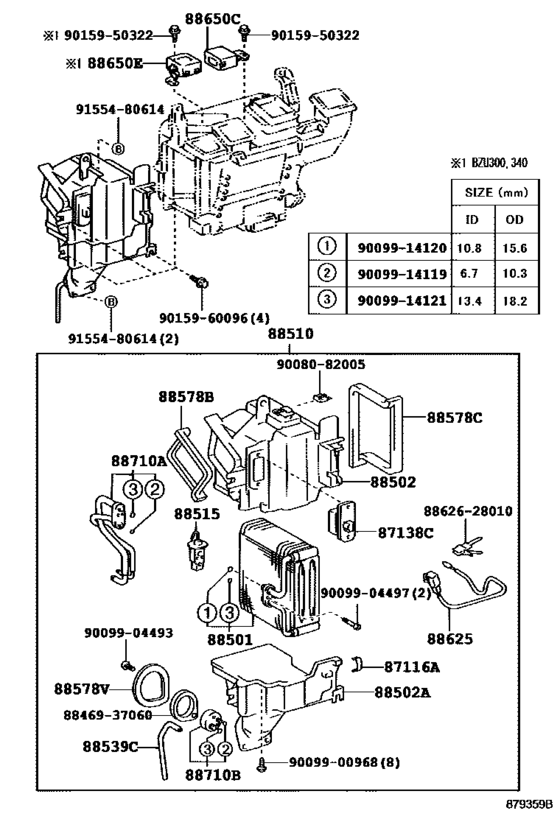

Heating & Air Conditioning - Cooler Unit ([05.2007 - ] ﾌﾛﾝﾄ (0705- )BZU300,340,TRU300,340,500) Diagram Toyota DYNA/ TOYOACE
- Year
- 2007 - 2011
- Sales region
- Japan
- Frame
- TRU500
- ENGINE
- 2TRFE
- TRANSMISSION
- MTM
- DECK
- T4
- CAB
- SCB
- Model
- DYNA/TOYOACE
- From
- 05.2007
- To
- 06.2011
- Gear Shift Type
- 5F
- Body Shape
- 1NO
- Loading Capacity
- 20T
- Fuel Induction
- EFI
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87116A
|
87116A
87116-14010
Spring, Heater Case Fastening
[05.2007 - 06.2011] BZU300,340,TRU300,340,500 |
87116-14010 |
— | ||
|
87138C
|
87138C
87138-37190
Resistor, Blower
[05.2007 - 06.2011] BZU300,340,TRU300,340,500 |
87138-37190 |
— | ||
|
88501
|
88501
88501-37060 Evaporator Sub-Assy, Cooler, No.1[10.2006 - 06.2011] BZU300,340,TRU300,340,500;XZU30#,334,348,378,388,508..DCB,VAN |
88501-37060 |
US $354.68 |
||
|
88502
|
88502
88502-37050
Case Sub-Assy, Cooling Unit
[10.2006 - 06.2011] BZU300,340,TRU300,340,500;XZU30#,334,348,378,388,508..DCB,VAN |
88502-37050 |
— | ||
|
88502A
|
88502A
88502-37040
Case Sub-Assy, Cooling Unit
[10.2006 - 06.2011] BZU300,340,TRU300,340,500;XZU30#,334,348,378,388,508..DCB,VAN |
88502-37040 |
— | ||
|
88510
|
88510
88510-37180 Unit Assy, Cooler[05.2007 - 06.2011] BZU300,340,TRU300,340,500 |
88510-37180 |
US $1,084.20 |
||
|
88515
|
88515
88515-28160 Valve, Cooler Expansion[10.2006 - 06.2011] BZU300,340,TRU300,340,500;XZU30#,334,348,378,388,508..DCB,VAN |
88515-28160 |
from US $67.28 |
||
|
88539C
|
88539C
88539-37060
Hose, Cooler Unit Drain, No.1
[10.2006 - 06.2011] BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,5 54,568 |
88539-37060 |
— | ||
|
88578B
|
88578B
88578-37130
Packing, Cooling Unit, No.1
[05.2007 - 06.2011] BZU300,340,TRU300,340,500 |
88578-37130 |
— | ||
|
88578C
|
88578C
88578-37140
Packing, Cooling Unit, No.2
[05.2007 - 06.2011] BZU300,340,TRU300,340,500 |
88578-37140 |
— | ||
|
88578V
|
88578V
88578-37150
Packing, Cooling Unit, No.3
[05.2007 - 06.2011] BZU300,340,TRU300,340,500 |
88578-37150 |
— | ||
|
88625
|
88625
88625-32150 Thermistor, Cooler, No.1[10.2006 - 06.2011] BZU300,340,TRU300,340,500;XZU30#,334,348,378,388,508..DCB,VAN |
88625-32150 |
US $9.43 |
||
|
88650C
|
88650C
88650-25120
Amplifier Sub-Assy, Airconditioner
[05.2007 - 06.2011] TRU300,340,500 |
88650-25120 |
— | ||
|
88710A
|
88710A
88710-37340 Tube Assy, Air Conditioner[10.2006 - 06.2011] BZU300,340,TRU300,340,500;XZU30#,334,348,378,388,508..DCB,VAN |
88710-37340 |
US $163.20 |
||
|
88710B
|
88710B
88710-37350
Tube Assy, Air Conditioner
[10.2006 - 06.2011] BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,5 54,568 |
88710-37350 |
— | ||
|
8846937060
|
8846937060
88469-37060
Switch, Pressure Control
|
88469-37060 |
— | ||
|
8862628010
|
8862628010
88626-28010
Holder, Thermistor
|
88626-28010 |
— | ||
|
9008082005
|
9008082005
90080-82005 Fuse, Fuse Block |
90080-82005 |
US $1.46 |
||
|
9009900968
|
9009900968
90099-00968 Screw(For Air Conditioner Unit) |
90099-00968 |
US $0.82 |
||
|
9009904493
|
9009904493
90099-04493 New Genuine Part |
90099-04493 |
US $2.89 |
||
|
9009904497
|
9009904497
90099-04497 BOLT |
90099-04497 |
US $5.02 |
||
|
9009914119
|
9009914119
90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe) |
90099-14119 |
from US $1.66 |
||
| replacement | |||||
|
9009914119
|
9009914119
90099-14119-TH O RING |
90099-14119-TH |
US $0.68 |
||
|
9009914120
|
9009914120
90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) |
90099-14120 |
from US $1.83 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $1.56 |
||
|
9015950322
|
9015950322
90159-50322 SCREW WWASHER |
90159-50322 |
from US $0.70 |
||
|
9015960096
|
9015960096
90159-60096 New Genuine Part |
90159-60096 |
US $1.51 |
||
|
9155480614
|
9155480614
91554-80614 New Genuine Part |
91554-80614 |
US $1.25 |
||
