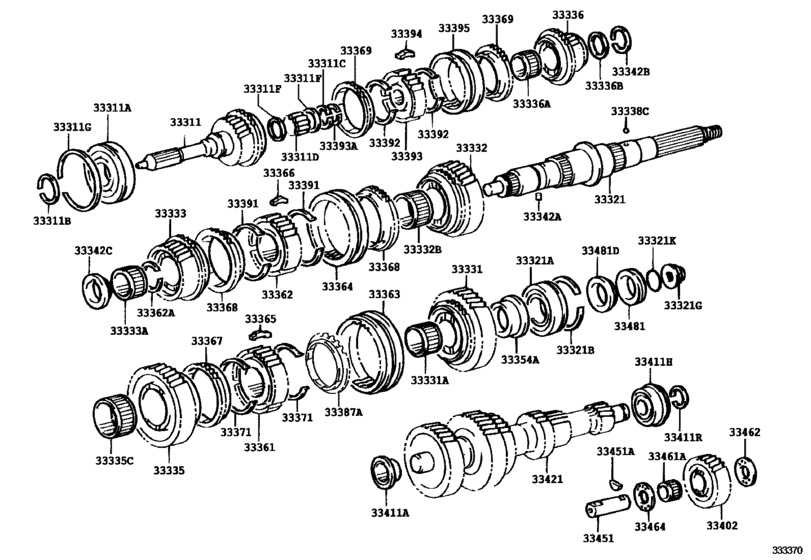

Transmission Gear (Mtm) ([05.2007 - ] M153 (0705- )TRU300,340,500) Diagram Toyota DYNA/ TOYOACE
- Year
- 2007 - 2011
- Sales region
- Japan
- Frame
- TRU500
- ENGINE
- 2TRFE
- TRANSMISSION
- MTM
- DECK
- T4
- CAB
- SCB
- Model
- DYNA/TOYOACE
- From
- 05.2007
- To
- 06.2011
- Gear Shift Type
- 5F
- Body Shape
- 1NO
- Loading Capacity
- 20T
- Fuel Induction
- EFI
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33311
|
33311
33301-37050 Shaft, Input[05.2007 -] TRU300,340,500 |
33301-37050 |
US $316.24 |
||
|
33311A
|
33311A
90363-45010 Bearing (For Input Shaft Front)[05.2007 - 06.2011] TRU300,340,500 |
90363-45010 |
from US $45.19 |
||
|
33311B
|
33311B
90520-42002 Ring, Shaft Snap (For Front Bearing)[05.2007 -] TRU300,340,500 厚さ＝２．５０−２．５５，ＭＡＲＫ ２ |
90520-42002 |
from US $1.05 |
||
|
33311B
|
33311B
90520-42003 Ring, Shaft Snap (For Front Bearing)[05.2007 -] TRU300,340,500 厚さ＝２．５５−２．６０，ＭＡＲＫ ３ |
90520-42003 |
US $1.14 |
||
|
33311B
|
33311B
90520-42004 Ring, Shaft Snap (For Front Bearing)[05.2007 -] TRU300,340,500 厚さ＝２．６０−２．６５，ＭＡＲＫ ４ |
90520-42004 |
US $1.14 |
||
|
33311B
|
33311B
90520-42005 Ring, Shaft Snap (For Front Bearing)[05.2007 -] TRU300,340,500 厚さ＝２．６５−２．７０，ＭＡＲＫ ５ |
90520-42005 |
US $1.14 |
||
|
33311B
|
33311B
90520-42006 Ring, Shaft Snap (For Front Bearing)[05.2007 -] TRU300,340,500 厚さ＝２．７０−２．７５，ＭＡＲＫ ６ |
90520-42006 |
US $1.14 |
||
|
33311B
|
33311B
90520-42007 Ring, Shaft Snap (For Front Bearing)[05.2007 -] TRU300,340,500 厚さ＝２．７５−２．８０，ＭＡＲＫ ７ |
90520-42007 |
US $1.14 |
||
|
33311C
|
33311C
96151-04500 Ring, Hole Snap (For Needle Roller)[05.2007 -] BZU300,340,TRU300,340,500 |
96151-04500 |
from US $1.14 |
||
|
33311D
|
33311D
90361-09002 Bearing, Input Shaft[05.2007 -] BZU300,340,TRU300,340,500 |
90361-09002 |
from US $3.40 |
||
|
33311F
|
33311F
90560-38004 Spacer (For Input Shaft)[05.2007 -] BZU300,340,TRU300,340,500 |
90560-38004 |
from US $1.22 |
||
|
33311G
|
33311G
90520-96001 Ring, Shaft Snap (For Front Bearing)[05.2007 -] TRU300,340,500 |
90520-96001 |
from US $1.49 |
||
|
33321
|
33321
33321-37030 Shaft, Output[05.2007 - 06.2011] TRU300,340,500 |
33321-37030 |
US $225.39 |
||
|
33321A
|
33321A
90363-40034 Bearing (For Input Shaft Front)[05.2007 -] TRU300,340,500 |
90363-40034 |
from US $41.83 |
||
|
33321B
|
33321B
90520-88001 Ring, Shaft Snap (For Front Bearing)[05.2007 -] TRU300,340,500 厚さ＝２．３６−２．４６ |
90520-88001 |
from US $3.40 |
||
|
33321G
|
33321G
90179-24008 Nut (For Manual Transmission Output Shaft Rear Set)[10.2006 -] XZU354..1NO;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548..5F |
90179-24008 |
from US $3.32 |
||
|
33321K
|
33321K
90301-31003 Ring, O(For Manual Transmisson Output Shaft Rear Set Nut)[10.2006 -] XZU354..1NO;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548..5F |
90301-31003 |
from US $3.26 |
||
|
33331
|
33331
33331-37070 Gear, Reverse[05.2007 -] TRU300,340,500 |
33331-37070 |
US $133.95 |
||
|
33331A
|
33331A
90364-54004 Bearing (For Reverse Gear)[05.2007 -] TRU300,340,500 |
90364-54004 |
from US $22.19 |
||
|
33332
|
33332
33033-36080 Gear, 2Nd[05.2007 -] TRU300,340,500 |
33033-36080 |
US $231.50 |
||
|
33332B
|
33332B
90364-54003 Bearing, Needle Roller (For 2Nd Gear)[05.2007 -] TRU300,340,500 |
90364-54003 |
from US $23.69 |
||
|
33333
|
33333
33034-37010 Gear, 3Rd[05.2007 -] TRU300,340,500 |
33034-37010 |
from US $129.58 |
||
|
33333A
|
33333A
90364-47007 Bearing, Needle Roller (For 3Rd Gear)[05.2007 -] TRU300,340,500 |
90364-47007 |
from US $11.01 |
||
|
33335
|
33335
33335-37040 Gear, 1St[05.2007 -] TRU300,340,500 |
33335-37040 |
US $193.65 |
||
|
33335C
|
33335C
90364-58005 Bearing, Needle Roller(For 1St Gear)[05.2007 -] TRU300,340,500 |
90364-58005 |
from US $23.69 |
||
|
33336
|
33336
33036-37010 Gear, 5Th[05.2007 -] TRU300,340,500 |
33036-37010 |
from US $105.49 |
||
|
33336A
|
33336A
90364-37012 Bearing, Needle Roller (For 5Th Gear)[05.2007 -] TRU300,340,500 |
90364-37012 |
from US $16.46 |
||
|
33336B
|
33336B
90560-37003 Spacer (For 5Th Gear Bearing)[05.2007 -] TRU300,340,500 |
90560-37003 |
from US $0.61 |
||
|
33338C
|
33338C
90360-06004 Ball, Detent(For Gear Shift Head No.4)[05.2007 -] TRU300,340,500 |
90360-06004 |
from US $0.84 |
||
| replacement | |||||
|
33338C
|
33338C
90080-36191
Ball, Check Valve
[05.2007 -] TRU300,340,500 |
90080-36191 |
— | ||
|
33342A
|
33342A
90250-04056 Pin, Straight (For Gear Thrust Washer)[05.2007 -] TRU300,340,500 |
90250-04056 |
from US $0.68 |
||
|
33342B
|
33342B
90520-34010 Ring, Shaft Snap (For Gear Thrust Washer)[05.2007 -] TRU300,340,500 厚さ＝２．９０−２．９５，マーク Ａ |
90520-34010 |
from US $1.31 |
||
|
33342B
|
33342B
90520-34011 Ring, Shaft Snap (For Gear Thrust Washer)[05.2007 -] TRU300,340,500 厚さ＝２．９５−３．００，マーク Ｂ |
90520-34011 |
from US $1.31 |
||
|
33342B
|
33342B
90520-34012 Ring, Shaft Snap (For Gear Thrust Washer)[05.2007 -] TRU300,340,500 厚さ＝３．００−３．０５，マーク Ｃ |
90520-34012 |
US $0.79 |
||
|
33342B
|
33342B
90520-34015 Ring, Shaft Snap (For Gear Thrust Washer)[05.2007 -] TRU300,340,500 厚さ＝３．０５−３．１０，マーク Ｄ |
90520-34015 |
US $1.24 |
||
|
33342B
|
33342B
90520-34016 Ring, Shaft Snap (For Gear Thrust Washer)[05.2007 -] TRU300,340,500 厚さ＝３．１０−３．１５，マーク Ｆ |
90520-34016 |
US $0.79 |
||
|
33342C
|
33342C
33342-36021 Washer, Gear Thrust[05.2007 -] TRU300,340,500 |
33342-36021 |
from US $15.95 |
||
|
33354A
|
33354A
33354-36010 Race, Reverse Gear Bearing, Inner[05.2007 -] TRU300,340,500 |
33354-36010 |
from US $20.38 |
||
|
33361
|
33361
33361-37050 Hub, Transmission Clutch, No.1[05.2007 - 04.2011] TRU300,340,500 |
33361-37050 |
US $104.83 |
||
| replacement | |||||
|
33361
|
33361
33361-37H01 Hub, Transmission Clutch, No.1[05.2007 - 04.2011] TRU300,340,500 |
33361-37H01 |
US $107.74 |
||
|
33361
|
33361
33361-37051 Hub, Transmission Clutch, No.1[04.2011 -] TRU300,340,500 |
33361-37051 |
US $74.26 |
||
|
33362
|
33362
33362-36050 Hub, Transmission Clutch, No.2[05.2007 -] TRU300,340,500 |
33362-36050 |
from US $66.74 |
||
|
33362A
|
33362A
90520-43002 Ring, Shaft Snap (For Front Bearing)[05.2007 -] TRU300,340,500 厚さ＝１．９０，マーク＝２ |
90520-43002 |
from US $1.14 |
||
|
33362A
|
33362A
90520-43003 Ring, Shaft Snap (For Front Bearing)[05.2007 -] TRU300,340,500 厚さ＝１．９５，マーク＝３ |
90520-43003 |
from US $2.33 |
||
|
33362A
|
33362A
90520-43004 Ring, Shaft Snap (For Front Bearing)[05.2007 -] TRU300,340,500 厚さ＝２．００，マーク＝４ |
90520-43004 |
from US $0.92 |
||
|
33362A
|
33362A
90520-43005 Ring, Shaft Snap (For Front Bearing)[05.2007 -] TRU300,340,500 厚さ＝２．０５，マーク＝５ |
90520-43005 |
from US $1.75 |
||
|
33362A
|
33362A
90520-43006 Ring, Shaft Snap (For Front Bearing)[05.2007 -] TRU300,340,500 厚さ＝２．１０，マーク＝６ |
90520-43006 |
from US $1.75 |
||
|
33362A
|
33362A
90520-43007 Ring, Shaft Snap (For Front Bearing)[05.2007 -] TRU300,340,500 厚さ＝２．１５，マーク＝７ |
90520-43007 |
US $1.75 |
||
|
33363
|
33363
33363-37050 Sleeve, Transmission Hub, No.1[05.2007 - 04.2011] TRU300,340,500 |
33363-37050 |
US $104.83 |
||
| replacement | |||||
|
33363
|
33363
33361-37H01 Hub, Transmission Clutch, No.1[05.2007 - 04.2011] TRU300,340,500 |
33361-37H01 |
US $107.74 |
||
|
33363
|
33363
33363-37051 Sleeve, Transmission Hub, No.1[04.2011 -] TRU300,340,500 |
33363-37051 |
US $74.26 |
||
|
33364
|
33364
33364-36061 Sleeve, Transmission Hub, No.2[05.2007 -] TRU300,340,500 |
33364-36061 |
from US $84.91 |
||
|
33365
|
33365
33365-37040 Key, Synchromesh Shifting, No.1[05.2007 -] TRU300,340,500 |
33365-37040 |
US $5.38 |
||
|
33366
|
33366
33366-36032 Key, Synchromesh Shifting, No.2[05.2007 -] TRU300,340,500 |
33366-36032 |
from US $7.35 |
||
|
33367
|
33367
33367-37020 Ring, Synchronizer, No.1[05.2007 -] TRU300,340,500 |
33367-37020 |
US $51.06 |
||
|
33368
|
33368
33368-36051 Ring, Synchronizer, No.2[05.2007 -] TRU300,340,500 |
33368-36051 |
from US $32.10 |
||
|
33369
|
33369
33369-36010 Ring, Synchronizer, No.3[05.2007 -] TRU300,340,500 |
33369-36010 |
from US $34.83 |
||
|
33371
|
33371
33371-36030 Spring, Synchromesh Shifting Key, No.1[05.2007 -] TRU300,340,500 |
33371-36030 |
from US $3.33 |
||
|
33387A
|
33387A
33387-37010 Ring, Reverse Synchronizer[05.2007 -] TRU300,340,500 |
33387-37010 |
US $47.76 |
||
|
33391
|
33391
33391-36021 Spring, Synchromesh Shifting Key, No.2[05.2007 -] TRU300,340,500 |
33391-36021 |
from US $2.18 |
||
|
33392
|
33392
33392-36010 Spring, Synchromesh Shifting Key, No.3[05.2007 -] TRU300,340,500 |
33392-36010 |
from US $1.58 |
||
|
33393
|
33393
33393-36060 Hub, Transmission Clutch, No.3[05.2007 -] TRU300,340,500 |
33393-36060 |
from US $40.19 |
||
|
33393A
|
33393A
90520-28054 Ring, Shaft Snap (For Clutch Hub No.2 Setting)[05.2007 -] TRU300,340,500 厚さ＝１．９０−１．９５，マーク ４ |
90520-28054 |
from US $0.87 |
||
|
33393A
|
33393A
90520-28055 Ring, Shaft Snap (For Clutch Hub No.2 Setting)[05.2007 -] TRU300,340,500 厚さ＝１．９５−２．００，マーク ５ |
90520-28055 |
from US $0.87 |
||
|
33393A
|
33393A
90520-28056 Ring, Shaft Snap (For Clutch Hub No.2 Setting)[05.2007 -] TRU300,340,500 厚さ＝２．００−２．０５，マーク ６ |
90520-28056 |
US $0.87 |
||
|
33393A
|
33393A
90520-28057 Ring, Shaft Snap (For Clutch Hub No.2 Setting)[05.2007 -] TRU300,340,500 厚さ＝２．０５−２．１０，マーク ７ |
90520-28057 |
US $0.87 |
||
|
33393A
|
33393A
90520-28058 Ring, Shaft Snap (For Clutch Hub No.2 Setting)[05.2007 -] TRU300,340,500 厚さ＝２．１０−２．１５，マーク ８ |
90520-28058 |
US $0.87 |
||
|
33393A
|
33393A
90520-28059 Ring, Shaft Snap (For Clutch Hub No.2 Setting)[05.2007 -] TRU300,340,500 厚さ＝２．１５−２．２０，マーク ９ |
90520-28059 |
US $0.87 |
||
|
33394
|
33394
33394-36020 Key, Synchromesh Shifting, No.3[05.2007 -] TRU300,340,500 |
33394-36020 |
from US $3.43 |
||
|
33395
|
33395
33395-36030 Sleeve, Transmission Hub, No.3[05.2007 -] TRU300,340,500 |
33395-36030 |
from US $68.84 |
||
|
33402
|
33402
33461-36090 Gear Sub-Assy, Reverse Idler[05.2007 -] TRU300,340,500 |
33461-36090 |
US $113.57 |
||
|
33411A
|
33411A
90365-37006 Bearing Or Roller(For Counter Gear Front)[05.2007 -] TRU300,340,500 |
90365-37006 |
from US $28.56 |
||
|
33411H
|
33411H
90363-30049 Bearing Or Roller(For Counter Gear Rear)[05.2007 -] TRU300,340,500 |
90363-30049 |
from US $29.57 |
||
|
33411R
|
33411R
90520-26030 Ring, Shaft Snap (For Front Bearing)[05.2007 -] TRU300,340,500 厚さ＝１．９５−２．００ |
90520-26030 |
from US $0.87 |
||
|
33411R
|
33411R
90520-26031 Ring, Shaft Snap (For Front Bearing)[05.2007 -] TRU300,340,500 厚さ＝２．００−２．０５ |
90520-26031 |
US $0.87 |
||
|
33411R
|
33411R
90520-26032 Ring, Shaft Snap (For Front Bearing)[05.2007 -] TRU300,340,500 厚さ＝２．０５−２．１０ |
90520-26032 |
US $0.87 |
||
|
33411R
|
33411R
90520-26033 Ring, Shaft Snap (For Front Bearing)[05.2007 -] TRU300,340,500 厚さ＝２．１０−２．１５ |
90520-26033 |
US $0.87 |
||
|
33411R
|
33411R
90520-26034 Ring, Shaft Snap (For Front Bearing)[05.2007 -] TRU300,340,500 厚さ＝２．１５−２．２０ |
90520-26034 |
US $0.87 |
||
|
33411R
|
33411R
90520-26035 Ring, Shaft Snap (For Front Bearing)[05.2007 -] TRU300,340,500 厚さ＝２．２０−２．２５ |
90520-26035 |
from US $0.79 |
||
|
33421
|
33421
33421-37040 Gear, Counter[05.2007 -] TRU300,340,500 |
33421-37040 |
US $451.36 |
||
|
33451
|
33451
33451-36050 Shaft, Reverse Idler Gear[05.2007 -] TRU300,340,500 |
33451-36050 |
US $14.27 |
||
|
33451A
|
33451A
90280-03002 Key, Woodruff (For Reverse Idler Gear Shaft)[05.2007 -] BZU300,340,TRU300,340,500 |
90280-03002 |
US $1.61 |
||
|
33461A
|
33461A
90364-28018 Bearing, Reverse Idler Gear[05.2007 -] TRU300,340,500 |
90364-28018 |
from US $34.61 |
||
|
33462
|
33462
33462-60020 Washer, Reverse Idler Thrust[05.2007 -] TRU300,340,500 |
33462-60020 |
from US $5.34 |
||
|
33464
|
33464
33464-60010 Washer, Reverse Idler Thrust, No.2[05.2007 -] TRU300,340,500 |
33464-60010 |
from US $4.30 |
||
|
33481
|
33481
33481-36160 Gear, Speedometer Drive (Mtm)[05.2007 -] BZU340..30T;TRU300,340,500 歯数＝６，マーク ６Ｘ２３−２５ |
33481-36160 |
US $16.74 |
||
|
33481D
|
33481D
33487-36070 Spacer (For Speedometer Drive Gear)[05.2007 -] TRU300,340,500 |
33487-36070 |
US $7.13 |
||
