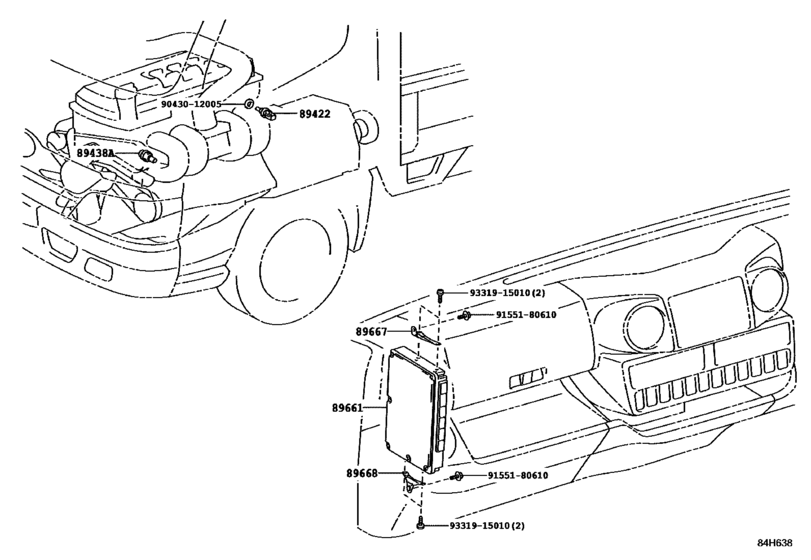

Electronic Fuel Injection System ([10.2016 - ] (1610- )TRY231,281) Diagram Toyota DYNA/ TOYOACE
- Year
- 2007 - 2018
- Sales region
- Japan
- Frame
- TRY231
- ENGINE
- 1TRFPE
- TRANSMISSION
- MTM
- Model
- DYNA/TOYOACE
- From
- 12.2007
- Loading Capacity
- 15T
- Deck,cab
- T4
- Fuel Induction
- LPG
- Deck,cab
- TB
- Building Condition
- CBU
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
89422
|
89422
89422-33030 Sensor, Water Temperature (For E.f.i.)[08.2003 -] TRY220,23#,281 |
89422-33030 |
from US $40.49 |
||
|
89438A
|
89438A
89438-33010 Switch, Power Steering Oil Pressure[08.2003 - 07.2016] TRY220,23#,281 |
89438-33010 |
from US $29.78 |
||
|
89438A
|
89438A
89438-71010 Switch, Power Steering Oil Pressure[08.2016 -] TRY220,23#,281 |
89438-71010 |
from US $25.56 |
||
|
89661
|
89661
89661-25180 Computer, Engine Control[12.2007 - 09.2009] TRY231,281..MTM |
89661-25180 |
US $1,445.81 |
||
| replacement | |||||
|
89661
|
89661
89661-25182 Computer, Engine Control[12.2007 - 09.2009] TRY231,281..MTM |
89661-25182 |
US $1,092 |
||
|
89661
|
89661
89661-25181 Computer, Engine Control[09.2009 - 05.2012] TRY231,281..MTM |
89661-25181 |
US $1,441.44 |
||
| replacement | |||||
|
89661
|
89661
89661-25182 Computer, Engine Control[09.2009 - 05.2012] TRY231,281..MTM |
89661-25182 |
US $1,092 |
||
|
89661
|
89661
89661-25182 Computer, Engine Control[06.2012 -] TRY231,281..MTM |
89661-25182 |
US $1,092 |
||
|
89667
|
89667
89667-25070 Bracket, Engine Control Computer[12.2007 - 10.2016] TRY231,281 |
89667-25070 |
US $4.37 |
||
|
89667
|
89667
89667-25120 Bracket, Engine Control Computer[10.2016 -] TRY231,281 |
89667-25120 |
US $3.93 |
||
|
89668
|
89668
89668-25080 Bracket, Engine Control Computer, No.2[12.2007 - 10.2016] TRY231,281 |
89668-25080 |
US $4.37 |
||
|
89668
|
89668
89668-25110 Bracket, Engine Control Computer, No.2[10.2016 -] TRY231,281 |
89668-25110 |
US $3.49 |
||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.68 |
||
|
9155180610
|
9155180610
91551-80610 BOLT FLANGE |
91551-80610 |
US $1.08 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $0.83 |
||
