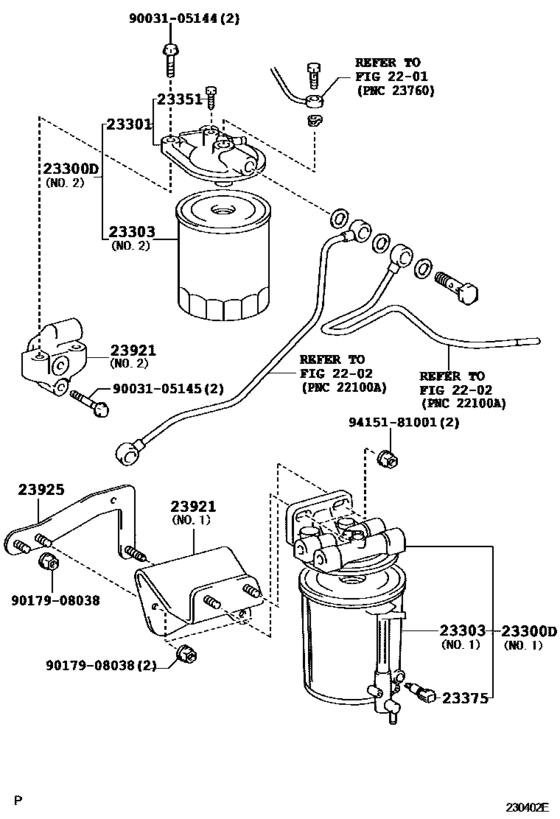

Fuel Filter ([10.2006 - ] (0610- )W04D..WU302,342..GEN) Diagram Toyota DYNA/ TOYOACE
- Year
- 2006 - 2011
- Sales region
- General
- Frame
- WU302
- ENGINE
- W04D
- DESTINATION
- GEN
- DECK
- TS
- From
- 10.2006
- To
- 06.2011
- Loading Capacity
- 55T
- Driver's Position
- LHD
- Fuel Induction
- DCRTJ
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23300D
|
23300D
23300-78110
Filter Assy, Fuel(For Diesel)
[10.2006 - 06.2011] W04D..WU30#,34#..GCC,GEN NO.1 |
23300-78110 |
— | ||
|
23300D
|
23300D
23300-78370
Filter Assy, Fuel(For Diesel)
[10.2006 - 06.2011] W04D..WU302,342..GEN NO.2 |
23300-78370 |
— | ||
| replacement | |||||
|
23300D
|
23300D
S2330-02360 Filter Assy, Fuel(For Diesel)[10.2006 - 06.2011] W04D..WU302,342..GEN NO.2 |
S2330-02360 |
US $152.88 |
||
|
23301
|
23301
23311-78370
Body Sub-Assy, Fuel Filter
[10.2006 - 06.2011] W04D..WU302,342..GEN |
23311-78370 |
— | ||
| replacement | |||||
|
23301
|
23301
S2331-01660 Body Sub-Assy, Fuel Filter[10.2006 - 06.2011] W04D..WU302,342..GEN |
S2331-01660 |
US $128.13 |
||
|
23303
|
23303
23304-78110
Element Sub-Assy, Fuel Filter
[10.2006 - 06.2011] W04D..WU30#,34#..GCC,GEN NO.1 |
23304-78110 |
— | ||
|
23303
|
23303
23304-78370
Element Sub-Assy, Fuel Filter
[10.2006 - 06.2011] W04D..WU302,342..GEN NO.2 |
23304-78370 |
— | ||
|
23351
|
23351
23322-78030 Plug, Drain(For Fuel Filter)[10.2006 - 06.2011] W04D..WU30#,34#..GCC,GEN |
23322-78030 |
US $3.49 |
||
|
23375
|
23375
23375-78110 Sensor, Fuel FilterFUEL FILTER [10.2006 - 06.2011] W04D..WU30#,34#..GCC,GEN |
23375-78110 |
US $352.35 |
||
|
23921
|
23921
23264-78050
Support, Fuel Filter
[10.2006 - 06.2011] W04D..WU302,342..GEN NO.2 |
23264-78050 |
— | ||
| replacement | |||||
|
23921
|
23921
23264-E0220 Support, Fuel Filter[10.2006 - 06.2011] W04D..WU302,342..GEN NO.2 |
23264-E0220 |
US $100.46 |
||
|
23921
|
23921
23921-78180 Support, Fuel FilterFUEL FILTER [10.2006 - 06.2011] W04D..WU30#,34#..GCC,GEN NO.1 |
23921-78180 |
US $94.64 |
||
|
23925
|
23925
23925-78031 Stay, Fuel Filter SupportFUEL FILTER SUPPORT [10.2006 - 06.2011] W04D..WU30#,34#..GCC,GEN |
23925-78031 |
US $10.05 |
||
|
9003105144
|
9003105144
90031-05144 Bolt(For Cylinder Head Set) |
90031-05144 |
US $3.58 |
||
|
9003105145
|
9003105145
90031-05145 New Genuine Part |
90031-05145 |
US $6.84 |
||
|
9017908038
|
9017908038
90179-08038 Nut (For Transmission Control Cable) |
90179-08038 |
from US $0.80 |
||
|
9415181001
|
9415181001
94151-81001 NUT FLANGE |
94151-81001 |
US $1.97 |
||
