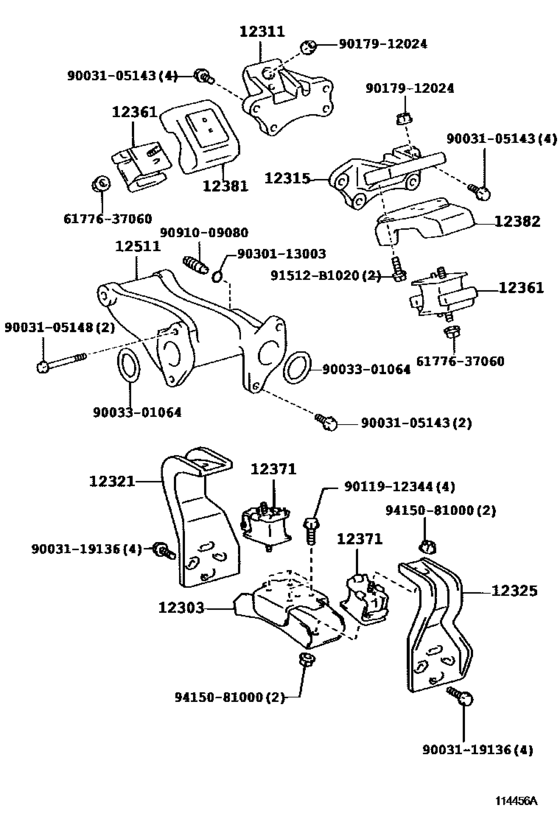

Mounting ([10.2006 - ] (0610- )W04D..WU302,342..GEN) Diagram Toyota DYNA/ TOYOACE
- Year
- 2006 - 2011
- Sales region
- General
- Frame
- WU302
- ENGINE
- W04D
- DESTINATION
- GEN
- DECK
- TS
- From
- 10.2006
- To
- 06.2011
- Loading Capacity
- 55T
- Driver's Position
- LHD
- Fuel Induction
- DCRTJ
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12303
|
12303
12303-78010
Bracket Sub-Assy, Engine Mounting, Rear
[10.2006 - 06.2011] W04D..WU30#,34#..GCC,GEN |
12303-78010 |
— | ||
| replacement | |||||
|
12303
|
12303
12303-78011 Bracket Sub-Assy, Engine Mounting, Rear[10.2006 - 06.2011] W04D..WU30#,34#..GCC,GEN |
12303-78011 |
US $51.02 |
||
|
12311
|
12311
12311-78050 Bracket, Engine Mounting, Front No.1 Rh[10.2006 - 06.2011] W04D..WU30#,34#..GCC,GEN |
12311-78050 |
US $61.15 |
||
| replacement | |||||
|
12311
|
12311
12311-E0230 Bracket, Engine Mounting, Front No.1 Rh[10.2006 - 06.2011] W04D..WU30#,34#..GCC,GEN |
12311-E0230 |
US $116.48 |
||
|
12315
|
12315
12315-78030 Bracket, Engine Mounting, Front No.1 LhENGINE MOUNTING, FRONT NO.1 LH [10.2006 - 06.2011] W04D..WU30#,34#..GCC,GEN |
12315-78030 |
US $71.49 |
||
| replacement | |||||
|
12315
|
12315
S1231-51940 Bracket, Engine Mounting, Front No.1 Lh[10.2006 - 06.2011] W04D..WU30#,34#..GCC,GEN |
S1231-51940 |
US $144.14 |
||
|
12321
|
12321
12321-78220 Bracket, Engine Mounting, Rear, No.1[10.2006 - 06.2011] W04D..WU302,342..GEN |
12321-78220 |
US $77.17 |
||
| replacement | |||||
|
12321
|
12321
12321-78221 Bracket, Engine Mounting, Rear, No.1[10.2006 - 06.2011] W04D..WU302,342..GEN |
12321-78221 |
US $57.80 |
||
|
12325
|
12325
12325-78200 Bracket, Engine Mounting, No.3[10.2006 - 06.2011] W04D..WU302,342..GEN |
12325-78200 |
US $77.17 |
||
| replacement | |||||
|
12325
|
12325
12325-78201 Bracket, Engine Mounting, No.3[10.2006 - 06.2011] W04D..WU302,342..GEN |
12325-78201 |
US $57.80 |
||
|
12361
|
12361
12361-78080 Insulator, Engine Mounting, FrontENGINE MOUNTING, FRONT [10.2006 - 06.2011] W04D..WU302,342..GEN |
12361-78080 |
US $80.08 |
||
| replacement | |||||
|
12361
|
12361
12361-78081
Insulator, Engine Mounting, Front
[10.2006 - 06.2011] W04D..WU302,342..GEN |
12361-78081 |
— | ||
|
12371
|
12371
12371-78010
Insulator, Engine Mounting, Rear No.1
[10.2006 - 06.2011] W04D..WU30#,34#..GCC,GEN |
12371-78010 |
— | ||
| replacement | |||||
|
12371
|
12371
12371-78060 INSULATOR ENGINE[10.2006 - 06.2011] W04D..WU30#,34#..GCC,GEN |
12371-78060 |
from US $36.96 |
||
|
12381
|
12381
12381-78030 Stabilizer, Engine Mounting[10.2006 - 06.2011] W04D..WU302,342..GEN |
12381-78030 |
US $31.60 |
||
| replacement | |||||
|
12381
|
12381
12381-78032 Stabilizer, Engine Mounting[10.2006 - 06.2011] W04D..WU302,342..GEN |
12381-78032 |
US $26.50 |
||
|
12382
|
12382
12382-78040
Stabilizer, Engine Mounting, Lh
[10.2006 - 06.2011] W04D..WU302,342..GEN |
12382-78040 |
— | ||
|
12511
|
12511
12501-78050
Bracket, Alternator, No.1
[10.2006 - 06.2011] W04D..WU302,342..GEN |
12501-78050 |
— | ||
| replacement | |||||
|
12511
|
12511
S1250-82080
Bracket, Alternator, No.1
[10.2006 - 06.2011] W04D..WU302,342..GEN |
S1250-82080 |
— | ||
|
91512B1020
|
91512B1020
91512-B1020 Bolt(For Front Transaxle Case Cover) |
91512-B1020 |
US $1.89 |
||
| replacement | |||||
|
91512B1020
|
91512B1020
90105-A0050 Bolt(For Front Transaxle Case Cover) |
90105-A0050 |
US $3.96 |
||
|
6177637060
|
6177637060
61776-37060 Strength, Quarter Panel Horizontal, Lower Center Rh |
61776-37060 |
US $8.59 |
||
| replacement | |||||
|
6177637060
|
6177637060
61776-37061 Strength, Quarter Panel Horizontal, Lower Center Rh |
61776-37061 |
US $6.41 |
||
|
9003105143
|
9003105143
90031-05143 New Genuine Part |
90031-05143 |
US $1.79 |
||
|
9003105148
|
9003105148
90031-05148 New Genuine Part |
90031-05148 |
US $2.33 |
||
|
9003119136
|
9003119136
90031-19136 BOLT WWASHER |
90031-19136 |
US $2.51 |
||
|
9003301064
|
9003301064
90033-01064 Ring, O(For Timing Gear Cover) |
90033-01064 |
US $4.66 |
||
|
9011912344
|
9011912344
90119-12344 New Genuine Part |
90119-12344 |
US $4.02 |
||
|
9017912024
|
9017912024
90179-12024 NUT |
90179-12024 |
from US $1.09 |
||
|
9030113003
|
9030113003
90301-13003 New Genuine Part |
90301-13003 |
US $2.91 |
||
|
9091009080
|
9091009080
90910-09080 Plug, Drain Cock |
90910-09080 |
US $17.56 |
||
|
9415081000
|
9415081000
94150-81000 NUT FLANGE |
94150-81000 |
US $1.79 |
||
