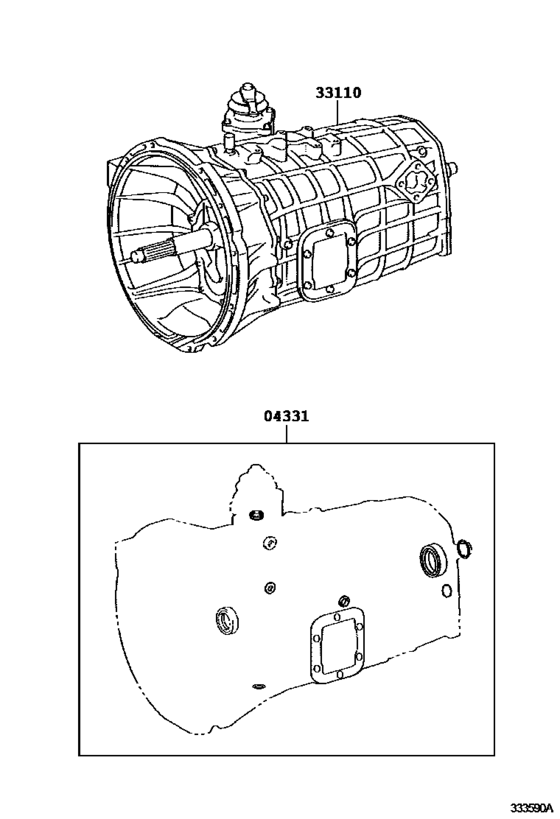

Transaxle Or Transmission Assy & Gasket Kit (Mtm) ([10.2006 - ] M550 (0610- )WU342..DCRTJ,DCRTR ; (0610- )WU302 ,XZU307,337..LHD..48T,55T,65T) Diagram Toyota DYNA/ TOYOACE
- Year
- 2006 - 2011
- Sales region
- General
- Frame
- WU302
- ENGINE
- W04D
- DESTINATION
- GEN
- DECK
- TS
- From
- 10.2006
- To
- 06.2011
- Loading Capacity
- 55T
- Driver's Position
- LHD
- Fuel Induction
- DCRTJ
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04331
|
04331
04331-37121 Gasket Kit, Manual Transmission Overhaul[10.2006 - 06.2011] WU302,342..GEN |
04331-37121 |
US $26.70 |
||
|
33110
|
33110
33110-37D80
Transmission Assy, Manual
[10.2006 - 04.2010] WU342..65T..DCRTJ..IDN;WU302,342..(48T,55T)..GEN M550 |
33110-37D80 |
— | ||
| replacement | |||||
|
33110
|
33110
33110-37D87
Transmission Assy, Manual
[10.2006 - 04.2010] WU342..65T..DCRTJ..IDN;WU302,342..(48T,55T)..GEN M550 |
33110-37D87 |
— | ||
|
33110
|
33110
33110-37D82
Transmission Assy, Manual
[04.2010 - 06.2011] WU302,342..(48T,55T)..GEN M550 |
33110-37D82 |
— | ||
| replacement | |||||
|
33110
|
33110
33110-37D87
Transmission Assy, Manual
[04.2010 - 06.2011] WU302,342..(48T,55T)..GEN M550 |
33110-37D87 |
— | ||
|
33110
|
33110
33110-37D90
Transmission Assy, Manual
[10.2006 - 04.2010] WU342..65T..GEN;WU342..75T..DCRTJ M550; WU302,342..55T;WU342..65T..DCRTJ..IDN M550,W(DRIVEN GEAR N=23) |
33110-37D90 |
— | ||
| replacement | |||||
|
33110
|
33110
33110-37D97
Transmission Assy, Manual
[10.2006 - 04.2010] WU342..65T..GEN;WU342..75T..DCRTJ M550; WU302,342..55T;WU342..65T..DCRTJ..IDN M550,W(DRIVEN GEAR N=23) |
33110-37D97 |
— | ||
|
33110
|
33110
33110-37D92
Transmission Assy, Manual
[04.2010 - 06.2011] WU342..65T..GEN M550; WU302,342..55T M550,W(DRIVEN GEAR N=23) |
33110-37D92 |
— | ||
| replacement | |||||
|
33110
|
33110
33110-37D97
Transmission Assy, Manual
[04.2010 - 06.2011] WU342..65T..GEN M550; WU302,342..55T M550,W(DRIVEN GEAR N=23) |
33110-37D97 |
— | ||
