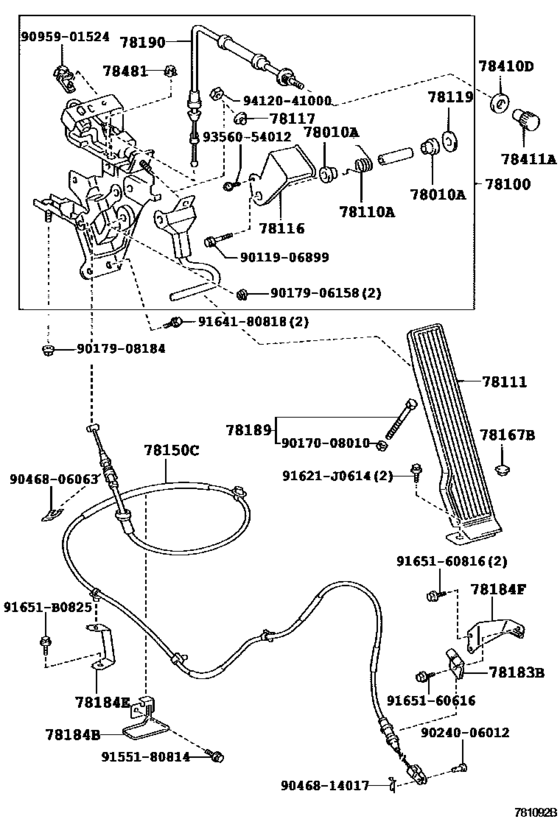

Accelerator Link ([10.2006 - ] (0610- )WU302,342..GEN) Diagram Toyota DYNA/ TOYOACE
- Year
- 2006 - 2011
- Sales region
- General
- Frame
- WU342
- ENGINE
- W04D
- DESTINATION
- GEN
- DECK
- T3
- From
- 10.2006
- To
- 06.2011
- Loading Capacity
- 65T
- Driver's Position
- LHD
- Fuel Induction
- DCRTJ
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78010A
|
78010A
90386-08065 Bush (For Accelerator Link)[10.2006 - 06.2011] WU30#,34#..GCC,GEN |
90386-08065 |
US $1.31 |
||
|
78100
|
78100
78100-37730
Link Assy, Accelerator
[10.2006 - 06.2011] WU30#,34#..LHD |
78100-37730 |
— | ||
|
78110A
|
78110A
90959-03243 Spring (For Accelerator Pedal Rod)[10.2006 - 06.2011] WU30#,34#..GCC,GEN |
90959-03243 |
US $2.18 |
||
|
78111
|
78111
78010-37010 Pedal, AcceleratorACCELERATOR [10.2006 - 06.2011] WU30#,34#..LHD |
78010-37010 |
from US $10.83 |
||
|
78116
|
78116
78116-37010 Cover, Accelerator Pedal Rod[10.2006 - 06.2011] WU30#,34#..GCC,GEN |
78116-37010 |
US $5.82 |
||
|
78117
|
78117
90541-06038 Cushion(For Parking Brake Pedal)[10.2006 - 06.2011] WU30#,34#..GCC,GEN |
90541-06038 |
US $2.15 |
||
|
78119
|
78119
78119-37010 Stopper, Accelerator Pedal Rod[01.2011 - 06.2011] WU30#,34#..GCC,GEN |
78119-37010 |
US $0.58 |
||
|
78119
|
78119
78119-95J00 Stopper, Accelerator Pedal Rod[10.2006 - 12.2010] WU30#,34#..GCC,GEN |
78119-95J00 |
US $2.62 |
||
| replacement | |||||
|
78119
|
78119
78119-37010 Stopper, Accelerator Pedal Rod[10.2006 - 12.2010] WU30#,34#..GCC,GEN |
78119-37010 |
US $0.58 |
||
|
78150C
|
78150C
78150-37710
Wire Assy, Accelerator Flexible
[10.2006 - 11.2006] WU302,342 |
78150-37710 |
— | ||
| replacement | |||||
|
78150C
|
78150C
78150-37711
Wire Assy, Accelerator Flexible
[10.2006 - 11.2006] WU302,342 |
78150-37711 |
— | ||
|
78150C
|
78150C
78150-37711
Wire Assy, Accelerator Flexible
[12.2006 - 06.2011] WU302,342..GEN |
78150-37711 |
— | ||
|
78167B
|
78167B
78167-25010 Seal, Accelerator Control[10.2006 - 06.2011] WU30#,34#..LHD |
78167-25010 |
US $0.58 |
||
|
78183B
|
78183B
78183-37330 Clamp, Accelerator Control Cable[10.2006 - 06.2011] WU30#,34#..GCC,GEN |
78183-37330 |
US $3.64 |
||
|
78184B
|
78184B
78184-37140 Bracket, Accelerator Control CableACCELERATOR CONTROL CABLE [10.2006 - 06.2011] WU30#,34#..LHD |
78184-37140 |
US $6.26 |
||
|
78184E
|
78184E
78184-37260
Bracket, Accelerator Control Cable
[10.2006 - 06.2011] WU30#,34#..LHD |
78184-37260 |
— | ||
|
78184F
|
78184F
78184-37270
Bracket, Accelerator Control Cable
[10.2006 - 06.2011] WU302,342..GEN |
78184-37270 |
— | ||
|
78189
|
78189
78208-37100 Bolt, Accelerator Pedal StopperACCELERATOR PEDAL STOPPER [10.2006 - 06.2011] WU30#,34#..LHD |
78208-37100 |
US $2.91 |
||
| replacement | |||||
|
78189
|
78189
78208-37170
Bolt, Accelerator Pedal Stopper
[10.2006 - 06.2011] WU30#,34#..LHD |
78208-37170 |
— | ||
|
78190
|
78190
78190-37030
Cable Assy, Accel Control W/throttle
[10.2006 - 06.2011] WU30#,34#..LHD |
78190-37030 |
— | ||
|
78410D
|
78410D
78314-95010 Nut, Choke[10.2006 - 06.2011] WU30#,34#..GCC,GEN |
78314-95010 |
from US $1.88 |
||
|
78411A
|
78411A
78411-95J01 Knob, Throttle Cable[10.2006 - 06.2011] WU30#,34#..GCC,GEN |
78411-95J01 |
from US $4.95 |
||
|
78481
|
78481
78481-37010 Clamp, Throttle Wire[10.2006 - 06.2011] WU30#,34#..GCC,GEN |
78481-37010 |
US $1.10 |
||
|
91621J0614
|
91621J0614
91621-J0614 BOLT W-WASHER |
91621-J0614 |
from US $0.90 |
||
|
91651B0825
|
91651B0825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.84 |
||
|
9011906899
|
9011906899
90119-06899 New Genuine Part |
90119-06899 |
US $1.31 |
||
|
9017008010
|
9017008010
90170-08010 New Genuine Part |
90170-08010 |
US $0.73 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.98 |
||
|
9017908184
|
9017908184
90179-08184 NUT |
90179-08184 |
US $1.61 |
||
|
9024006012
|
9024006012
90240-06012
PIN WHOLE
|
90240-06012 |
— | ||
|
9046806063
|
9046806063
90468-06063 CLIP |
90468-06063 |
US $1.61 |
||
|
9046814017
|
9046814017
90468-14017 Clip, No.2(For Parking Brake) |
90468-14017 |
from US $0.82 |
||
|
9095901524
|
9095901524
90959-01524 New Genuine Part |
90959-01524 |
US $1.22 |
||
|
9155180814
|
9155180814
91551-80814 Bolt, Hexagon (For Rear Spring Seat Bolt) |
91551-80814 |
US $1.43 |
||
|
9164180818
|
9164180818
91641-80818 BOLT WWASHER |
91641-80818 |
from US $0.78 |
||
|
9165160616
|
9165160616
91651-60616 BOLT |
91651-60616 |
from US $0.94 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.01 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 BOLT |
90080-11396 |
US $3.32 |
||
|
9356054012
|
9356054012
93560-54012 Screw |
93560-54012 |
from US $0.66 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.76 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
