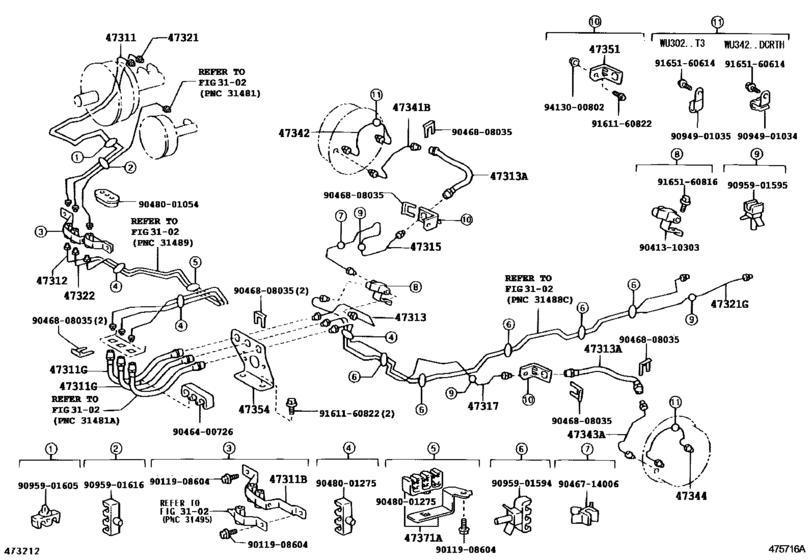

Brake Tube & Clamp ([12.2006 - ] (0612- )DCRTH..T3) Diagram Toyota DYNA/ TOYOACE
- Year
- 2006 - 2010
- Sales region
- General
- Frame
- WU342
- ENGINE
- W04D
- DESTINATION
- IDN
- DECK
- T3
- From
- 12.2006
- To
- 05.2010
- Loading Capacity
- 65T
- Driver's Position
- RHD
- Fuel Induction
- DCRTH
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47311
|
47311
47311-0W010
Tube, Front Brake, No.1
[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
47311-0W010 |
— | ||
|
47311B
|
47311B
47391-37130 Way, No.1(For Front Brake Tube)NO.1(FOR FRONT BRAKE TUBE) [12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
47391-37130 |
US $9.46 |
||
|
47311G
|
47311G
90947-02A79 Hose, Flexible(For Brake Tube)[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
90947-02A79 |
US $22.18 |
||
|
47312
|
47312
47312-0W030
Tube, Front Brake, No.2
[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
47312-0W030 |
— | ||
|
47313
|
47313
47313-0W030
Tube, Front Brake, No.3
[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
47313-0W030 |
— | ||
|
47313A
|
47313A
90947-02D21
Hose, Flexible, No.1(For Front)
[12.2006 - 05.2010] WU342..DCRTH |
90947-02D21 |
— | ||
|
47315
|
47315
47315-0W030 Tube, Front Brake, No.5FRONT BRAKE, NO.5 [12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
47315-0W030 |
US $12.67 |
||
|
47317
|
47317
47317-0W010
Tube, Front Brake, No.7
[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
47317-0W010 |
— | ||
|
47321
|
47321
47321-0W030
Tube, Rear Brake, No.1
[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
47321-0W030 |
— | ||
|
47321G
|
47321G
47321-0W050 Tube, Rear Brake, Frame No.1REAR BRAKE, FRAME NO.1 [12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
47321-0W050 |
US $34.36 |
||
|
47322
|
47322
47322-0W010
Tube, Rear Brake, No.2
[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
47322-0W010 |
— | ||
|
47341B
|
47341B
47341-0W010
Tube, Wheel Cylinder, Front Rh No.1
[12.2006 - 05.2010] WU342..DCRTH |
47341-0W010 |
— | ||
|
47342
|
47342
47342-36030 Tube, Wheel Cylinder, Front Rh No.2[12.2006 - 05.2010] WU342..DCRTH |
47342-36030 |
US $6.99 |
||
|
47343A
|
47343A
47343-0W010
Tube, Wheel Cylinder, Front Lh No.1
[12.2006 - 05.2010] WU342..DCRTH |
47343-0W010 |
— | ||
|
47344
|
47344
47342-36030 Tube, Wheel Cylinder, Front Rh No.2[12.2006 - 05.2010] WU342..DCRTH |
47342-36030 |
US $6.99 |
||
|
47351
|
47351
47351-0W010
Bracket, Flexible Hose(For Front Rh)
[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
47351-0W010 |
— | ||
|
47354
|
47354
47354-37111 Bracket, Front Flexible Hose[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
47354-37111 |
US $11.07 |
||
|
47371A
|
47371A
47371-0W010
Clamp, Brake Tube, No.1
[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
47371-0W010 |
— | ||
|
9011908604
|
9011908604
90119-08604 BOLT |
90119-08604 |
US $2.87 |
||
|
9041310303
|
9041310303
90413-10303 New Genuine Part |
90413-10303 |
US $10.92 |
||
|
9046400726
|
9046400726
90464-00726 Clamp, Brake Tube, No.4 |
90464-00726 |
US $13.83 |
||
|
9046714006
|
9046714006
90467-14006 New Genuine Part |
90467-14006 |
US $4.12 |
||
|
9046808035
|
9046808035
90468-08035 CLIP |
90468-08035 |
from US $1.13 |
||
|
9048001054
|
9048001054
90480-01054 Grommet(For Brake Tube) |
90480-01054 |
US $2.77 |
||
|
9048001275
|
9048001275
90480-01275 Clamp, Brake Tube, No.7 |
90480-01275 |
US $3.94 |
||
|
9094901034
|
9094901034
90949-01034 New Genuine Part |
90949-01034 |
US $3.93 |
||
|
9094901035
|
9094901035
90949-01035 New Genuine Part |
90949-01035 |
US $4.37 |
||
|
9095901594
|
9095901594
90959-01594 Clamp, Brake Tube, No.9 |
90959-01594 |
US $2.06 |
||
|
9095901595
|
9095901595
90959-01595 Clamp, Brake Tube, No.1 |
90959-01595 |
US $2.18 |
||
|
9095901605
|
9095901605
90959-01605 New Genuine Part |
90959-01605 |
US $2.33 |
||
|
9095901616
|
9095901616
90959-01616 New Genuine Part |
90959-01616 |
US $2.18 |
||
|
9161160822
|
9161160822
91611-60822 Bolt |
91611-60822 |
from US $1.19 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.01 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 BOLT |
90080-11396 |
US $3.32 |
||
|
9413000802
|
9413000802
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.84 |
||
| replacement | |||||
|
9413000802
|
9413000802
90170-A0001
New Genuine Part
|
90170-A0001 |
— | ||
