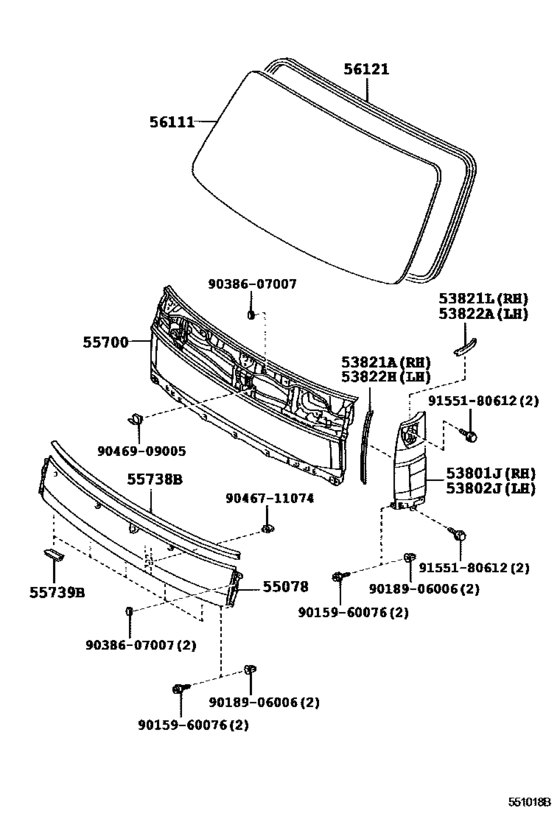

Front Panel & Windshield Glass ([09.2002 - ] (0209- )IDN) Diagram Toyota DYNA/ TOYOACE
- Year
- 2006 - 2010
- Sales region
- General
- Frame
- WU342
- ENGINE
- W04D
- DESTINATION
- IDN
- DECK
- T3
- From
- 12.2006
- To
- 05.2010
- Loading Capacity
- 65T
- Driver's Position
- RHD
- Fuel Induction
- DCRTH
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53801J
|
53801J
53801-37050
Panel Sub-Assy, Front Side, Rh
[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
53801-37050 |
— | ||
|
53802J
|
53802J
53802-37050
Panel Sub-Assy, Front Side, Lh
[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
53802-37050 |
— | ||
|
53821A
|
53821A
53821-0W010
Protector, Front Side Panel, No.1 Rh
[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
53821-0W010 |
— | ||
|
53821L
|
53821L
53821-0W020
Protector, Front Side Panel, No.1 Rh
[12.2006 - 02.2009] WU302,342..IDN |
53821-0W020 |
— | ||
| replacement | |||||
|
53821L
|
53821L
53821-0W030
Protector, Front Side Panel, No.1 Rh
[12.2006 - 02.2009] WU302,342..IDN |
53821-0W030 |
— | ||
|
53821L
|
53821L
53821-0W030
Protector, Front Side Panel, No.1 Rh
[03.2009 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
53821-0W030 |
— | ||
|
53822A
|
53822A
53821-0W020
Protector, Front Side Panel, No.1 Rh
[12.2006 - 02.2009] WU302,342..IDN |
53821-0W020 |
— | ||
| replacement | |||||
|
53822A
|
53822A
53821-0W030
Protector, Front Side Panel, No.1 Rh
[12.2006 - 02.2009] WU302,342..IDN |
53821-0W030 |
— | ||
|
53822A
|
53822A
53821-0W030
Protector, Front Side Panel, No.1 Rh
[03.2009 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
53821-0W030 |
— | ||
|
53822H
|
53822H
53822-0W010
Protector, Front Side Panel, No.1 Lh
[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
53822-0W010 |
— | ||
|
55078
|
55078
55078-37100
Cover Sub-Assy, Front Panel
[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
55078-37100 |
— | ||
|
55700
|
55700
55700-37190
Panel Assy, Front
[12.2006 - 02.2009] WU302,342..IDN |
55700-37190 |
— | ||
| replacement | |||||
|
55700
|
55700
55700-37191
Panel Assy, Front
[12.2006 - 02.2009] WU302,342..IDN |
55700-37191 |
— | ||
|
55700
|
55700
55700-37191
Panel Assy, Front
[03.2009 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
55700-37191 |
— | ||
|
55738B
|
55738B
55738-0W010
Protector, Front Panel Cover, No.1
[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
55738-0W010 |
— | ||
|
55739B
|
55739B
55739-0W010
Protector, Front Panel Cover, No.2
[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
55739-0W010 |
— | ||
|
56111
|
56111
56111-0W570
Glass, Windshield
[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN *LAM,T=5.76,GREEN |
56111-0W570 |
— | ||
|
56121
|
56121
56121-0W010
Weatherstrip, Windshield
[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
56121-0W010 |
— | ||
|
9015960076
|
9015960076
90159-60076 SCREW, W/WASHER TAPP |
90159-60076 |
US $3.94 |
||
|
9018906006
|
9018906006
90189-06006 Grommet |
90189-06006 |
from US $0.98 |
||
|
9038607007
|
9038607007
90386-07007 Cap, Front Bumper, Side Support |
90386-07007 |
US $2.62 |
||
|
9046711074
|
9046711074
90467-11074 CLIP |
90467-11074 |
US $2.15 |
||
|
9046909005
|
9046909005
90469-09005 New Genuine Part |
90469-09005 |
US $1.46 |
||
|
9155180612
|
9155180612
91551-80612 Bolt (For Front Differential Breather Plug Oil Deflector) |
91551-80612 |
from US $0.64 |
||
