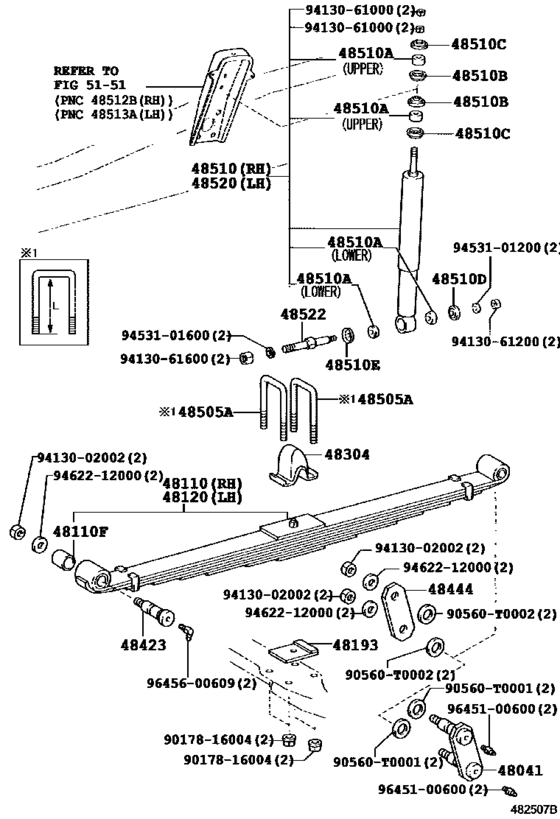

Front Spring & Shock Absorber ([12.2006 - ] (0612- )48T,65T..DCRTH,DCRTJ..IDN) Diagram Toyota DYNA/ TOYOACE
- Year
- 2006 - 2010
- Sales region
- General
- Frame
- WU342
- ENGINE
- W04D
- DESTINATION
- IDN
- DECK
- T3
- From
- 12.2006
- To
- 05.2010
- Loading Capacity
- 65T
- Driver's Position
- RHD
- Fuel Induction
- DCRTH
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48041
|
48041
48041-0W010
Shackle Sub-Assy, Front Spring, No.1
[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
48041-0W010 |
— | ||
|
48110
|
48110
48110-0W030
Spring Assy, Front, Rh
[12.2006 - 05.2010] WU342..65T..(DCRTH,DCRTJ)..IDN 6-LEAF |
48110-0W030 |
— | ||
|
48110F
|
48110F
90384-28009 Bush(For Rear Spring Leaf)[12.2006 - 05.2010] WU302,342..(48T,65T)..(DCRTH,DCRTJ)..IDN |
90384-28009 |
US $32.18 |
||
|
48120
|
48120
48110-0W040
Spring Assy, Front, Lh
[12.2006 - 05.2010] WU342..65T..(DCRTH,DCRTJ)..IDN 6-LEAF |
48110-0W040 |
— | ||
|
48193
|
48193
48193-36010 Wedge, Caster(For Front Leaf Spring)CASTER(FOR FRONT LEAF SPRING) [12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
48193-36010 |
US $9.46 |
||
|
48304
|
48304
48304-36030 Bumper, Front Spring, No.1FRONT SPRING, NO.1 [12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
48304-36030 |
US $52.42 |
||
| replacement | |||||
|
48304
|
48304
48304-36080 Bumper, Front Spring, No.1[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
48304-36080 |
US $57.80 |
||
|
48423
|
48423
48423-0W010
Pin, Front Spring Bracket
[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
48423-0W010 |
— | ||
|
48444
|
48444
48444-0W010
Plate, Front Spring Shackle, Inner
[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
48444-0W010 |
— | ||
|
48505A
|
48505A
90080-11533
Bolt, U(For Front Spring)
[12.2006 - 05.2010] WU342..(DCRTH,DCRTJ)..IDN L=160 |
90080-11533 |
— | ||
|
48510
|
48510
48511-09170
Absorber Assy, Shock, Front Rh
[12.2006 - 05.2010] WU342..(DCRTH,DCRTJ)..IDN MARK 48511-0W030 |
48511-09170 |
— | ||
|
48510A
|
48510A
90385-T0006
Cushion, Front Shock Absorber
[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN LOWER |
90385-T0006 |
— | ||
|
48510A
|
48510A
90948-01003 Rubber Cushion[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN UPPER |
90948-01003 |
from US $1.54 |
||
|
48510B
|
48510B
90948-T2001
Retainer, Cushion, No.1(For Front Shock Absorber)
[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
90948-T2001 |
— | ||
|
48510C
|
48510C
90948-02002 Retainer, Steering Damper Cushion[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
90948-02002 |
from US $1.21 |
||
|
48510D
|
48510D
90948-03003 Retainer, Cushion, No.1(For Front Shock Absorber)[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
90948-03003 |
from US $1.25 |
||
|
48510E
|
48510E
90948-03004 Retainer, Cushion, No.1(For Front Shock Absorber)[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
90948-03004 |
from US $1.31 |
||
|
48520
|
48520
48511-09170
Absorber Assy, Shock, Front Rh
[12.2006 - 05.2010] WU342..(DCRTH,DCRTJ)..IDN MARK 48511-0W030 |
48511-09170 |
— | ||
|
48522
|
48522
48522-0W010
Pin, Front Shock Absorber Lower Pivot
[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
48522-0W010 |
— | ||
|
90560T0001
|
90560T0001
90560-T0001
New Genuine Part
|
90560-T0001 |
— | ||
|
90560T0002
|
90560T0002
90560-T0002
New Genuine Part
|
90560-T0002 |
— | ||
|
9017816004
|
9017816004
90178-16004 NUT FLANGE |
90178-16004 |
US $5.56 |
||
|
9413002002
|
9413002002
94130-02002
New Genuine Part
|
94130-02002 |
— | ||
|
9413061000
|
9413061000
94130-61000 Nut(For Clutch Pedal Stopper) |
94130-61000 |
from US $0.76 |
||
|
9413061200
|
9413061200
94130-61200 Nut |
94130-61200 |
from US $0.98 |
||
|
9413061600
|
9413061600
94130-61600 Nut, Hexagon(for Sector Shaft To Pitman Arm Setting) |
94130-61600 |
US $2.15 |
||
|
9453101200
|
9453101200
94531-01200 WASHER |
94531-01200 |
from US $0.74 |
||
|
9453101600
|
9453101600
94531-01600 WASHER |
94531-01600 |
US $0.61 |
||
|
9462212000
|
9462212000
94622-12000 New Genuine Part |
94622-12000 |
US $3.64 |
||
|
9645100600
|
9645100600
96451-00600 Fitting, Grease Small(For Tail Gate Lock Link) |
96451-00600 |
from US $1.44 |
||
|
9645600609
|
9645600609
96456-00609 FITTING GREASE |
96456-00609 |
US $4.30 |
||
