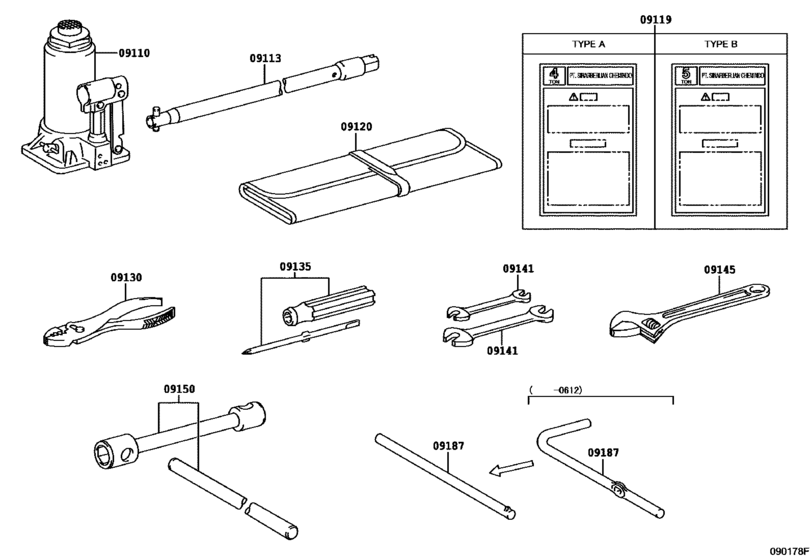

Standard Tool ([09.2002 - 05.2010] (0209-1005)DCRTH,DCRTJ,DSL..IDN) Diagram Toyota DYNA/ TOYOACE
- Year
- 2006 - 2010
- Sales region
- General
- Frame
- WU342
- ENGINE
- W04D
- DESTINATION
- IDN
- DECK
- T3
- From
- 12.2006
- To
- 05.2010
- Loading Capacity
- 65T
- Driver's Position
- RHD
- Fuel Induction
- DCRTH
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
09110
|
09110
09111-0W060
Jack Assy
[12.2006 - 05.2010] WU342..(DCRTH,DCRTJ)..IDN |
09111-0W060 |
— | ||
|
09113
|
09113
09113-0W020
Handle, Jack
[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
09113-0W020 |
— | ||
|
09119
|
09119
09119-0W070
Label, Jack Caution
[12.2006 - 05.2010] WU342..(DCRTH,DCRTJ)..IDN TYPE B:REFER TO ILLUSTRATION |
09119-0W070 |
— | ||
|
09120
|
09120
09120-0W010
Bag, Tool
[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
09120-0W010 |
— | ||
|
09130
|
09130
90080-99027
Pliers
[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
90080-99027 |
— | ||
|
09135
|
09135
90080-99024
Driver, Screw
[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
90080-99024 |
— | ||
|
09141
|
09141
90080-99025
Spanner
[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN 14 X 17 |
90080-99025 |
— | ||
|
09141
|
09141
90080-99026
Spanner
[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN 10 X 12 |
90080-99026 |
— | ||
|
09150
|
09150
09150-0W020
Wrench, Hub Nut Box
[12.2006 - 05.2010] WU342..(DCRTH,DCRTJ)..IDN |
09150-0W020 |
— | ||
|
09187
|
09187
09187-0W020
Handle, Spare Wheel Carrier
[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
09187-0W020 |
— |
