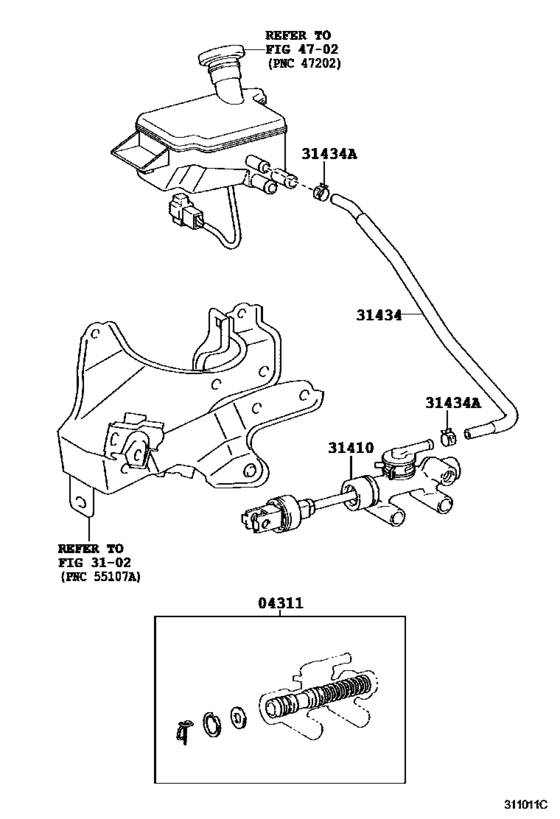

Clutch Master Cylinder ([09.2002 - ] (0209- )IDN) Diagram Toyota DYNA/ TOYOACE
- Year
- 2006 - 2010
- Sales region
- General
- Frame
- WU342
- ENGINE
- W04D
- DESTINATION
- IDN
- DECK
- T3
- From
- 12.2006
- To
- 05.2010
- Loading Capacity
- 65T
- Driver's Position
- RHD
- Fuel Induction
- DCRTJ
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04311
|
04311
04311-26050 Cylinder Kit, Clutch Master[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
04311-26050 |
from US $23.91 |
||
|
31410
|
31410
31420-25040 Cylinder Assy, Clutch Master[12.2006 - 03.2008] WU302,342..IDN |
31420-25040 |
from US $93.66 |
||
|
31410
|
31410
31420-37141
Cylinder Assy, Clutch Master
[04.2008 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
31420-37141 |
— | ||
| replacement | |||||
|
31410
|
31410
31420-37142 Cylinder Assy, Master W/o Reservoir[04.2008 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
31420-37142 |
from US $103.27 |
||
|
31434
|
31434
31434-0W010
Tube, Clutch Reservoir
[12.2007 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
31434-0W010 |
— | ||
| replacement | |||||
|
31434
|
31434
31434-37180 Tube, Clutch ReservoirCLUTCH RESERVOIR [12.2007 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
31434-37180 |
US $27.23 |
||
|
31434
|
31434
31434-37180 Tube, Clutch ReservoirCLUTCH RESERVOIR [10.2006 - 12.2007] WU342..DCRTJ..IDN |
31434-37180 |
US $27.23 |
||
|
31434A
|
31434A
96133-41300 Clip(For Air Hose No.6)[10.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
96133-41300 |
US $1.61 |
||
