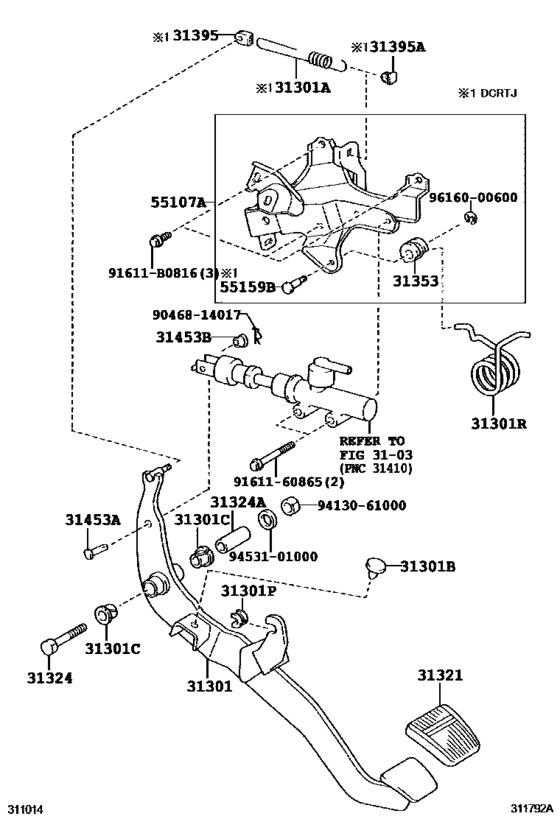

Clutch Pedal & Flexible Hose ([12.2006 - ] (0612- )DCRTJ,DCRTP,DCRTR..IDN) Diagram Toyota DYNA/ TOYOACE
- Year
- 2006 - 2010
- Sales region
- General
- Frame
- WU342
- ENGINE
- W04D
- DESTINATION
- IDN
- DECK
- T3
- From
- 12.2006
- To
- 05.2010
- Loading Capacity
- 65T
- Driver's Position
- RHD
- Fuel Induction
- DCRTJ
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31301
|
31301
31301-0W010
Pedal Sub-Assy, Clutch
[12.2006 - 05.2010] WU342..DCRTJ..IDN |
31301-0W010 |
— | ||
|
31301A
|
31301A
90507-18032 Spring(For Clutch Pedal)[10.2006 - 05.2010] WU342..DCRTJ..IDN |
90507-18032 |
US $2.44 |
||
|
31301B
|
31301B
90541-06036 Cushion, No.1(For Clutch Pedal)[10.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
90541-06036 |
from US $0.90 |
||
| replacement | |||||
|
31301B
|
31301B
90541060361
CUSHION
[10.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
90541060361 |
— | ||
|
31301C
|
31301C
90386-13007 Bush(For Clutch Pedal)[10.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
90386-13007 |
from US $2.48 |
||
|
31301P
|
31301P
90389-06055 Bush(For Clutch Pedal Turnover)[10.2006 - 05.2010] WU342..DCRTJ..IDN |
90389-06055 |
from US $1.79 |
||
|
31301R
|
31301R
90949-T3005
Spring, Compression(For Turn Over Spring Seat)
[12.2007 - 05.2010] WU342..DCRTJ..IDN |
90949-T3005 |
— | ||
|
31301R
|
31301R
90959-03331
Spring, Compression(For Turn Over Spring Seat)
[10.2006 - 12.2007] WU342..DCRTJ..IDN |
90959-03331 |
— | ||
|
31321
|
31321
31321-0B010 Pad, Clutch Pedal[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
31321-0B010 |
US $0.49 |
||
|
31324
|
31324
91112-61070 Shaft, Clutch Pedal[10.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
91112-61070 |
US $4.66 |
||
|
31324A
|
31324A
90387-10004 Collar, Clutch Pedal Shaft[10.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
90387-10004 |
from US $3.76 |
||
|
31353
|
31353
31353-35010 Holder, Clutch Pedal Spring[10.2006 - 05.2010] WU342..DCRTJ..IDN |
31353-35010 |
from US $7.02 |
||
|
31395
|
31395
31395-33010 Hook, Pedal Spring[10.2006 - 05.2010] WU342..DCRTJ..IDN |
31395-33010 |
US $1.51 |
||
|
31395A
|
31395A
31395-33020 Hook, Pedal Spring[10.2006 - 05.2010] WU342..DCRTJ..IDN |
31395-33020 |
US $1.10 |
||
|
31453A
|
31453A
90240-08006 Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis)[10.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN L=23.5 |
90240-08006 |
from US $1.68 |
||
|
31453B
|
31453B
90386-08002 Bush(For Clutch Pedal Over Center Spring Pin)[10.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
90386-08002 |
from US $3.22 |
||
|
55107A
|
55107A
55107-0W020
Support Sub-Assy, Clutch Pedal
[12.2006 - 05.2010] WU342..DCRTJ..IDN |
55107-0W020 |
— | ||
|
55159B
|
55159B
55159-37060 Pin, Clutch Pedal Turn Over SpringCLUTCH PEDAL TURN OVER SPRING [10.2006 - 05.2010] WU342..DCRTJ..IDN |
55159-37060 |
US $3.79 |
||
|
91611B0816
|
91611B0816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9046814017
|
9046814017
90468-14017 Clip, No.2(For Parking Brake) |
90468-14017 |
from US $0.82 |
||
|
9161160865
|
9161160865
91611-60865 Bolt(For Rocker Support Set) |
91611-60865 |
US $2.15 |
||
|
9413061000
|
9413061000
94130-61000 Nut(For Clutch Pedal Stopper) |
94130-61000 |
from US $0.76 |
||
|
9453101000
|
9453101000
94531-01000 WASHER |
94531-01000 |
from US $1.61 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.84 |
||
