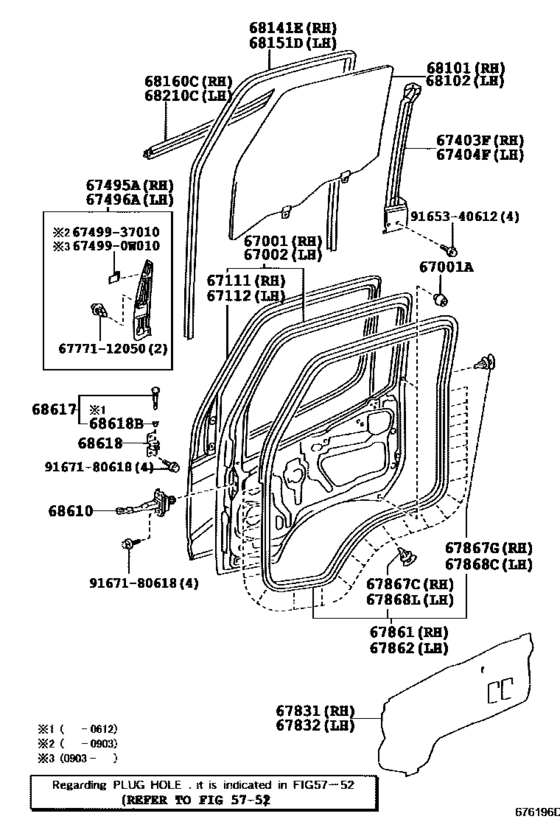

Front Door Panel & Glass ([09.2002 - ] DOOR PANEL (0209- )DCRTH,DCRTJ,DSL..IDN) Diagram Toyota DYNA/ TOYOACE
- Year
- 2006 - 2010
- Sales region
- General
- Frame
- WU342
- ENGINE
- W04D
- DESTINATION
- IDN
- DECK
- T3
- From
- 12.2006
- To
- 05.2010
- Loading Capacity
- 65T
- Driver's Position
- RHD
- Fuel Induction
- DCRTJ
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67001
|
67001
67001-37170
Panel Sub-Assy, Front Door, Rh
[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
67001-37170 |
— | ||
|
67001A
|
67001A
90541-09031 Cushion, Front Door Panel[10.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
90541-09031 |
US $3.58 |
||
|
67002
|
67002
67002-37180
Panel Sub-Assy, Front Door, Lh
[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
67002-37180 |
— | ||
|
67111
|
67111
67111-37150
Panel, Front Door, Outer Rh
[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
67111-37150 |
— | ||
|
67112
|
67112
67112-37170
Panel, Front Door, Outer Lh
[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
67112-37170 |
— | ||
|
67403F
|
67403F
67403-0W020
Frame Sub-Assy, Front Door, Rear Lower Rh
[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
67403-0W020 |
— | ||
|
67404F
|
67404F
67404-0W020
Frame Sub-Assy, Front Door, Rear Lower Lh
[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
67404-0W020 |
— | ||
|
67495A
|
67495A
67495-0W010
Cover, Front Door Front Lower Frame, Upper Rh
[12.2006 - 02.2009] WU302,342..IDN |
67495-0W010 |
— | ||
| replacement | |||||
|
67495A
|
67495A
67495-0W020
Cover, Front Door Front Lower Frame, Upper Rh
[12.2006 - 02.2009] WU302,342..IDN |
67495-0W020 |
— | ||
|
67495A
|
67495A
67495-0W020
Cover, Front Door Front Lower Frame, Upper Rh
[03.2009 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
67495-0W020 |
— | ||
|
67496A
|
67496A
67496-0W010
Cover, Front Door Front Lower Frame, Upper Lh
[12.2006 - 02.2009] WU302,342..IDN |
67496-0W010 |
— | ||
| replacement | |||||
|
67496A
|
67496A
67496-0W020
Cover, Front Door Front Lower Frame, Upper Lh
[12.2006 - 02.2009] WU302,342..IDN |
67496-0W020 |
— | ||
|
67496A
|
67496A
67496-0W020
Cover, Front Door Front Lower Frame, Upper Lh
[03.2009 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
67496-0W020 |
— | ||
|
67831
|
67831
67831-0W020
Cover, Front Door Service Hole, Rh
[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
67831-0W020 |
— | ||
|
67832
|
67832
67832-0W010
Cover, Front Door Service Hole, Lh
[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
67832-0W010 |
— | ||
|
67861
|
67861
67861-0W020
Weatherstrip, Front Door, Rh
[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
67861-0W020 |
— | ||
|
67862
|
67862
67862-0W020
Weatherstrip, Front Door, Lh
[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
67862-0W020 |
— | ||
|
67867C
|
67867C
67868-0B010
Clip, Door Weatherstrip(For Front Door)
[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
67868-0B010 |
— | ||
|
67867G
|
67867G
67867-0B010
Clip, Door Weatherstrip(For Front Door)
[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
67867-0B010 |
— | ||
|
67868C
|
67868C
67868-0B010
Clip, Door Weatherstrip(For Front Door)
[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
67868-0B010 |
— | ||
|
67868L
|
67868L
67867-0B010
Clip, Door Weatherstrip(For Front Door)
[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
67867-0B010 |
— | ||
|
68101
|
68101
68101-0W020
Glass Sub-Assy, Front Door, Rh
[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN *TEM,T=3.5,GREEN |
68101-0W020 |
— | ||
|
68102
|
68102
68102-0W020
Glass Sub-Assy, Front Door, Lh
[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN *TEM,T=3.5,GREEN |
68102-0W020 |
— | ||
|
68141E
|
68141E
68141-0W010
Run, Front Door Glass, Rh
[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
68141-0W010 |
— | ||
|
68151D
|
68151D
68151-0W010
Run, Front Door Glass, Lh
[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
68151-0W010 |
— | ||
|
68160C
|
68160C
68161-0W010
Weatherstrip Assy, Front Door Glass, Outer Rh
[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
68161-0W010 |
— | ||
|
68210C
|
68210C
68162-0W010
Weatherstrip Assy, Front Door Glass, Outer Lh
[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
68162-0W010 |
— | ||
|
68610
|
68610
68610-0W010
Check Assy, Front Door
[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
68610-0W010 |
— | ||
|
68617
|
68617
68617-90K00 Pin(For Front Door Check)[10.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
68617-90K00 |
from US $2.89 |
||
|
68618
|
68618
68618-37020 Bracket, Front Door Check Arm, Rh[10.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
68618-37020 |
US $6.63 |
||
|
674990W010
|
674990W010
67499-0W010
Retainer, Front Door Lower Frame Bracket Garnish
|
67499-0W010 |
— | ||
|
6749937010
|
6749937010
67499-37010 Retainer, Front Door Lower Frame Bracket Garnish, No.2 |
67499-37010 |
US $1.25 |
||
|
6777112050
|
6777112050
67771-12050 Clip, Radiator Grille |
67771-12050 |
from US $0.60 |
||
|
9165340612
|
9165340612
91653-40612 BOLT WWASHER |
91653-40612 |
US $1.08 |
||
|
9167180618
|
9167180618
91671-80618 BOLT FLANGE WWSHER |
91671-80618 |
US $1.08 |
||
