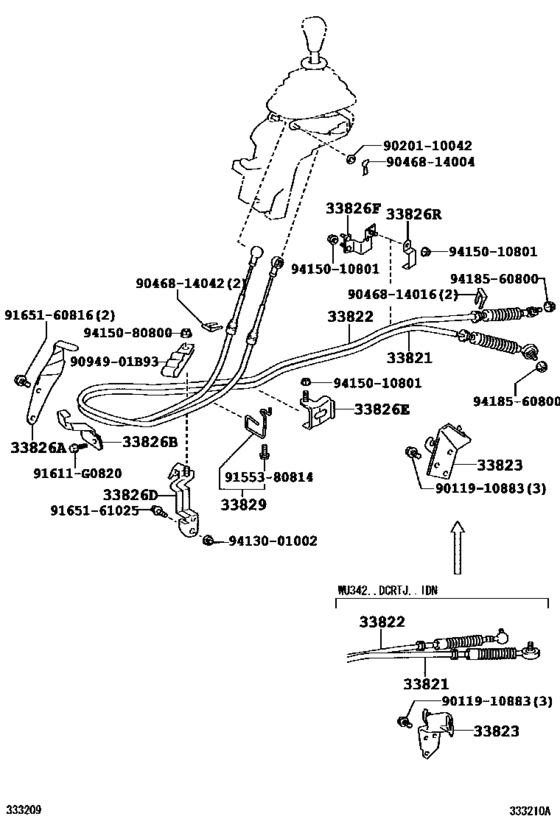

Shift Lever & Retainer ([12.2006 - ] (0612- )DCRTH,DCRTJ..IDN) Diagram Toyota DYNA/ TOYOACE
- Year
- 2006 - 2010
- Sales region
- General
- Frame
- WU342
- ENGINE
- W04D
- DESTINATION
- IDN
- DECK
- T3
- From
- 12.2006
- To
- 05.2010
- Loading Capacity
- 65T
- Driver's Position
- RHD
- Fuel Induction
- DCRTJ
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33821
|
33821
33820-0W120
Cable Transmission Control Shift (For Floor Shift)
[12.2006 - 05.2010] WU342..DCRTJ..IDN |
33820-0W120 |
— | ||
|
33822
|
33822
33830-0W020
Cable Transmission Control Select (For Floor Shift)
[12.2006 - 05.2010] WU342..DCRTJ..IDN |
33830-0W020 |
— | ||
|
33823
|
33823
33823-0W060
Bracket, Transmission Control Cable, No.1
[12.2006 - 05.2010] WU342..DCRTJ..IDN |
33823-0W060 |
— | ||
|
33826A
|
33826A
33826-0W020
Bracket, Transmission Control Cable, No.2
[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
33826-0W020 |
— | ||
|
33826B
|
33826B
33826-37210 Bracket, Transmission Control Cable, No.3[10.2006 - 05.2010] WU342..(DCRTH,DCRTJ)..IDN |
33826-37210 |
US $10.92 |
||
|
33826D
|
33826D
33826-37270 Bracket, Transmission Control Cable, No.5[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
33826-37270 |
US $16.16 |
||
|
33826E
|
33826E
33826-37251 Bracket, Transmission Control Cable, No.6[10.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
33826-37251 |
US $9.32 |
||
|
33826F
|
33826F
33827-0W020
Bracket, Transmission Control Cable, No.7
[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
33827-0W020 |
— | ||
|
33826R
|
33826R
33826-0W080
Bracket, Transmission Control Cable, No.8
[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
33826-0W080 |
— | ||
|
33829
|
33829
33829-0W010
Support, Transmission Control Cable
[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
33829-0W010 |
— | ||
|
91611G0820
|
91611G0820
91611-G0820 Bolt |
91611-G0820 |
from US $1.21 |
||
|
9094901B93
|
9094901B93
90949-01B93 New Genuine Part |
90949-01B93 |
US $4.66 |
||
|
9011910883
|
9011910883
90119-10883 New Genuine Part |
90119-10883 |
US $1.43 |
||
|
9020110042
|
9020110042
90201-10042 Washer, Plate (For Transfer Control Cable) |
90201-10042 |
US $1.61 |
||
|
9046814004
|
9046814004
90468-14004 Union, Auxiliary Fuel Band |
90468-14004 |
from US $0.66 |
||
|
9046814016
|
9046814016
90468-14016 CLIP |
90468-14016 |
from US $1.17 |
||
|
9046814042
|
9046814042
90468-14042 New Genuine Part |
90468-14042 |
US $2.15 |
||
|
9155380814
|
9155380814
91553-80814 BOLT FLANGE |
91553-80814 |
US $1.43 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.01 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 BOLT |
90080-11396 |
US $3.32 |
||
|
9165161025
|
9165161025
91651-61025 Bolt with washer |
91651-61025 |
from US $1.52 |
||
|
9413001002
|
9413001002
94130-01002 Nut, Booster Sleeve Cylinder |
94130-01002 |
from US $0.94 |
||
|
9415010801
|
9415010801
94150-10801 New Genuine Part |
94150-10801 |
US $1.79 |
||
|
9415080800
|
9415080800
94150-80800 NUT, FLANGE |
94150-80800 |
from US $0.78 |
||
|
9418560800
|
9418560800
94185-60800 NUT |
94185-60800 |
from US $0.82 |
||
