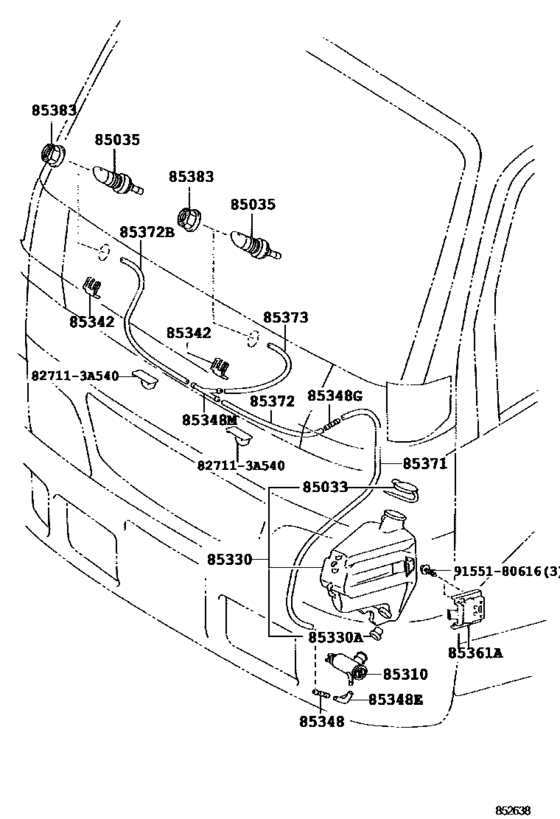

Windshield Washer ([09.2002 - ] (0209- )IDN) Diagram Toyota DYNA/ TOYOACE
- Year
- 2006 - 2010
- Sales region
- General
- Frame
- WU342
- ENGINE
- W04D
- DESTINATION
- IDN
- DECK
- T3
- From
- 12.2006
- To
- 05.2010
- Loading Capacity
- 65T
- Driver's Position
- RHD
- Fuel Induction
- DCRTJ
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85033
|
85033
85033-36120 Cap Assy, Windshield Washer[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
85033-36120 |
US $0.55 |
||
|
85035
|
85035
85381-37030 Nozzle Sub-Assy, Washer[10.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
85381-37030 |
from US $20.92 |
||
|
85310
|
85310
85310-90B00 Motor And Pump Assy, Windshield Washer[10.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
85310-90B00 |
US $47.52 |
||
|
85330
|
85330
85315-25040 Jar Assy, Windshield WasherWINDSHIELD WASHER [12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
85315-25040 |
US $47.03 |
||
|
85330A
|
85330A
90099-32089 Bush, Headlamp Cleaner Washer Jar[10.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
90099-32089 |
from US $0.98 |
||
| replacements | |||||
|
85330A
|
85330A
90099320891
Grommet
[10.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
90099320891 |
— | ||
|
85330A
|
85330A
90068-32002 Bush, Windshield Washer Jar[10.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
90068-32002 |
US $7.46 |
||
|
85342
|
85342
85342-95J01 Holder, Washer Nozzle[10.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
85342-95J01 |
US $7.88 |
||
|
85348
|
85348
85349-89122 Valve Sub-Assy, Washer[10.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
85349-89122 |
from US $1.25 |
||
|
85348E
|
85348E
85355-14481 Joint, Windshield Washer Elbow, No.1[10.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
85355-14481 |
US $0.98 |
||
|
85348G
|
85348G
85376-46040
Valve Sub-Assy, Washer
[10.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
85376-46040 |
— | ||
|
85348M
|
85348M
85348-12250 Joint, Windshield Washer Hose, No.1[10.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
85348-12250 |
from US $0.55 |
||
|
85361A
|
85361A
85361-0W010
Bracket, Windshield Washer, No.1
[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
85361-0W010 |
— | ||
| replacement | |||||
|
85361A
|
85361A
85361-0W011
Bracket, Windshield Washer, No.1
[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
85361-0W011 |
— | ||
|
85371
|
85371
90099-33299 Joint, Windshield Washer Elbow, No.2[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN *H,L=920 |
90099-33299 |
from US $4.37 |
||
|
85372
|
85372
90446-06013 Hose, Windshield Washer (From Motor To Joint)[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN L=450 |
90446-06013 |
from US $0.70 |
||
|
85372B
|
85372B
90099-59303
Hose, Windshield Washer (From Joint To Joint), No.2
[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN L=600 |
90099-59303 |
— | ||
|
85373
|
85373
90099-59304
Hose, Windshield Washer (From Joint To Nozzle)
[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN L=190 |
90099-59304 |
— | ||
|
85383
|
85383
85383-0W010
Holder, Front Washer Nozzle
[12.2006 - 05.2010] WU302,342..(DCRTH,DCRTJ)..IDN |
85383-0W010 |
— | ||
|
827113A540
|
827113A540
82711-3A540 Clamp, Sliding Roof Drain Hose |
82711-3A540 |
from US $0.98 |
||
|
9155180616
|
9155180616
91551-80616 BOLT FLANGE |
91551-80616 |
from US $0.64 |
||
