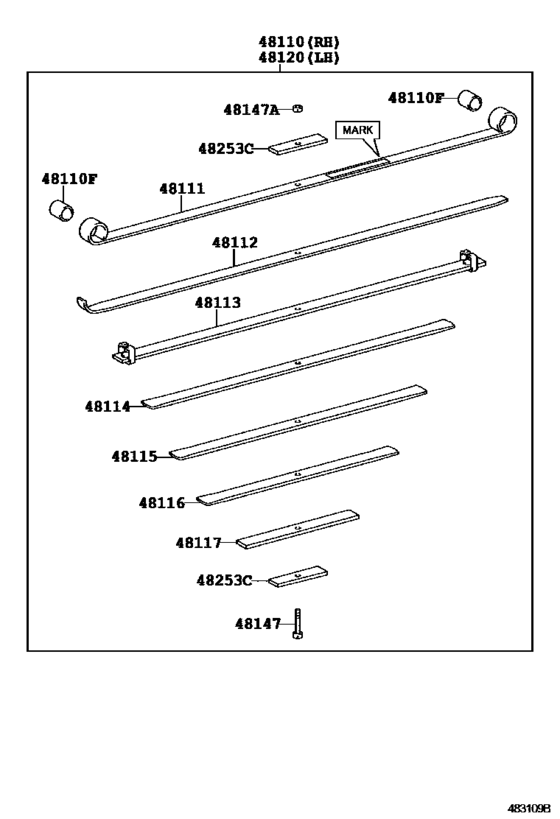

Front Spring & Shock Absorber ([12.2006 - ] 7-LEAF (0612- )75T..DCRTJ ; (0912- )85T) Diagram Toyota DYNA/ TOYOACE
- Year
- 2006 - 2010
- Sales region
- General
- Frame
- WU342
- ENGINE
- W04D
- DESTINATION
- IDN
- DECK
- T3
- From
- 12.2006
- To
- 05.2010
- Loading Capacity
- 75T
- Driver's Position
- RHD
- Fuel Induction
- DCRTJ
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48110
|
48110
48110-0W010
Spring Assy, Front, Rh
[12.2006 - 05.2010] WU342..75T..DCRTJ 7-LEAF |
48110-0W010 |
— | ||
|
48110F
|
48110F
90384-28009 Bush(For Rear Spring Leaf)[12.2006 - 05.2010] WU342..75T..DCRTJ |
90384-28009 |
US $32.18 |
||
|
48111
|
48111
48101-0W010
Leaf, Front Spring, No.1
[12.2006 - 05.2010] WU342..75T..DCRTJ *DRS,MARK48110-0W010 |
48101-0W010 |
— | ||
|
48111
|
48111
48101-0W020
Leaf, Front Spring, No.1
[12.2006 - 05.2010] WU342..75T..DCRTJ *PAS,MARK48110-0W020 |
48101-0W020 |
— | ||
|
48111
|
48111
48101-0W130
Leaf, Front Spring, No.1
[12.2006 - 05.2010] WU342..75T..DCRTJ *DRS,MARK48110-0W130 |
48101-0W130 |
— | ||
|
48111
|
48111
48101-0W140
Leaf, Front Spring, No.1
[12.2006 - 05.2010] WU342..75T..DCRTJ *PAS,MARK48110-0W140 |
48101-0W140 |
— | ||
|
48112
|
48112
48112-0W010
Leaf, Front Spring, No.2
[12.2006 - 05.2010] WU342..75T..DCRTJ *DRS,MARK48110-0W010 |
48112-0W010 |
— | ||
|
48112
|
48112
48112-0W020
Leaf, Front Spring, No.2
[12.2006 - 05.2010] WU342..75T..DCRTJ *PAS,MARK48110-0W020 |
48112-0W020 |
— | ||
|
48112
|
48112
48112-0W130
Leaf, Front Spring, No.2
[12.2006 - 05.2010] WU342..75T..DCRTJ *DRS,MARK48110-0W130 |
48112-0W130 |
— | ||
|
48112
|
48112
48112-0W140
Leaf, Front Spring, No.2
[12.2006 - 05.2010] WU342..75T..DCRTJ *PAS,MARK48110-0W140 |
48112-0W140 |
— | ||
|
48113
|
48113
48102-0W010
Leaf, Front Spring, No.3
[12.2006 - 05.2010] WU342..75T..DCRTJ *DRS,MARK48110-0W010 |
48102-0W010 |
— | ||
|
48113
|
48113
48102-0W020
Leaf, Front Spring, No.3
[12.2006 - 05.2010] WU342..75T..DCRTJ *PAS,MARK48110-0W020 |
48102-0W020 |
— | ||
|
48113
|
48113
48113-0W130
Leaf, Front Spring, No.3
[12.2006 - 05.2010] WU342..75T..DCRTJ *DRS,MARK48110-0W130 |
48113-0W130 |
— | ||
|
48113
|
48113
48113-0W140
Leaf, Front Spring, No.3
[12.2006 - 05.2010] WU342..75T..DCRTJ *PAS,MARK48110-0W140 |
48113-0W140 |
— | ||
|
48114
|
48114
48114-0W010
Leaf, Front Spring, No.4
[12.2006 - 05.2010] WU342..75T..DCRTJ *DRS,MARK48110-0W010 |
48114-0W010 |
— | ||
|
48114
|
48114
48114-0W020
Leaf, Front Spring, No.4
[12.2006 - 05.2010] WU342..75T..DCRTJ *PAS,MARK48110-0W020 |
48114-0W020 |
— | ||
|
48114
|
48114
48114-0W130
Leaf, Front Spring, No.4
[12.2006 - 05.2010] WU342..75T..DCRTJ *DRS,MARK48110-0W130 |
48114-0W130 |
— | ||
|
48114
|
48114
48114-0W140
Leaf, Front Spring, No.4
[12.2006 - 05.2010] WU342..75T..DCRTJ *PAS,MARK48110-0W140 |
48114-0W140 |
— | ||
|
48115
|
48115
48115-0W010
Leaf, Front Spring, No.5
[12.2006 - 05.2010] WU342..75T..DCRTJ *DRS,MARK48110-0W010 |
48115-0W010 |
— | ||
|
48115
|
48115
48115-0W020
Leaf, Front Spring, No.5
[12.2006 - 05.2010] WU342..75T..DCRTJ *PAS,MARK48110-0W020 |
48115-0W020 |
— | ||
|
48115
|
48115
48115-0W130
Leaf, Front Spring, No.5
[12.2006 - 05.2010] WU342..75T..DCRTJ *DRS,MARK48110-0W130 |
48115-0W130 |
— | ||
|
48115
|
48115
48115-0W140
Leaf, Front Spring, No.5
[12.2006 - 05.2010] WU342..75T..DCRTJ *PAS,MARK48110-0W140 |
48115-0W140 |
— | ||
|
48116
|
48116
48116-0W010
Leaf, Front Spring, No.6
[12.2006 - 05.2010] WU342..75T..DCRTJ *DRS,MARK48110-0W010 |
48116-0W010 |
— | ||
|
48116
|
48116
48116-0W020
Leaf, Front Spring, No.6
[12.2006 - 05.2010] WU342..75T..DCRTJ *PAS,MARK48110-0W020 |
48116-0W020 |
— | ||
|
48116
|
48116
48116-0W130
Leaf, Front Spring, No.6
[12.2006 - 05.2010] WU342..75T..DCRTJ *DRS,MARK48110-0W130 |
48116-0W130 |
— | ||
|
48116
|
48116
48116-0W140
Leaf, Front Spring, No.6
[12.2006 - 05.2010] WU342..75T..DCRTJ *PAS,MARK48110-0W140 |
48116-0W140 |
— | ||
|
48117
|
48117
48117-0W010
Leaf, Front Spring, No.7
[12.2006 - 05.2010] WU342..75T..DCRTJ *DRS,MARK48110-0W010 |
48117-0W010 |
— | ||
|
48117
|
48117
48117-0W020
Leaf, Front Spring, No.7
[12.2006 - 05.2010] WU342..75T..DCRTJ *PAS,MARK48110-0W020 |
48117-0W020 |
— | ||
|
48117
|
48117
48117-0W130
Leaf, Front Spring, No.7
[12.2006 - 05.2010] WU342..75T..DCRTJ *DRS,MARK48110-0W130 |
48117-0W130 |
— | ||
|
48117
|
48117
48117-0W140
Leaf, Front Spring, No.7
[12.2006 - 05.2010] WU342..75T..DCRTJ *PAS,MARK48110-0W140 |
48117-0W140 |
— | ||
|
48120
|
48120
48110-0W020
Spring Assy, Front, Lh
[12.2006 - 05.2010] WU342..75T..DCRTJ 7-LEAF |
48110-0W020 |
— | ||
|
48147
|
48147
48147-0W230
Bolt, Front Spring, Center
[12.2006 - 05.2010] WU342..75T..DCRTJ *DRS,MARK48110-0W130 |
48147-0W230 |
— | ||
|
48147
|
48147
48147-37B60 Bolt, Front Spring, Center[12.2006 - 05.2010] WU342..75T..DCRTJ *DRS,MARK48110-0W010 |
48147-37B60 |
US $7.13 |
||
|
48147A
|
48147A
48155-0W190
Nut, Front Spring Center Bolt
[12.2006 - 05.2010] WU342..75T..DCRTJ *DRS,MARK48110-0W130 |
48155-0W190 |
— | ||
|
48147A
|
48147A
48284-37130 Nut, Front Spring Center Bolt[12.2006 - 05.2010] WU342..75T..DCRTJ *DRS,MARK48110-0W010 |
48284-37130 |
from US $1.11 |
||
|
48253C
|
48253C
48152-0W190
Seat, Front Spring
[12.2006 - 05.2010] WU342..75T..DCRTJ *DRS,MARK48110-0W130 |
48152-0W190 |
— | ||
|
48253C
|
48253C
48253-3B770 Leaf, Front Spring, No.6[12.2006 - 05.2010] WU342..75T..DCRTJ *PAS,MARK48110-0W020 |
48253-3B770 |
US $9.17 |
