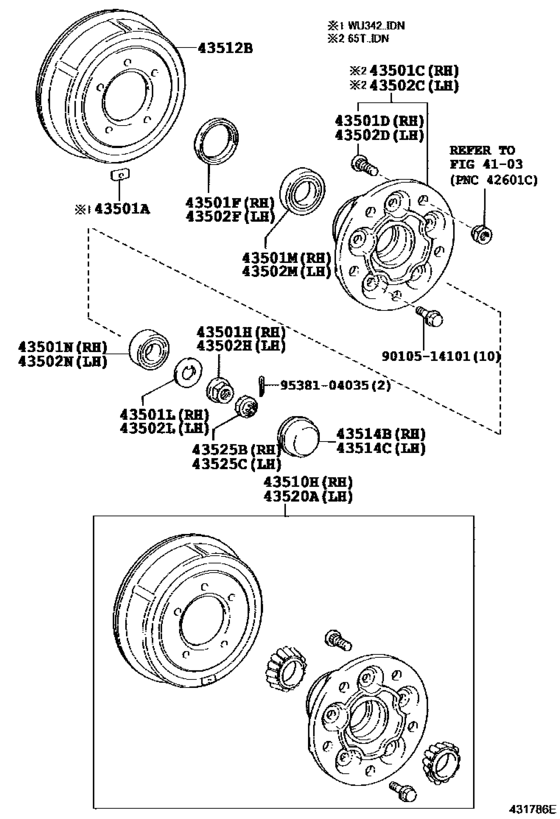

Front Axle Hub ([12.2006 - ] (0612- )65T..DCRTJ ; (0612- )75T..DCRTP,DC RTR) Diagram Toyota DYNA/ TOYOACE
- Year
- 2009 - 2018
- Sales region
- General
- Frame
- WU342
- ENGINE
- W04D
- DESTINATION
- IDN
- DECK
- T3
- From
- 12.2009
- Loading Capacity
- 75T
- Driver's Position
- RHD
- Fuel Induction
- DCRTP
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43501D
|
43501D
90942-02071 Bolt, Hub (For Rear Axle Rh)[12.2009 - 02.2017] WU342..(75T,85T)..(DCRTP,DCRTR) |
90942-02071 |
from US $7.23 |
||
|
43501D
|
43501D
90942-T2004
Bolt, Hub (For Rear Axle Rh)
[03.2017 -] WU342..(75T,85T)..(DCRTP,DCRTR) |
90942-T2004 |
— | ||
|
43501F
|
43501F
90311-68003 Seal, Oil (For Front Axle Hub Rh)[12.2009 -] WU342..(75T,85T)..(DCRTP,DCRTR) |
90311-68003 |
from US $13.44 |
||
|
43501H
|
43501H
90178-28001 Nut (For Front Axle Shaft Rh)[12.2009 -] WU342..(75T,85T)..(DCRTP,DCRTR) |
90178-28001 |
from US $2.32 |
||
|
43501L
|
43501L
90214-29001 Washer, Claw (For Front Axle Hub Rh)[12.2009 -] WU342..(75T,85T)..(DCRTP,DCRTR) |
90214-29001 |
from US $3.47 |
||
|
43501M
|
43501M
90366-50069 Bearing (For Front Axle Hub Inner Rh)[12.2009 -] WU342..(75T,85T)..(DCRTP,DCRTR) |
90366-50069 |
from US $58.80 |
||
|
43501N
|
43501N
90366-35105 Bearing (For Front Axle Hub Outer Rh)[12.2009 -] WU342..(75T,85T)..(DCRTP,DCRTR) |
90366-35105 |
from US $45.20 |
||
|
43502D
|
43502D
90942-02072 Bolt, Hub (For Rear Axle Lh)[12.2009 - 02.2017] WU342..(75T,85T)..(DCRTP,DCRTR) |
90942-02072 |
from US $7.31 |
||
|
43502D
|
43502D
90942-T2005
Bolt, Hub (For Rear Axle Lh)
[03.2017 -] WU342..(75T,85T)..(DCRTP,DCRTR) |
90942-T2005 |
— | ||
|
43502F
|
43502F
90311-68003 Seal, Oil (For Front Axle Hub Rh)[12.2009 -] WU342..(75T,85T)..(DCRTP,DCRTR) |
90311-68003 |
from US $13.44 |
||
|
43502H
|
43502H
90178-28001 Nut (For Front Axle Shaft Rh)[12.2009 -] WU342..(75T,85T)..(DCRTP,DCRTR) |
90178-28001 |
from US $2.32 |
||
|
43502L
|
43502L
90214-29001 Washer, Claw (For Front Axle Hub Rh)[12.2009 -] WU342..(75T,85T)..(DCRTP,DCRTR) |
90214-29001 |
from US $3.47 |
||
|
43502M
|
43502M
90366-50069 Bearing (For Front Axle Hub Inner Rh)[12.2009 -] WU342..(75T,85T)..(DCRTP,DCRTR) |
90366-50069 |
from US $58.80 |
||
|
43502N
|
43502N
90366-35105 Bearing (For Front Axle Hub Outer Rh)[12.2009 -] WU342..(75T,85T)..(DCRTP,DCRTR) |
90366-35105 |
from US $45.20 |
||
|
43510H
|
43510H
43510-09020
Hub & Disc(Drum) Assy, Front Axle, Rh
[12.2009 - 03.2017] WU342..75T..(DCRTP,DCRTR) |
43510-09020 |
— | ||
| replacement | |||||
|
43510H
|
43510H
43510-09021
Hub & Disc(Drum) Assy, Front Axle, Rh
[12.2009 - 03.2017] WU342..75T..(DCRTP,DCRTR) |
43510-09021 |
— | ||
|
43510H
|
43510H
43510-09021
Hub & Disc(Drum) Assy, Front Axle, Rh
[03.2017 -] WU342..75T..(DCRTP,DCRTR) |
43510-09021 |
— | ||
|
43512B
|
43512B
43512-0W040
Drum, Brake
[12.2009 -] WU342..75T..(DCRTP,DCRTR) |
43512-0W040 |
— | ||
|
43514B
|
43514B
43514-37030 Cap, Front Axle Hub Grease, Rh[12.2009 -] WU342..(75T,85T)..(DCRTP,DCRTR) |
43514-37030 |
from US $10.78 |
||
|
43514C
|
43514C
43514-37030 Cap, Front Axle Hub Grease, Rh[12.2009 -] WU342..(75T,85T)..(DCRTP,DCRTR) |
43514-37030 |
from US $10.78 |
||
|
43520A
|
43520A
43520-09020
Hub & Disc(Drum) Assy, Front Axle, Lh
[12.2009 - 03.2017] WU342..75T..(DCRTP,DCRTR) |
43520-09020 |
— | ||
| replacement | |||||
|
43520A
|
43520A
43520-09021
Hub & Disc(Drum) Assy, Front Axle, Lh
[12.2009 - 03.2017] WU342..75T..(DCRTP,DCRTR) |
43520-09021 |
— | ||
|
43520A
|
43520A
43520-09021
Hub & Disc(Drum) Assy, Front Axle, Lh
[03.2017 -] WU342..75T..(DCRTP,DCRTR) |
43520-09021 |
— | ||
|
43525B
|
43525B
43525-37010 Cap, Front Wheel Adjusting Lock, Rh[12.2009 -] WU342..(75T,85T)..(DCRTP,DCRTR) |
43525-37010 |
from US $2.96 |
||
|
43525C
|
43525C
43525-37010 Cap, Front Wheel Adjusting Lock, Rh[12.2009 -] WU342..(75T,85T)..(DCRTP,DCRTR) |
43525-37010 |
from US $2.96 |
||
|
9010514101
|
9010514101
90105-14101 BOLT WASHER BASED |
90105-14101 |
from US $1.81 |
||
|
9538104035
|
9538104035
95381-04035 PIN |
95381-04035 |
from US $0.74 |
||
