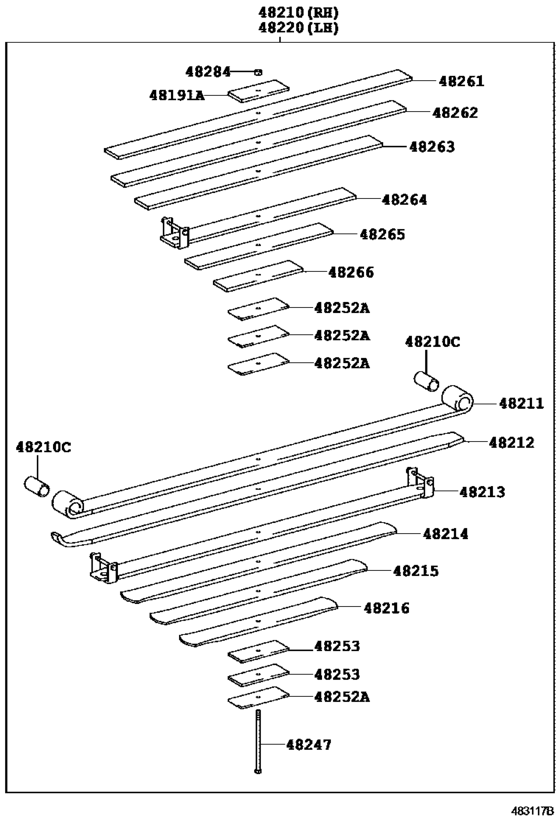

Rear Spring & Shock Absorber ([12.2009 - ] MAIN 6+HELPER 6-LEAF (0912- )75T..DCRTP) Diagram Toyota DYNA/ TOYOACE
- Year
- 2009 - 2018
- Sales region
- General
- Frame
- WU342
- ENGINE
- W04D
- DESTINATION
- IDN
- DECK
- T3
- From
- 12.2009
- Loading Capacity
- 75T
- Driver's Position
- RHD
- Fuel Induction
- DCRTP
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48191A
|
48191A
48192-37070 Wedge, Caster(For Rear Leaf Spring)[12.2009 -] WU342..(65T,75T)..(DCRTP,DCRTR) |
48192-37070 |
US $21.84 |
||
|
48210
|
48210
48210-0W191
Spring Assy, Rear Rh
[12.2009 -] WU342..75T..DCRTP MAIN 6+HELPER 6-LEAF |
48210-0W191 |
— | ||
|
48210C
|
48210C
90384-28009 Bush(For Rear Spring Leaf)[12.2009 -] WU342..85T;WU342..75T..DCRTP |
90384-28009 |
US $32.18 |
||
|
48211
|
48211
48201-0W191
Leaf, Rear Spring, No.1
[12.2009 -] WU342..75T..DCRTP MAIN 6+HELPER 6-LEAF |
48201-0W191 |
— | ||
|
48212
|
48212
48212-0W191
Leaf, Rear Spring, No.2
[12.2009 -] WU342..75T..DCRTP MAIN 6+HELPER 6-LEAF |
48212-0W191 |
— | ||
|
48213
|
48213
48202-0W191
Leaf, Rear Spring, No.3
[12.2009 -] WU342..75T..DCRTP MAIN 6+HELPER 6-LEAF |
48202-0W191 |
— | ||
|
48214
|
48214
48214-0W191
Leaf, Rear Spring, No.4
[12.2009 -] WU342..75T..DCRTP MAIN 6+HELPER 6-LEAF |
48214-0W191 |
— | ||
|
48215
|
48215
48215-0W191
Leaf, Rear Spring, No.5
[12.2009 -] WU342..75T..DCRTP MAIN 6+HELPER 6-LEAF |
48215-0W191 |
— | ||
|
48216
|
48216
48216-0W191
Leaf, Rear Spring, No.6
[12.2009 -] WU342..75T..DCRTP MAIN 6+HELPER 6-LEAF |
48216-0W191 |
— | ||
|
48220
|
48220
48210-0W191
Spring Assy, Rear Rh
[12.2009 -] WU342..75T..DCRTP MAIN 6+HELPER 6-LEAF |
48210-0W191 |
— | ||
|
48247
|
48247
48247-25260
Bolt, Rear Spring, Center
[12.2009 -] WU342..75T..DCRTP MAIN 6+HELPER 6-LEAF |
48247-25260 |
— | ||
|
48252A
|
48252A
48254-0W170
Spacer, Rear Spring, No.2
[12.2009 -] WU342..75T..DCRTP MAIN 6+HELPER 6-LEAF |
48254-0W170 |
— | ||
|
48253
|
48253
48254-0W200
Spacer, Rear Spring, No.1
[12.2009 -] WU342..75T..DCRTP |
48254-0W200 |
— | ||
|
48261
|
48261
48217-0W191
Leaf, Rear Helper Spring, No.1
[12.2009 -] WU342..75T..DCRTP MAIN 6+HELPER 6-LEAF |
48217-0W191 |
— | ||
|
48262
|
48262
48218-0W191
Leaf, Rear Helper Spring, No.2
[12.2009 -] WU342..75T..DCRTP MAIN 6+HELPER 6-LEAF |
48218-0W191 |
— | ||
|
48263
|
48263
48219-0W191
Leaf, Rear Helper Spring, No.3
[12.2009 -] WU342..75T..DCRTP MAIN 6+HELPER 6-LEAF |
48219-0W191 |
— | ||
|
48264
|
48264
48203-0W191
Leaf, Rear Helper Spring, No.4
[12.2009 -] WU342..75T..DCRTP MAIN 6+HELPER 6-LEAF |
48203-0W191 |
— | ||
|
48265
|
48265
48222-0W191
Leaf, Rear Helper Spring, No.5
[12.2009 -] WU342..75T..DCRTP MAIN 6+HELPER 6-LEAF |
48222-0W191 |
— | ||
|
48266
|
48266
48223-0W191
Leaf, Rear Helper Spring, No.6
[12.2009 -] WU342..75T..DCRTP MAIN 6+HELPER 6-LEAF |
48223-0W191 |
— | ||
|
48284
|
48284
48284-37130 Nut, Front Spring Center Bolt[12.2009 -] WU342..85T MARK 48210-0W010; WU342..(65T,75T)..(DCRTP,DCRTR) |
48284-37130 |
from US $1.11 |
