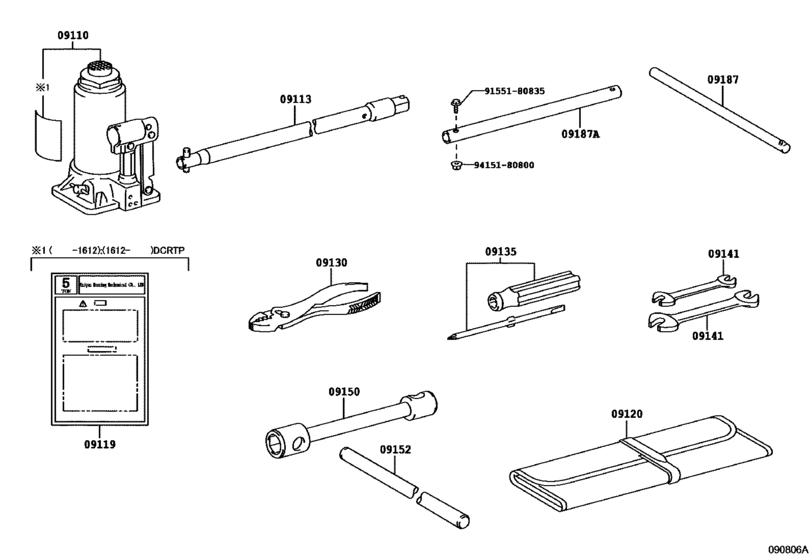

Standard Tool ([12.2009 - ] (0912- )DCRTP,DCRTR) Diagram Toyota DYNA/ TOYOACE
- Year
- 2009 - 2018
- Sales region
- General
- Frame
- WU342
- ENGINE
- W04D
- DESTINATION
- IDN
- DECK
- T3
- From
- 12.2009
- Loading Capacity
- 75T
- Driver's Position
- RHD
- Fuel Induction
- DCRTP
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
09110
|
09110
09111-0W120
Jack Assy
[12.2009 -] WU302,342..DCRTP |
09111-0W120 |
— | ||
|
09113
|
09113
09113-0W030 Handle, JackJACK [12.2009 -] WU302,342..DCRTP,DCRTR |
09113-0W030 |
US $16.49 |
||
|
09119
|
09119
09119-0W120
Label, Jack Caution
[12.2009 -] WU302,342..DCRTP |
09119-0W120 |
— | ||
|
09120
|
09120
09120-0S010
Bag, Tool
[12.2009 -] WU302,342..DCRTP,DCRTR |
09120-0S010 |
— | ||
|
09130
|
09130
09130-36010
Pliers
[12.2009 -] WU302,342..DCRTP,DCRTR |
09130-36010 |
— | ||
|
09135
|
09135
09135-36010
Driver, Screw
[12.2009 -] WU302,342..DCRTP,DCRTR |
09135-36010 |
— | ||
|
09141
|
09141
09141-0W010
Spanner
[12.2009 -] WU302,342..DCRTP,DCRTR 10 X 12 |
09141-0W010 |
— | ||
|
09141
|
09141
09141-0W020
Spanner
[12.2009 -] WU302,342..DCRTP,DCRTR 14 X 17 |
09141-0W020 |
— | ||
|
09150
|
09150
09151-36051
Wrench, Hub Nut Box
[12.2009 -] WU342..DCRTP,DCRTR |
09151-36051 |
— | ||
|
09152
|
09152
09152-36020
Handle, Hub Nut Box Wrench
[12.2009 -] WU342..DCRTP,DCRTR |
09152-36020 |
— | ||
|
09187
|
09187
09187-0W030
Handle, Spare Wheel Carrier
[12.2009 -] WU302,342..DCRTP,DCRTR |
09187-0W030 |
— | ||
|
9155180835
|
9155180835
91551-80835 Bolt (For Front Oil Pump Setting) |
91551-80835 |
from US $0.80 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.80 |
