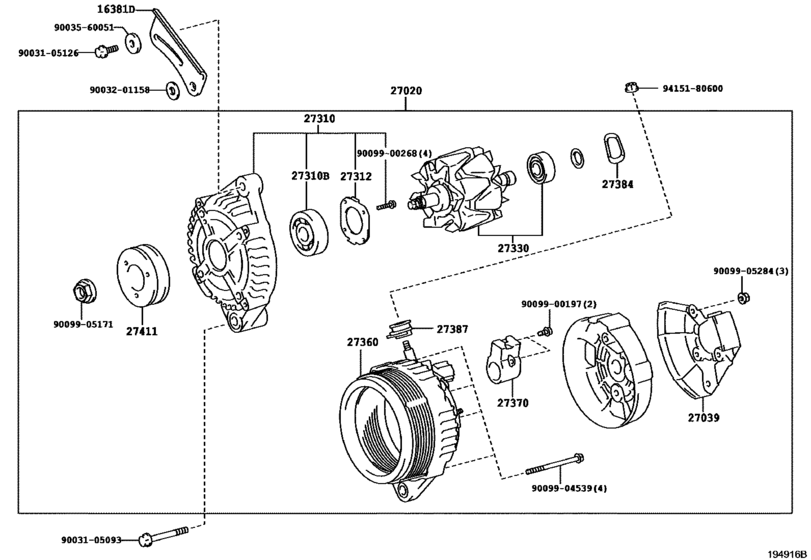

Alternator ([02.2017 - ] 12V 100A (1702- )) Diagram Toyota DYNA/ TOYOACE
- Year
- 2009 - 2018
- Sales region
- General
- Frame
- WU342
- ENGINE
- W04D
- DESTINATION
- IDN
- DECK
- T3
- From
- 12.2009
- Loading Capacity
- 75T
- Driver's Position
- RHD
- Fuel Induction
- DCRTR
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16381D
|
16381D
12514-78230
Bar, Fan Belt Adjusting
[12.2009 - 12.2016] W04D..WU302,342..DCRTP,DCRTR |
12514-78230 |
— | ||
|
16381D
|
16381D
12514-EW031
Bar, Fan Belt Adjusting
[12.2016 -] W04D..WU302,342 |
12514-EW031 |
— | ||
|
27020
|
27020
27060-78160
Alternator Assy
[12.2009 - 01.2017] W04D..WU302,342..DCRTP,DCRTR 12V 100A |
27060-78160 |
— | ||
| replacement | |||||
|
27020
|
27020
27060-E0270 Alternator Assy[12.2009 - 01.2017] W04D..WU302,342..DCRTP,DCRTR 12V 100A |
27060-E0270 |
US $1,241.97 |
||
|
27020
|
27020
27060-78270
Alternator Assy
[02.2017 -] W04D..WU302,342 12V 100A |
27060-78270 |
— | ||
|
27039
|
27039
27039-50430
Cover, Alternator Rear End
[02.2017 -] W04D..WU302,342 |
27039-50430 |
— | ||
|
27310
|
27310
27310-58490
Frame Assy, Drive End, Alternator
[02.2017 -] W04D..WU302,342 |
27310-58490 |
— | ||
|
27310B
|
27310B
90099-10142 Bearing(For Alternator Drive End Frame)[12.2009 - 02.2017] W04D..WU302,342..DCRTP,DCRTR |
90099-10142 |
US $15.60 |
||
|
27310B
|
27310B
90099-10223 Bearing(For Alternator Drive End Frame)[02.2017 -] W04D..WU302,342 |
90099-10223 |
from US $10.31 |
||
|
27312
|
27312
27312-72100
Plate, Bearing Retainer, Alternator
[12.2009 -] W04D..WU302,342 |
27312-72100 |
— | ||
|
27330
|
27330
27330-23130
Rotor Assy, Alternator
[02.2017 -] W04D..WU302,342 |
27330-23130 |
— | ||
|
27360
|
27360
27360-78270
Coil Assy, Alternator
[02.2017 -] W04D..WU302,342 |
27360-78270 |
— | ||
|
27370
|
27370
27370-58460 Holder Assy, Alternator Brush[12.2009 -] W04D..WU302,342 |
27370-58460 |
from US $15 |
||
|
27384
|
27384
27384-50030 Holder, Alternator Brush, A[12.2009 -] W04D..WU302,342 |
27384-50030 |
from US $2.80 |
||
|
27387
|
27387
27387-20130 Insulator, Terminal[12.2009 -] W04D..WU302,342 |
27387-20130 |
from US $4.02 |
||
|
27411
|
27411
27411-58360
Pulley, Alternator
[02.2017 -] W04D..WU302,342 |
27411-58360 |
— | ||
|
27411
|
27411
27411-78160
Pulley, Alternator
[12.2009 - 02.2017] W04D..WU302,342..DCRTP,DCRTR |
27411-78160 |
— | ||
|
9003105093
|
9003105093
90031-05093 Bolt(For Alternator) |
90031-05093 |
US $3.40 |
||
|
9003105126
|
9003105126
90031-05126 New Genuine Part |
90031-05126 |
US $4.30 |
||
|
9003201158
|
9003201158
90032-01158
New Genuine Part
|
90032-01158 |
— | ||
|
9003560051
|
9003560051
90035-60051 New Genuine Part |
90035-60051 |
US $4.80 |
||
|
9009900197
|
9009900197
90099-00197 Screw |
90099-00197 |
US $0.28 |
||
|
9009900268
|
9009900268
90099-00268
Screw(For Alternator Drive End Frame)
|
90099-00268 |
— | ||
|
9009904539
|
9009904539
90099-04539 BOLT |
90099-04539 |
US $1.42 |
||
|
9009905171
|
9009905171
90099-05171 Nut(For Alternator Pulley) |
90099-05171 |
US $1.12 |
||
|
9009905284
|
9009905284
90099-05284 NUT |
90099-05284 |
US $0.82 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
||
