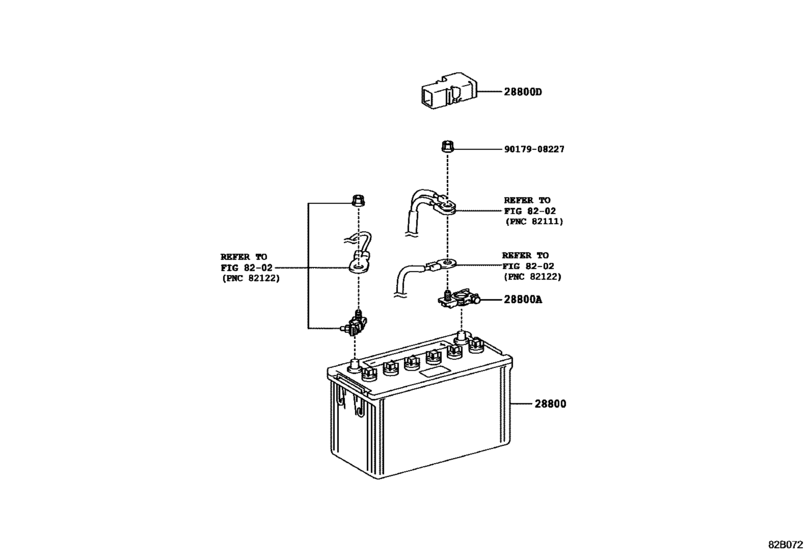

Battery & Battery Cable ([12.2016 - ] (1612- )) Diagram Toyota DYNA/ TOYOACE
- Year
- 2009 - 2018
- Sales region
- General
- Frame
- WU342
- ENGINE
- W04D
- DESTINATION
- IDN
- DECK
- T3
- From
- 12.2009
- Loading Capacity
- 75T
- Driver's Position
- RHD
- Fuel Induction
- DCRTR
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28800
|
28800
28800-06030
Battery
[12.2009 - 12.2016] W04D..WU302,342..DCRTP,DCRTR 55D26R |
28800-06030 |
— | ||
|
28800
|
28800
28800-0U010
Battery
[12.2016 -] W04D..WU302,342..IV3..T3 95E41R |
28800-0U010 |
— | ||
|
28800A
|
28800A
90982-05061 Terminal, Battery Positive[12.2016 -] W04D..WU302,342..IV3..T3 |
90982-05061 |
from US $15.23 |
||
|
28800A
|
28800A
90982-05062 Terminal, Battery Positive[12.2009 - 12.2016] W04D..WU302,342..DCRTP,DCRTR |
90982-05062 |
from US $15.23 |
||
|
28800D
|
28800D
82821-37071 Cover, Connector(For Battery Terminal)[12.2016 -] W04D..WU302,342..IV3..T3 |
82821-37071 |
US $13.62 |
||
|
9017908227
|
9017908227
90179-08227 New Genuine Part |
90179-08227 |
US $1.43 |
